*SpOrd* Aiphone IX Series EA IP Colour Video Door Station, Plastic, Surface Mount

AI-IX-EA
AVAILABLE TO ORDER
*SpOrd* Aiphone IX Series EA IP Colour Video Door Station, Plastic, Surface Mount
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

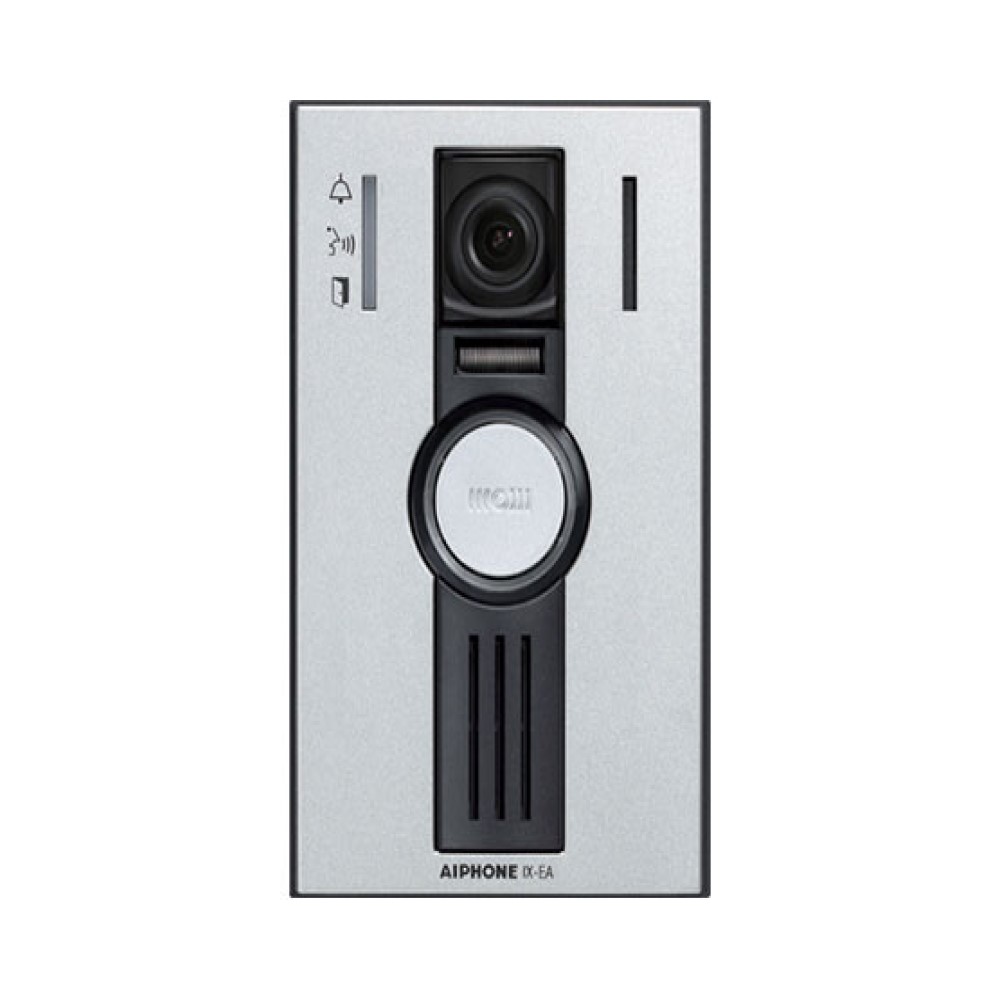

The AI-IX-EA is a one gang surface mount, IP Video Intercom. It is SIP compliant, ONVIF Profile S compliant, and is capable of streaming video through ONVIF and RTSP. The AI-IX-EA is compatible with all IX and IXG series devices.

  • Power Source: PoE (IEEE 802.3af class 0)
  • Power Draw: 5.18W max
  • Camera: CMOS 1.23 megapixel
  • Min. illumination: 5 lux
  • Audio Codec: G.711, G.722
  • Video Codec: H.264/AVC, Motion JPEG
  • Volume: 73dB-96dB
  • Port Security: IEEE 802.1X
  • Operating Temp: -10 - 60C
  • Dimensions: H 160 mm W 100 mm D 44 mm

  • SIP compliant
  • 802.3af PoE compliant
  • White LED for low light illumination
  • ONVIF Profile S compliant
  • Slot for microSD card (not provided by Aiphone)
  • Weather resistant
  • 1 contact output
  • 1 trigger input
  • 600 audio output
