AXIS FA1125 Pinhole Camera Sensor Unit to suit FA Main Un 1080p, WDR, 8m Cable, 3.7mm

AXIS-0914-001
AVAILABLE TO ORDER
AXIS FA1125 Pinhole Camera Sensor Unit to suit FA Main Un 1080p, WDR, 8m Cable, 3.7mm
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

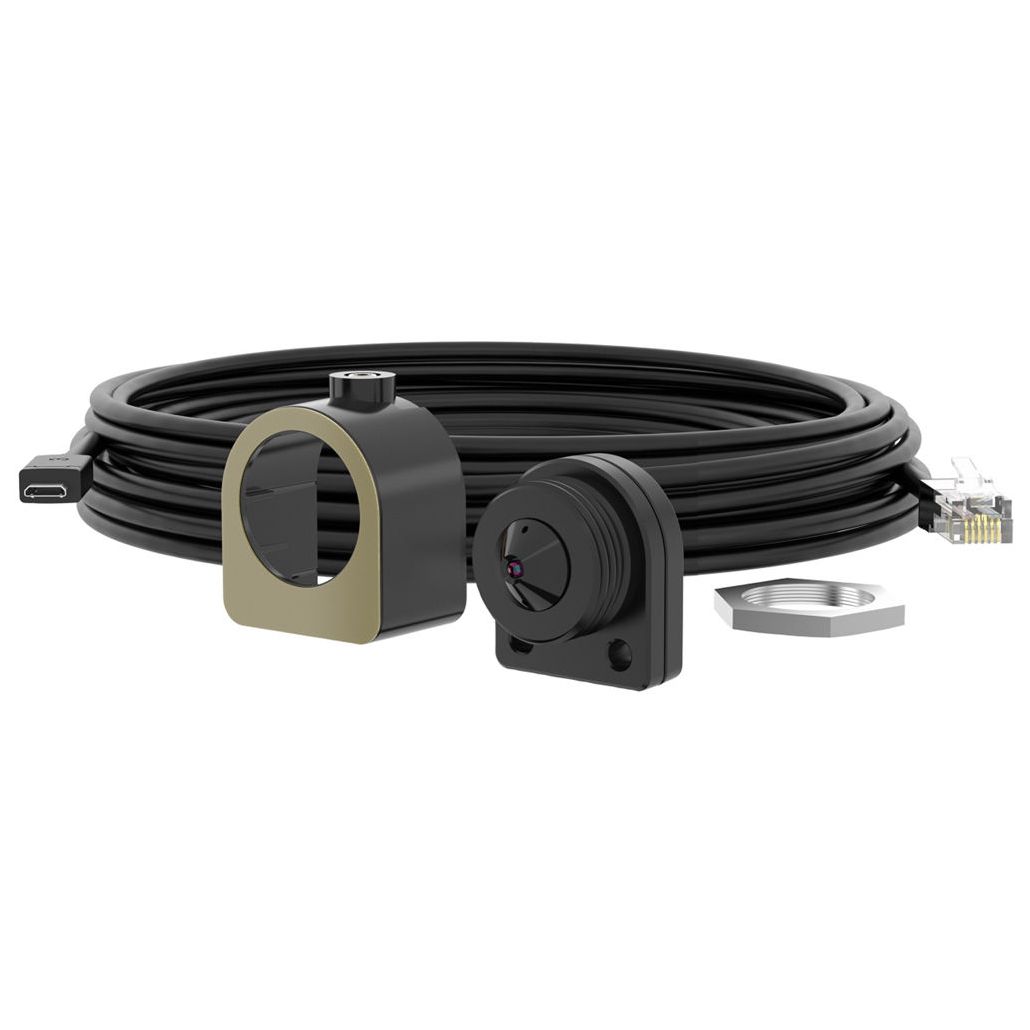

The AXIS FA1125 is ideal for extremely discreet indoor surveillance applications in stores and banks, and when integrated in machines. It can be installed in tight places and flush-mounted in a wall, ceiling or metal panel with only a pinhole visible for the lens. For use with an AXIS FA Main Unit, the AXIS FA1125 provides a 1080p resolution and a 91 degree horizontal field of view. The AXIS FA1125 uses Forensic WDR (wide dynamic range) that is tuned for motion. The unit comes with a mounting bracket and an 8m cable for connection to a main unit.

  • 1/3" (effective) progressive scan RGB CMOS
  • Fixed iris, fixed focus, pinhole 3.7mm, F2.5
  • Horizontal field of view: 91 degrees
  • Vertical field of view: 45 degrees
  • 1920 x 1080
  • Colour: 0.25 lux
  • Aluminium and plastic casing

  • Flexible, extremely discreet design for indoor use
  • Pinhole lens with 1080p resolution
  • Wide 91 degree horizontal field of view
  • Forensic WDR
