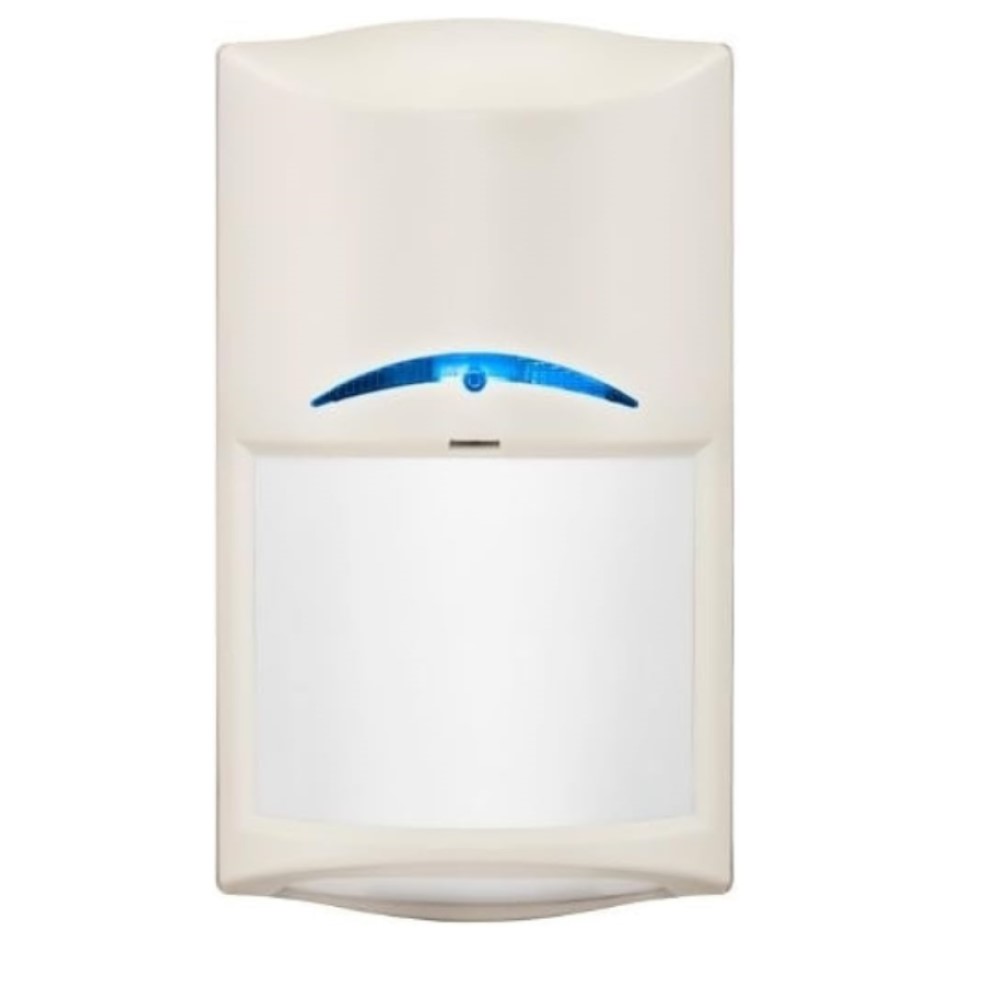

The Bosch BOS-CDL2-A15G TriTech motion detectors are designed to ensure reliable catch performance and false alarm immunity in commercial applications. Commercial Series motion detectors use a combination of passive infrared (PIR) and microwave Doppler radar detection technologies with advanced signal processing. Features such as integrated, selectable end-of-line resistors, a self-locking enclosure with integrated bubble level, and removable lift gate style terminal strip make installation of Commercial Series detectors faster by up to 45%, easier and more reliable.

• Protected, sealed optics and electronics: The optics and electronics are assembled into the front enclosure and sealed with a protective cover to prevent damage during installation. The sealed optical chamber also prevents drafts and insects from affecting the detector. Cloak and Camouflage Detection Technology Cloak and Camouflage Detection Technology (C2DT) maximizes catch performance against intruders attempting to cover their infrared signal.
• Wall-to-Wall coverage: A user-selectable integrated lookdown zone and coverage range of 15 m x 15 m provide wall-to-wall coverage.
• RFI and Impact Immunity
• Mounting: The recommended mounting height is 2.3 m to 2.75 m
