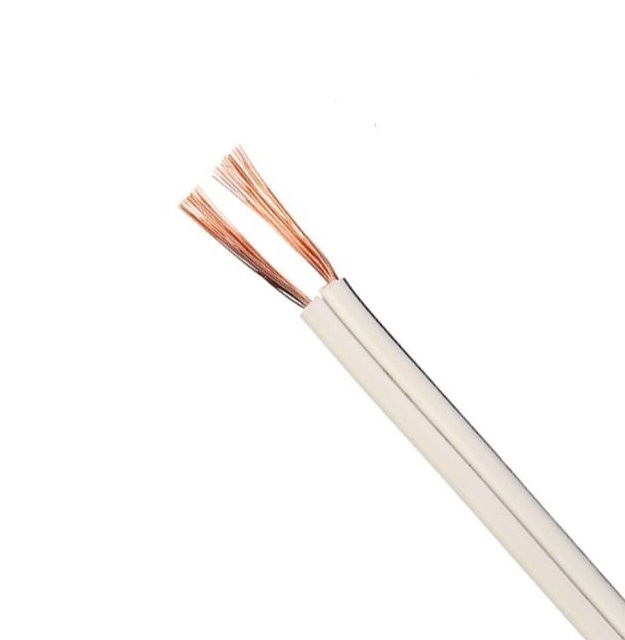

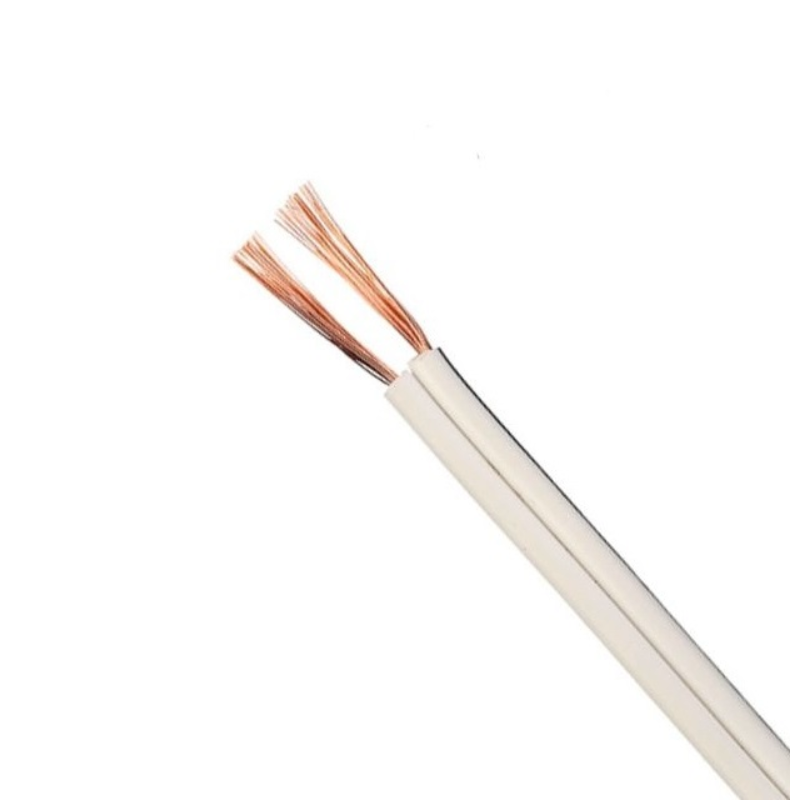

CAB-2C14-500BW is a Figure-8 style low-voltage cable consisting of 2 x 24/0.20 mm stranded copper conductors in brown/white colour coding. It is commonly used for security systems, alarms, access control, intercoms, and general low-voltage wiring.

• Figure-8 parallel webbed design
• 24 strands x 0.20mm copper per conductor
• Nominal conductor area: 0.75mm2
• Current rating: approx. 7.5 A
• V75 PVC insulation for durability and flexibility
• Insulation thickness: 0.3mm
• Outer dimensions: approx. 2.40 x 5.40mm
• Brown/White conductor identification
