CAT6A Cable, 305m, Pull Box with Reel, Grey

CAB-CAT6AG-305
AVAILABLE TO ORDER
CAT6A Cable, 305m, Pull Box with Reel, Grey
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mount Waverley - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

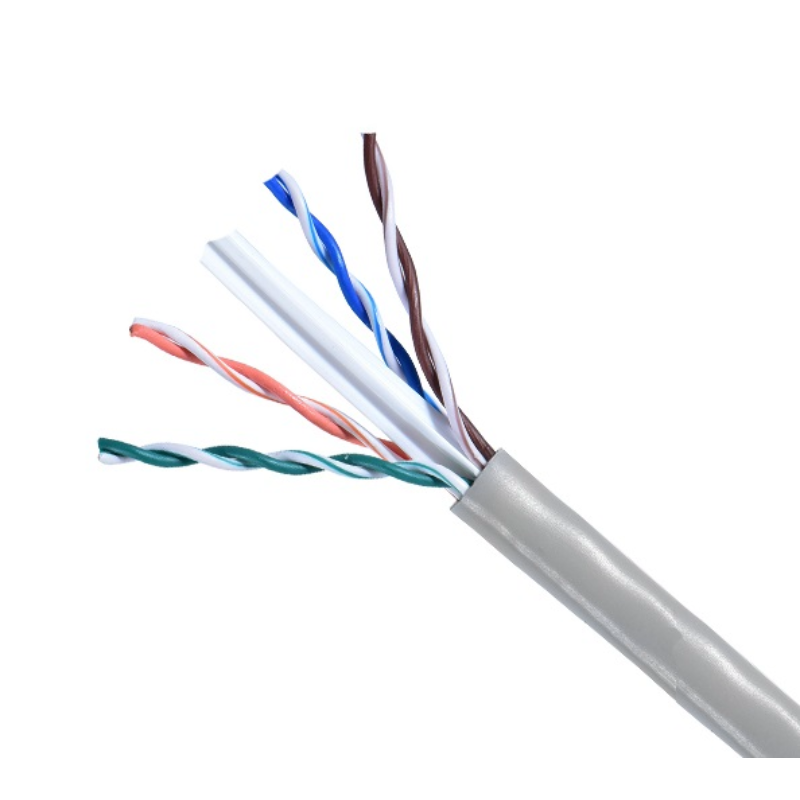

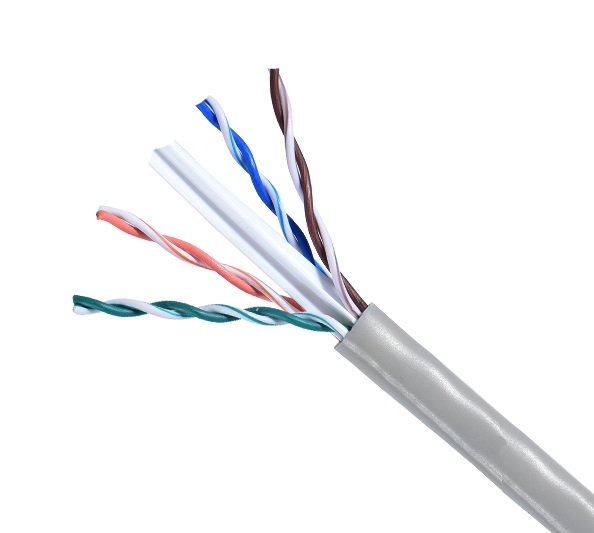

CAB-CAT6AG-305 is a Cat6A U/UTP solid cable supplied in a 305m LSZH (Low-Smoke Zero-Halogen) box.
It uses 23AWG bare-copper conductors, includes an internal pair divider for improved alien-crosstalk performance, and supports 10Gbps (10GBASE-T) operation at 500MHz.
The LSZH jacket makes it suitable for indoor installations where low-smoke, low-toxicity materials are required.

  • Cable Type: UTP
  • Jacket Material: LSZH
  • Conductor Material: Bare Copper Cable
  • Insulation Material: HDPE
  • Cable Length: 305m
  • Cable Weight: 15.2kg/305m
  • Cable Diameter: 0.57
  • Cable Gauge: 23AWG
  • Jacket Thickness: 0.70 +- 0.05mm
  • Dielectric Strength (Max.): DC 1000V 1min No Breakdown
  • Operating Frequency: 500MHz
  • Flame Test Method: IEC60332-1-2
  • Installation Temperature: -20 - +60 degrees Celsius
  • Operating Temperature: -40 - +75 degrees Celsius
  • Packaging: Reel in Box

  • 305m Cat6A U/UTP reel in a box 500MHz
  • 100% bare copper cable
  • 23AWG x 4P
  • LSZH Jacket
  • Integrated pair separator
  • Internal strength member
  • ROHS, RCM and REACH compliant
  • GECA Claim Authenticated (PVC free)
