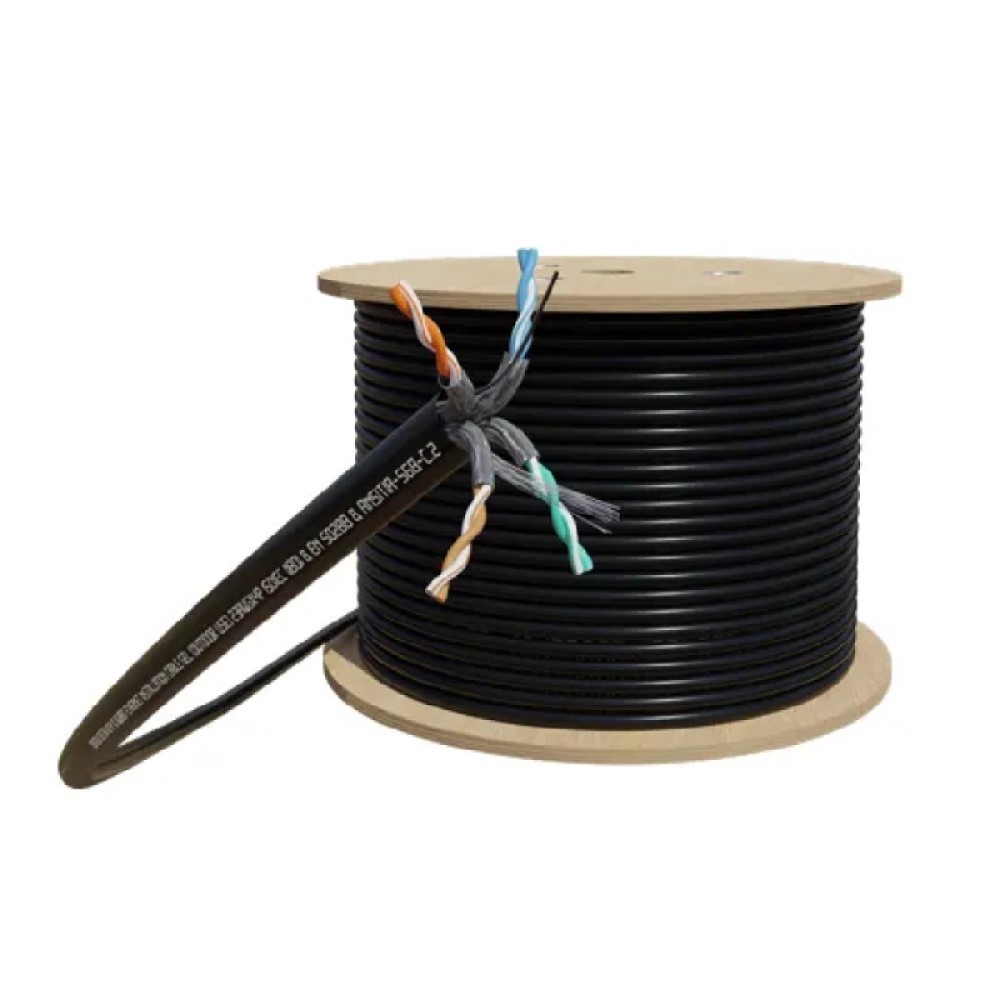

CAT6A Cable, Gel Filled, 305m, Wooden Reel, U/FTP, Black

CAB-CAT6AGS-305
AVAILABLE TO ORDER
CAT6A Cable, Gel Filled, 305m, Wooden Reel, U/FTP, Black
Warehouse Status
Loganholme - QLD
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

The CAB-CAT6AGS-305 is a premium Cat6A underground network cable designed for high-speed data transmission in harsh environments. This cable is compliant with AS/CA S008:2010 standards and is suitable for 4K UHD applications.

  • Cable Type: U/FTP
  • Jacket Material: PE
  • Conductor Material: Bare Copper Cable
  • Insulation Material: Skin Foam Skin PE
  • Cable Length: 305m
  • Cable Weight: 15kg/305m
  • Cable Diameter: 0.56
  • Cable Gauge: 23AWG
  • Jacket Thickness: 0.60 plus or minus 0.05mm
  • DC Resistance Unbalanced (Max.): in pair less than or equal to 2.0%, pair to pair less than or equal to 4.0%
  • DC Resistance (Max.): less than or equal to 9.38 Omega/100m
  • Dielectric Strength (Max.): DC 1000V 1min No Breakdown
  • Mutual Capacitance at Frequency: less than or equal to 5.8nF/100m
  • NVP: 74%
  • Operating Frequency: 500MHz
  • Flame Test Method: No
  • Installation Temperature: -20 ~ +60 degrees Celsius
  • Operating Temperature: -40 ~ +75 degrees Celsius
  • Packaging: Wooden Drum

  • 10 Gigabit Ethernet support with up to 500 MHz bandwidth
  • Gel-filled construction for moisture resistance, ideal for underground installations
  • U/FTP shielding with individually foil-wrapped pairs to reduce interference
  • 23 AWG solid bare copper conductors for reliable performance
  • UV-stabilized PE jacket for outdoor durability
