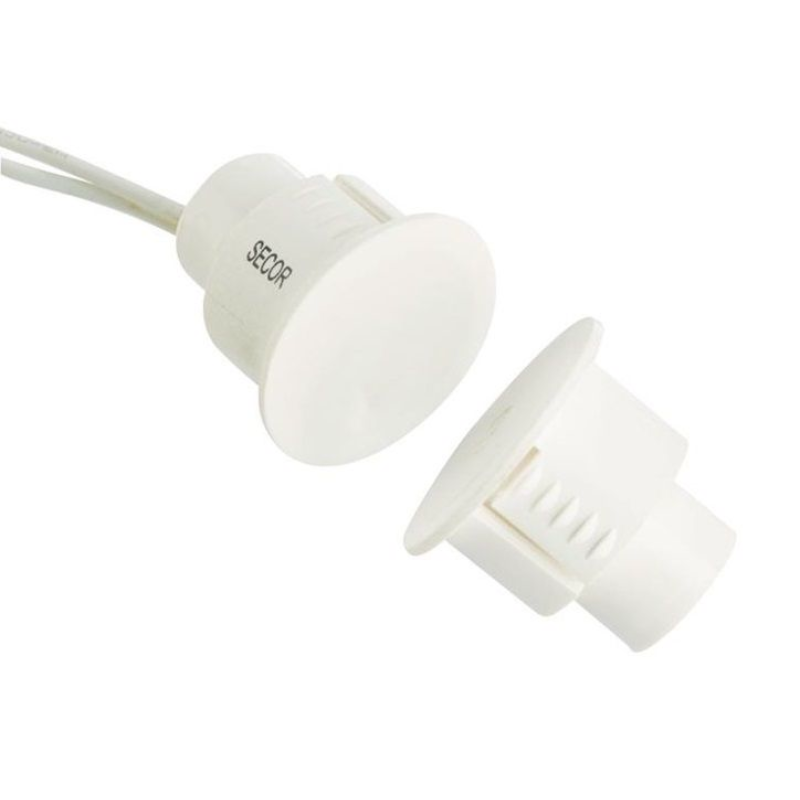

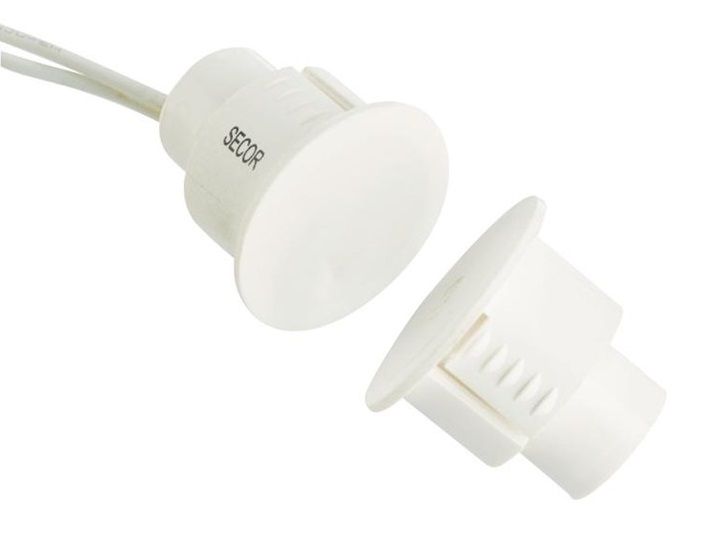

Recessed Steel Door Reed Switch, Flush Mount, 19mm, White

CSD-2002
AVAILABLE TO ORDER
Recessed Steel Door Reed Switch, Flush Mount, 19mm, White
Warehouse Status
Seven Hills - NSW
IN STOCK
Waterloo - NSW
IN STOCK
Fyshwick - ACT
IN STOCK
Loganholme - QLD
IN STOCK
Dudley Park - SA
IN STOCK
Tulla Central Warehouse- VIC
IN STOCK
Mulgrave - VIC
IN STOCK
Balcatta - WA
IN STOCK
Canning Vale - WA
IN STOCK

Magnetic reed switches use no glue or screws to mount. Small protrusions hold the contact in place. Use indoors or outdoors for an attractive recessed installation.

  • Contact: NC, SPST
  • Rating (max): 10W
  • Voltage (max): 100VDC
  • Current (max): 500mA
  • Reed: Epoxy sealed
  • Dimensions: 21 x 19mm
  • Colour: White
  • Gap: 25 - 30mm

  • Stocked in white, other colours available upon request
