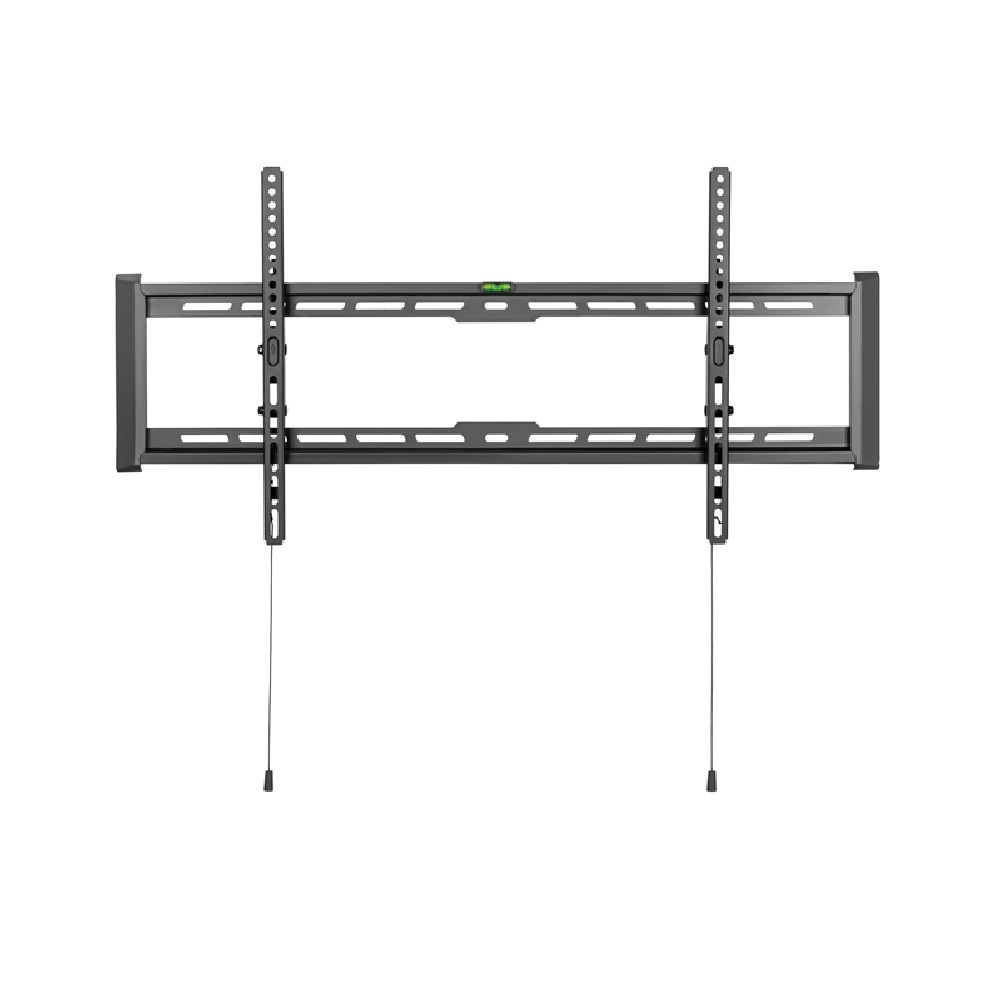

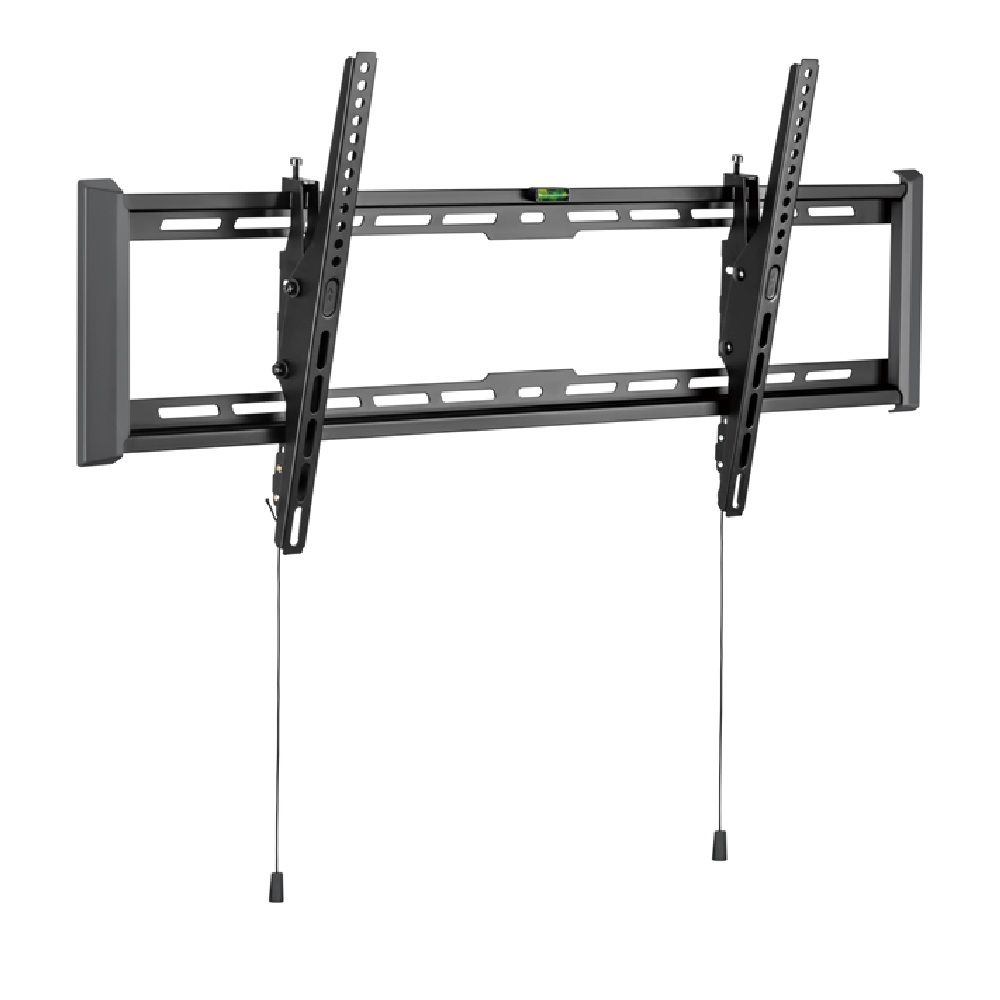

Plasma LCD TV Wall Mount Ultra Slim Bracket, 43-90 inch, up to 75Kg

CSD-BRK-LP77-48T
AVAILABLE TO ORDER
Plasma LCD TV Wall Mount Ultra Slim Bracket, 43-90 inch, up to 75Kg
Warehouse Status
Seven Hills - NSW
IN STOCK
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER
Canning Vale - WA
IN STOCK

The CSD-BRK-LP77-48T bracket is an ultra-slim and heavy-duty TV wall mount that is an ideal solution for most 43" to 90" flat panel TV up to 75kgs. This bracket is a VESA compatible with 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400.

  • Product Category: Tilt TV Wall Mount
  • Rank: Standard
  • Material: Steel, Plastic
  • Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet, Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet, Wall Plate THK=0.059" cold-rolled sheet)
  • Surface Finish: Powder Coating
  • Colour: Matte Black
  • Dimensions: 47x970x430mm (1.9"x38.2"x16.9")
  • Fit Screen Size: 43"-90"
  • Fit Curved TV: Yes
  • Mounting Hole Pattern: VESA and Universal
  • VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
  • Max. Mounting Hole: 868x405
  • Weight Capacity: 75kg (165lbs)
  • Strength Tested: 4 Times Approved
  • Profile: 47mm (1.9")
  • Screen Level: 8mm
  • Tilt Range: +4 degree ~ -10 degree
  • Screen Level: 8mm
  • Screen Freely Tilting: No
  • Installation: Solid Wall, Double Stud(406mm/450mm/600mm)
  • Panel Type: Detachable Panel
  • Wall Plate Type: Fixed Wall Plate
  • Direction Indicator: Yes
  • Bubble Level: Hook-on Bubble Level (Included in Components Package)
  • Accessory Kit Package: Normal/Ziplock Polybag, Compartment Polybag

  • Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
  • Heavy-Duty Construction: provides extra strength and durability
  • Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
  • Decorative Covers: for a more elegant look
  • Ultra-slim design
  • Leveling adjustments: allow TV to be perfectly positioned after hanging
  • Magnetic Strap End: hides itself when not in use
  • Bubble level included
