Aten USB VGA KVM Console Extender, 1280,1024 @ 60Hz, 150m

CSD-CE-700A
AVAILABLE TO ORDER
Aten USB VGA KVM Console Extender, 1280,1024 @ 60Hz, 150m
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

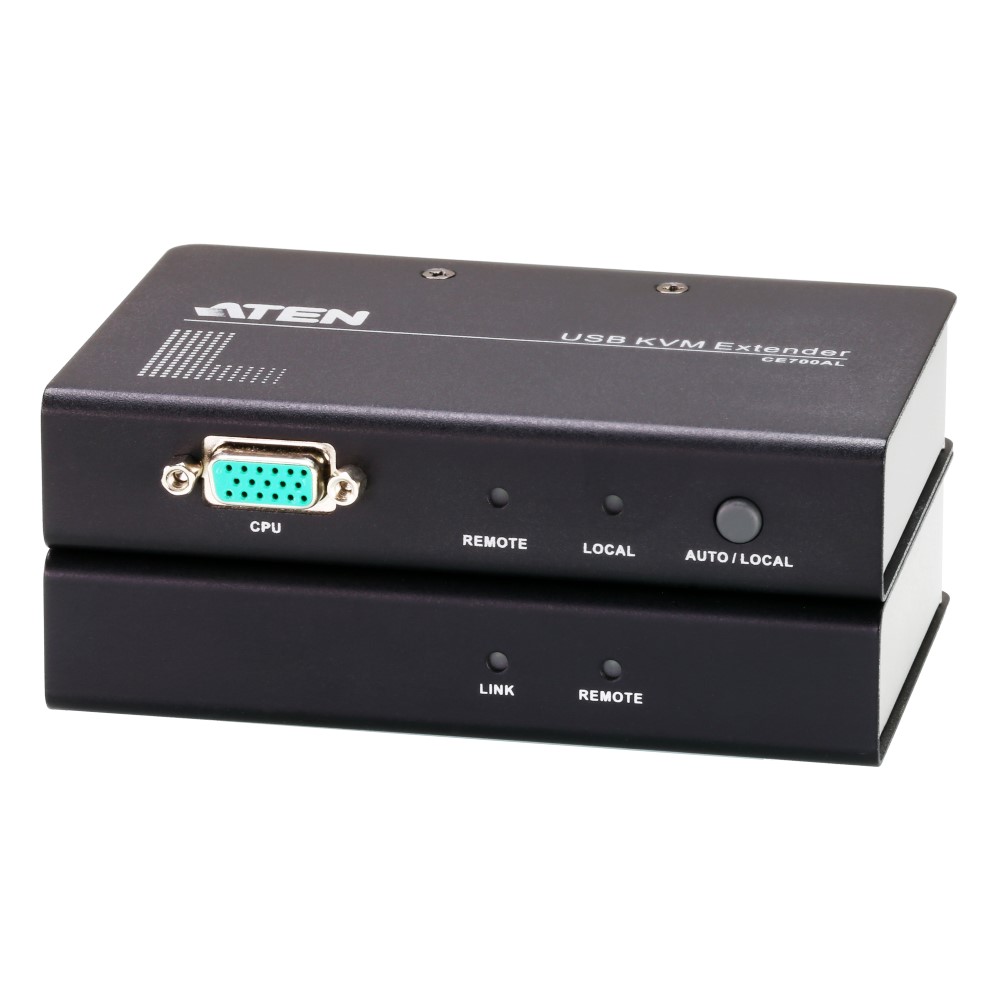

The CSD-CE-700A is a USB VGA KVM extender kit from ATEN, designed to extend keyboard, video, and mouse signals up to 150 meters over a single Cat5e cable. This extender kit is a robust solution for managing systems remotely without compromising on performance or video clarity.

  • Function: extends a USB keyboard, monitor, and mouse setup from a computer to a remote location up to 150 meters away using a standard Cat5e cable
  • Connectivity: supports USB and VGA interfaces with dual console operation, allowing control from both local and remote consoles
  • Video quality: delivers high-resolution video up to 1920x1200@60Hz (30m), 1600x1200@60Hz (100m), and 1280x1024@60Hz (150m)
  • Protection: built-in 8KV/15KV ESD and 2KV surge protection for enhanced reliability and safety
  • Smart features: includes automatic gain control to adjust signal strength based on distance, ensuring optimal image quality
  • Use cases: ideal for server rooms, data centres, or any environment where remote access to a computer system is needed
