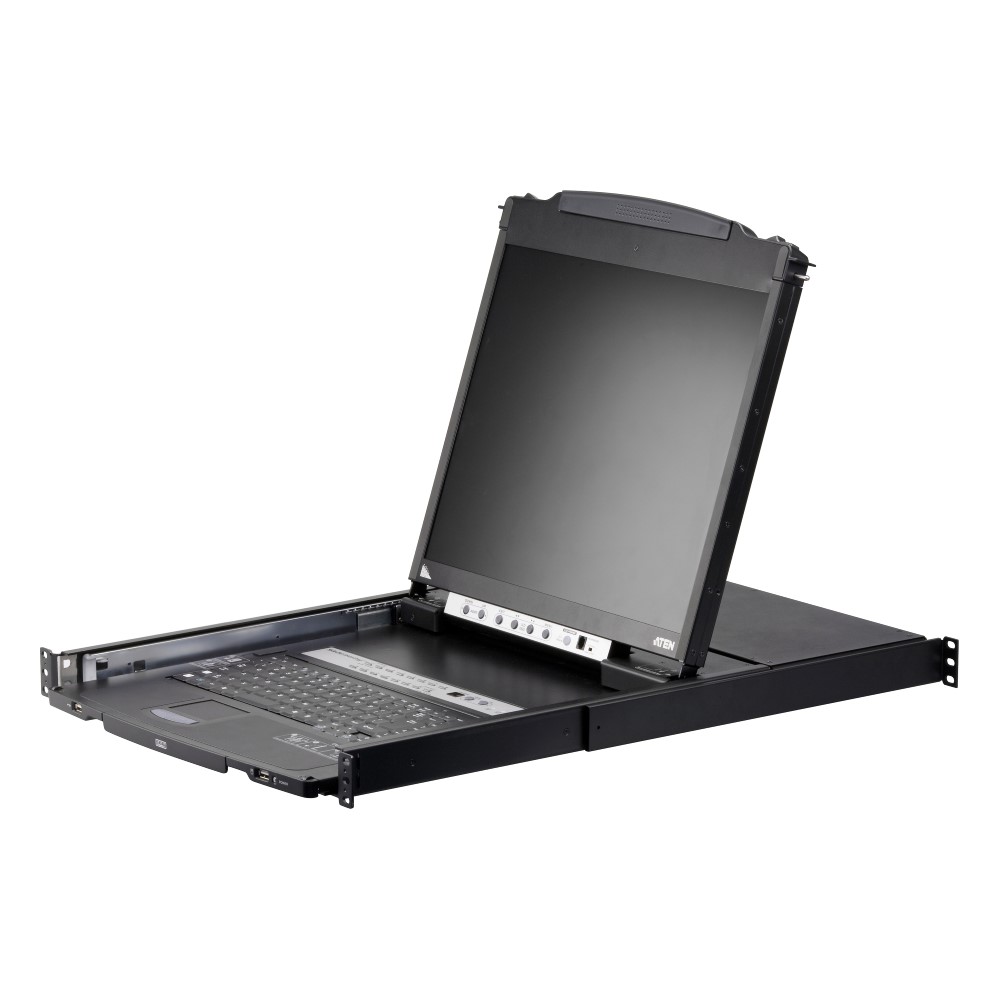

The CSD-CL-5816NA is a 16-port dual rail LCD KVM switch from ATEN, designed for Centralised control of multiple computers via PS/2 or USB interfaces, with a built-in 19" LED-backlit display and independent sliding console. This unit is ideal for IT professionals managing large server farms or data centres, offering efficient, space-saving access to multiple systems from a single location.

• Integrated console: features a 19" LED-backlit LCD monitor, keyboard, and touchpad in a dual rail slide away design, allowing the screen and keyboard to slide independently for space-saving operation
• Connectivity: supports PS/2 and USB connections, enabling flexible control of up to 16 computers directly
• Scalability: expandable to control up to 256 computers by daisy-chaining additional KVM switches

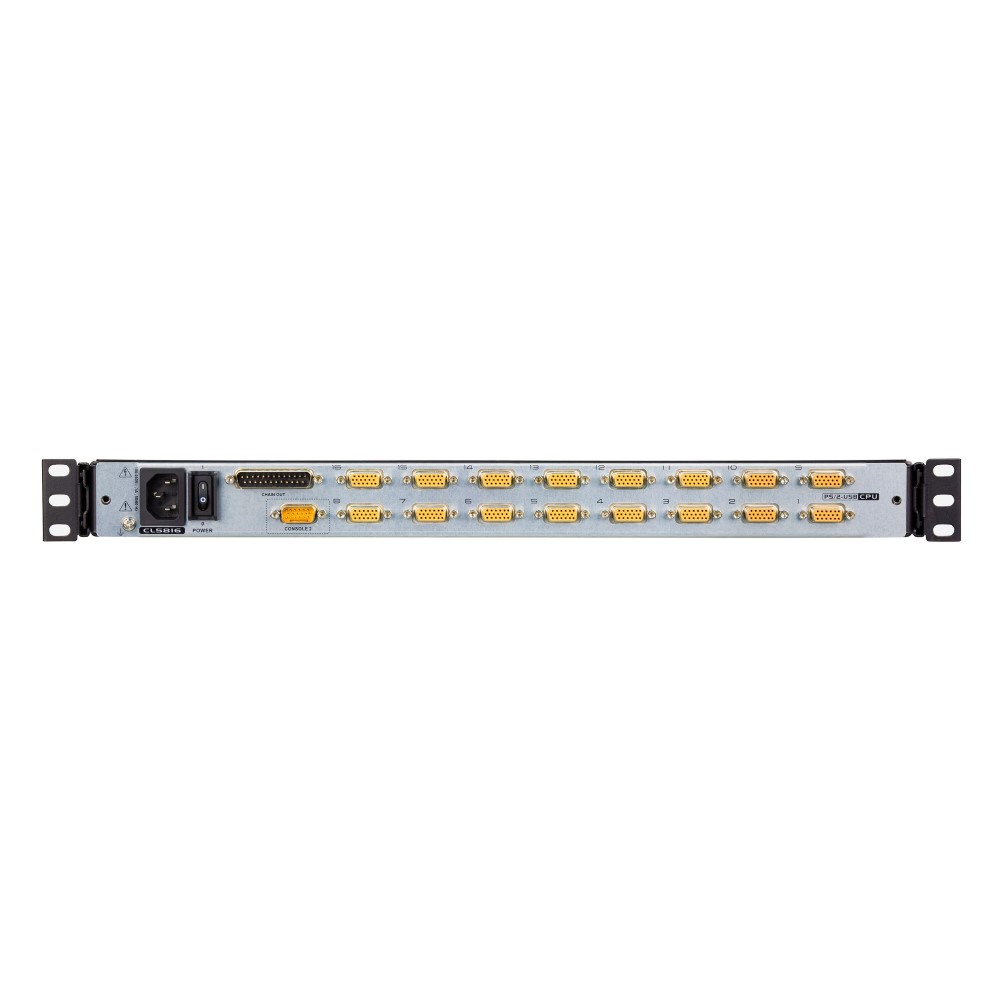

• Dual console access: includes an extra console port on the rear panel for remote management via an external console
• User friendly design: the keyboard/touchpad module can be hidden when not in use, while the LCD monitor rotates back for streamlined rack integration
• Video resolution: supports up to 1280x1024@75Hz, suitable for most server and workstation environments

Datasheets

• CSD-CL-5816NA Datasheet.pdf
