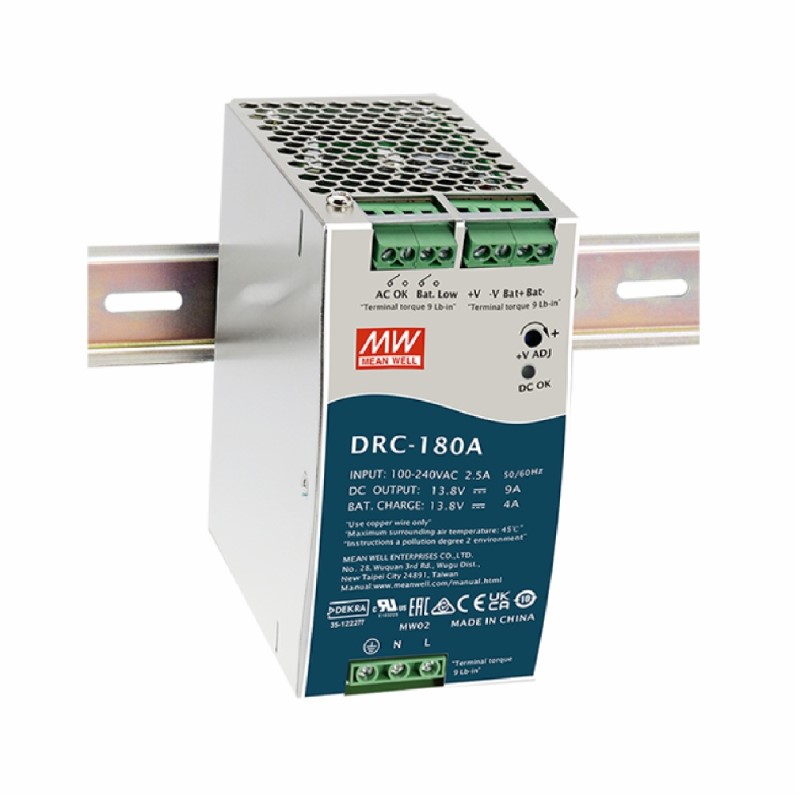

Meanwell 13.8vDC 9A (180W) Single Output DIN Rail Power Supply with Battery Charger

CSD-DRC-180A
AVAILABLE TO ORDER
Meanwell 13.8vDC 9A (180W) Single Output DIN Rail Power Supply with Battery Charger

The CSD-DRC-180A is a 180W DIN rail-mounted AC/DC power supply from MEAN WELL with integrated UPS functionality. It delivers 13.8VDC at 9A for system loads and includes a 4A battery charger output. Designed for 12V systems, it automatically switches to battery backup during AC power failure and recharges the battery when mains power returns. With wide input range (90-264VAC), alarm signals for AC OK and battery low, and compact design, it's ideal for industrial and security applications

  • Input Type: Single Phase
  • Input Voltage: 90 ~ 264VAC
  • Input Current: 1.5A / 230VAC
  • Output Voltage: 13.8V
  • Output Current: 9A
  • Rated Output Power: 179.4W
  • Output Type: Single
  • Output Voltage Adjustment: 12 ~ 15V
  • Charge output A: 4A
  • Auxiliary Power: N/A
  • Alarm Signals: AC OK, Battery Low
  • Remote Functions: N/A
  • Dimming / Control Options: N/A
  • Temperature Compensation: N/A
  • Prescribed Electrical Item: No
  • SELV: Yes
  • Efficiency: 88.00%
  • Operating Temperature Range: -20 ~ +70 degree C (Refer to "Derating Curve" in Data Sheet)
  • Warranty: 3 Years
  • Approvals: CE, CB, RCM
  • IP Rating / Environmental Protection: Less than IP65
  • Dimensions: 63x125.2x115mm (WxHxD)
  • Recommended for New Designs: Yes

  • System Output: 13.8VDC at 9A for powering devices
  • Battery Charger Output: 13.8VDC at 4A for charging 12V lead-acid batteries
  • UPS Functionality: Automatically switches to battery during AC failure
  • Wide Input Range: 90-264VAC or 127-370VDC
  • Efficiency: Up to 88%
  • Mounting: DIN rail TS-35/7.5 or 15
  • Cooling: Fanless design for silent operation
