Meanwell 13.8vDC 4.3A (60W) Single Output DIN Rail Power Supply

CSD-DRC-60A
AVAILABLE TO ORDER
Meanwell 13.8vDC 4.3A (60W) Single Output DIN Rail Power Supply
Warehouse Status
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

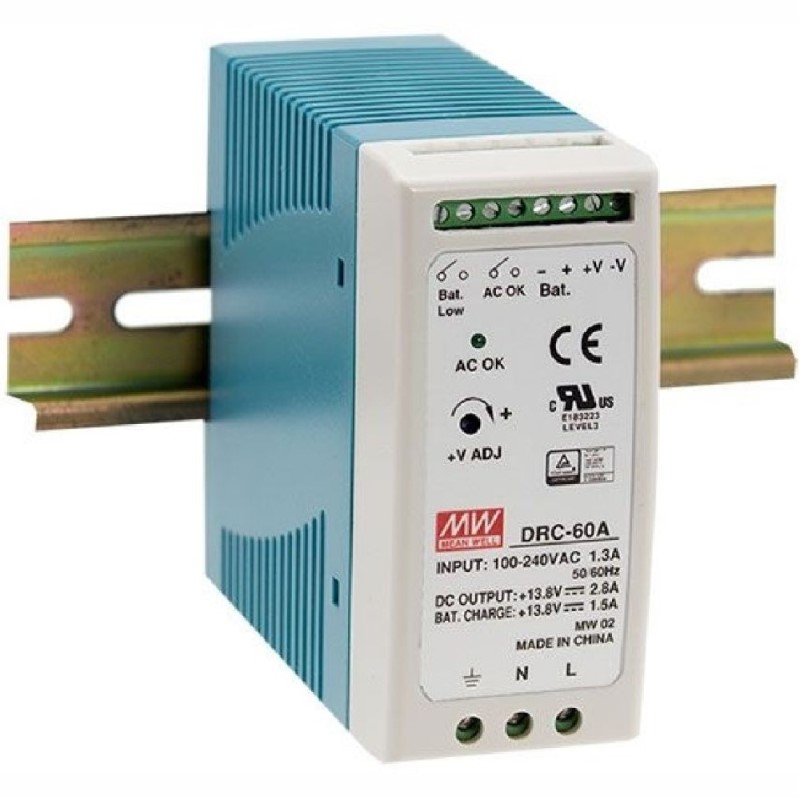

The CSD-DRC-60A is a 60W DIN rail-mounted AC/DC power supply from MEAN WELL with integrated UPS functionality. It provides a 13.8VDC output at 2.8A for system loads and includes a 1.5A battery charger for 12V lead-acid batteries. Designed for industrial and security applications, it features automatic battery backup during AC failure, wide input range (90-264VAC), fanless operation, and alarm signals for AC OK and battery low status.

  • Input Type: Single Phase
  • Input Voltage: 90 ~ 264VAC
  • Input Current: 0.8A / 230VAC
  • Output Voltage: 13.8V
  • Output Current: 2.8A
  • Rated Output Power: 59.34W
  • Output Type: Single
  • Output Voltage Adjustment: 12 ~ 15V
  • Charge output A: 1.5A
  • Auxiliary Power: N/A
  • Alarm Signals: AC OK, Battery Low
  • Remote Functions: N/A
  • Dimming / Control Options: N/A
  • Temperature Compensation: N/A
  • Prescribed Electrical Item: No
  • SELV: Yes
  • Efficiency: 86.00%
  • Operating Temperature Range: -30 ~ +70 Degree C (Refer to "Derating Curve" in Data Sheet)
  • Warranty: 3 Years
  • Approvals: CE, CB, RCM
  • IP Rating / Environmental Protection: Less than IP65
  • Dimensions: 40x90x100mm (WxHxD)
  • Recommended for New Designs: Yes

  • System Output: 13.8VDC at 2.8A for powering devices
  • Battery Charger Output: 13.8VDC at 1.5A for charging 12V lead-acid batteries
  • UPS Functionality: Automatically switches to battery during AC failure
  • Wide Input Range: 90-264VAC or 127-370VDC
  • Efficiency: Up to 85%
  • Mounting: DIN rail TS-35/7.5 or 15
  • Cooling: Fanless design for silent operation
  • Compact Size: Ideal for space-constrained control panels
  • Protections: Overload, short circuit, overvoltage, battery reverse polarity
  • Signals: Relay contacts for AC OK and Battery Low status
