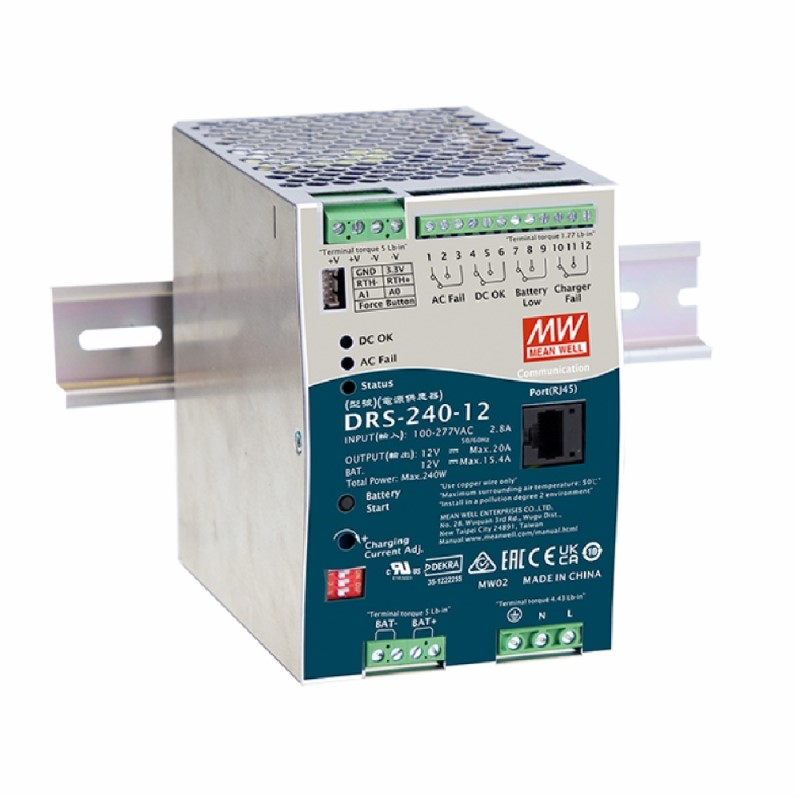

Meanwell 12vDC 20A (240W) Universal UPS DIN Rail Power Supply

CSD-DRS-240-12
AVAILABLE TO ORDER
Meanwell 12vDC 20A (240W) Universal UPS DIN Rail Power Supply
Warehouse Status
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

The CSD-DRS-240-12 is a 240W DIN rail-mounted AC/DC power supply from MEAN WELL with integrated UPS functionality. It delivers 12VDC at 20A for system loads and includes a 15.4A adjustable charger output for 12V lead-acid or lithium-ion batteries. Designed for industrial and security applications, it features wide input range (90-305VAC), programmable charging curves, alarm signals (AC Fail, Battery Low, Charger Fail, DC OK), and optional MODBus or CANBus interfaces for remote monitoring.

  • Input Type: Single Phase
  • Input Voltage: 90 ~ 305VAC
  • Input Current: 1.4A / 230VAC
  • Output Voltage: 12V
  • Output Current: 20A
  • Rated Output Power: Combined power on all Channels must not exceed 240W, load has priority. 275W peak capability within 5s.
  • Output Type: Single
  • Charge output A: 15.4A (20%~100% adjustment range by VR)
  • Alarm Signals: Battery Low, Charger Fail, DC OK
  • Remote Functions: Status Monitoring
  • Dimming / Control Options: N/A
  • Temperature Compensation: N/A
  • Prescribed Electrical Item: No
  • SELV: Yes
  • Efficiency: 90.00%
  • Operating Temperature Range: -30 ~ +70 Degree C (Refer to "Derating Curve" in Data Sheet)
  • Warranty: 3 Years
  • Approvals: CE, CB, RCM
  • IP Rating / Environmental Protection: Less than IP65
  • Dimensions: 85.5x125.2x129.2mm (WxHxD)
  • Recommended for New Designs: Yes

  • System Output: 12VDC at 20A for powering devices
  • Battery Charger Output: Adjustable up to 15.4A for 12V lead-acid or lithium-ion batteries
  • UPS Functionality: Seamless switch to battery during AC failure
  • Wide Input Range: 90-305VAC or 127-431VDC
  • Efficiency: Up to 93%
  • Charging Curves: Programmable for different battery types
  • Communication Options: Optional MODBus or CANBus interface for remote monitoring and control
  • Alarm Signals: Relay contacts for AC Fail, Battery Low, Charger Fail, and DC OK
  • Mounting: DIN rail TS-35/7.5 or 15
  • Cooling: Fanless design for quiet operation
