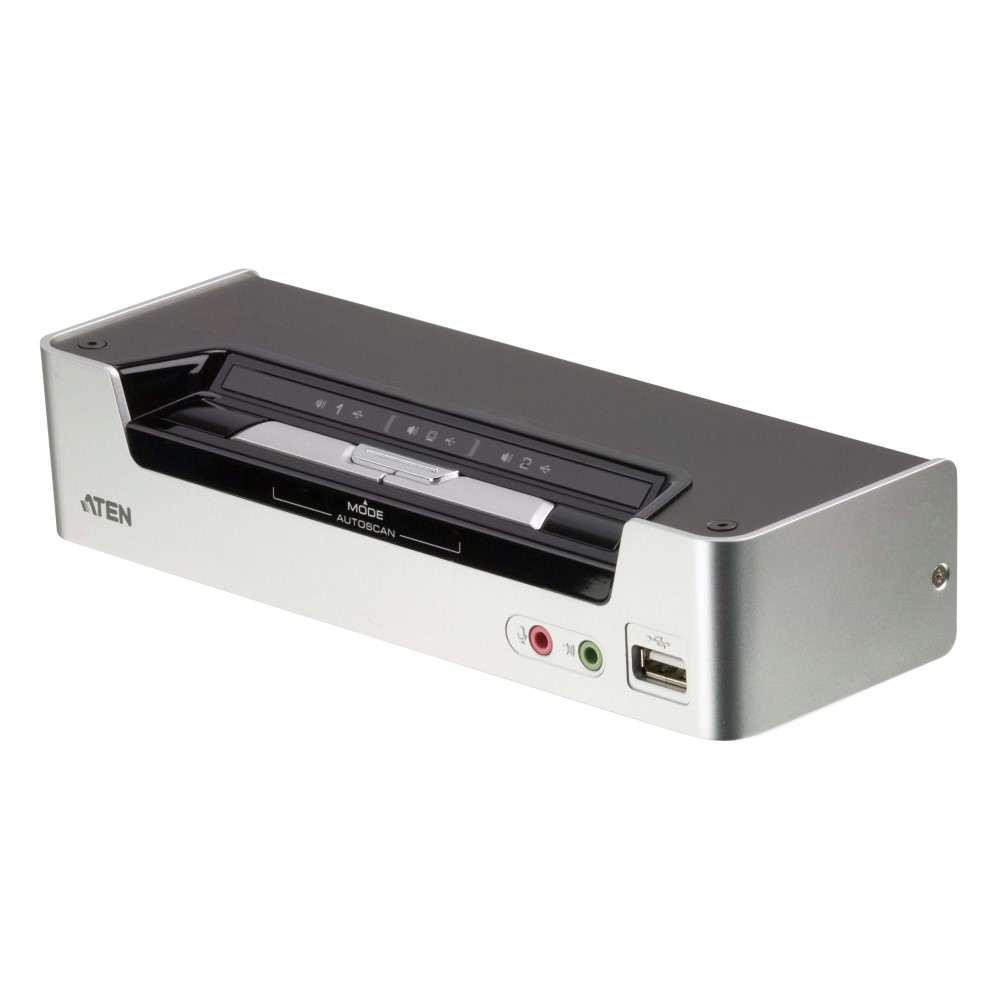

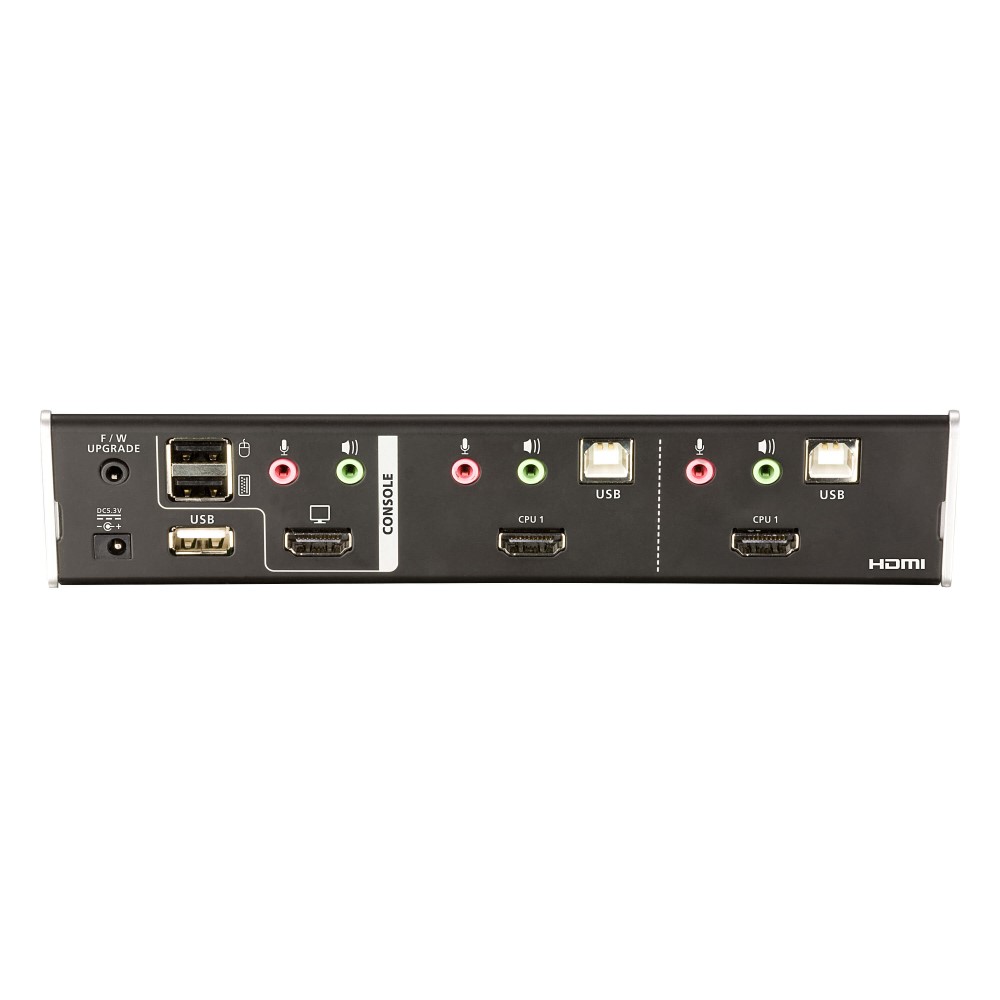

The CSD-KVA-CS1792 is a 2-port USB HDMI KVMP switch from ATEN, designed to control two HDMI-enabled computers or devices from a single console while sharing USB peripherals and audio. This switch is ideal for multimedia setups, gaming stations, or SOHO environments where high-quality video, audio, and peripheral sharing are essential.

• Dual HDMI switching: seamlessly switches between two HDMI-interface computers or devices using one keyboard, monitor, and mouse
• USB Hub integration: includes a 2-port USB 2.0 hub, allowing shared access to peripherals like printers, scanners, or external drives
• Video support: delivers superior video quality up to 1920x1200 (DVI) and supports 480i, 480p, 720p, 1080i, and 1080p HDTV resolutions
• Audio functionality: supports Dolby True HD and DTS HD Master Audio, ensuring rich, high-definition sound
• Video DynaSync: stores EDID data to optimise display resolution and prevent boot-up display issues
• Cross platform compatibility: works with Windows, Linux, and Mac systems
• Independent switching: allows separate switching of KVM, USB peripheral, and audio focus via front panel buttons or hotkeys
• Power detection: automatically switches to the next powered-on computer if one is turned off

Datasheets

• CSD-KVA-CS1792 Datasheet.pdf
