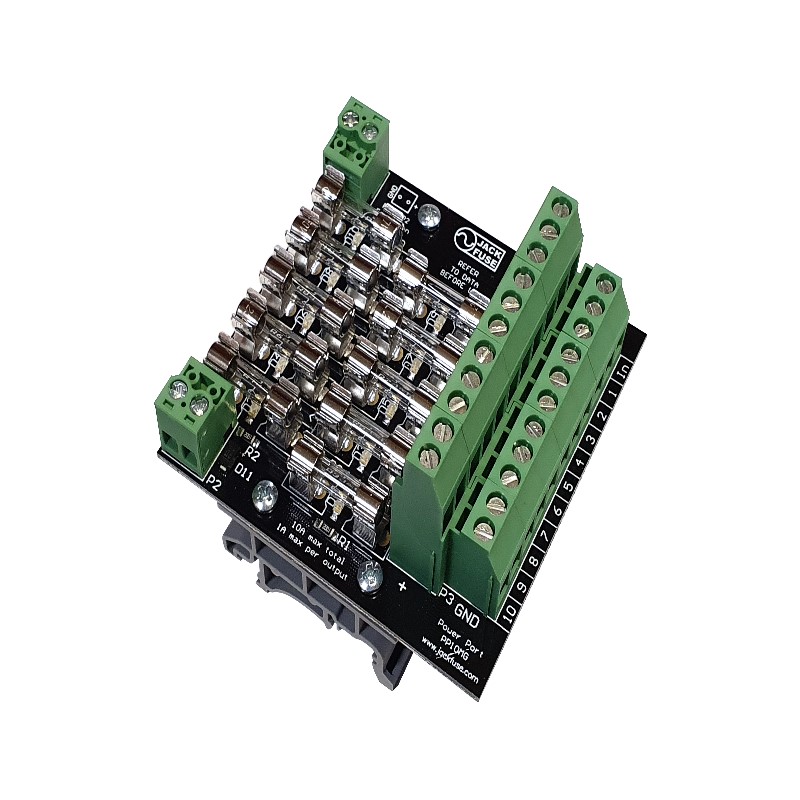

The CSD-PP10MG power port 10MG provides protected power distribution to electronic security and other devices. A modular design is easily expanded via edge mounted connectors. Replaceable glass fuses and a small footprint makes the PP10MG suitable for any enclosure.

  • Input voltage range: 0-28V DC
  • Max current per module: 10A
  • Max constant current per output: 2A (with 2A replacement fuse)
  • Fused outputs: 10
  • Fuse type: 1A Normal Blow M205
  • Mounting: DIN rail
  • Dimensions: 75 L X 75 W X 55 H (mm)
  • Edge connectors for expansion and flexible installation
  • Ten replaceable glass fuse outputs, each with status LED
  • Compact double deck terminals
  • DIN rail mounting
  • Compact size
