Meanwell 24VDC, 5.6A, Power Supply Replacement Unit for Honeywell BC200
| Warehouse | Status |
|---|---|
| Seven Hills - NSW |
AVAILABLE TO ORDER
|
| Loganholme - QLD |
AVAILABLE TO ORDER
|
| Tulla Central Warehouse- VIC |
AVAILABLE TO ORDER
|

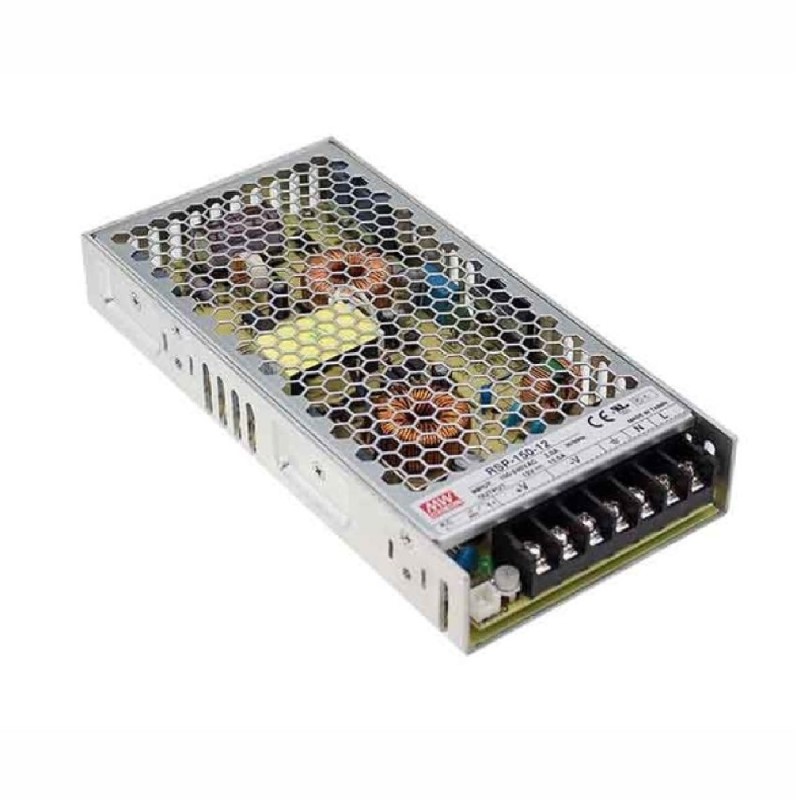

The CSD-RSP-150-27 is a 150W enclosed AC/DC power supply designed for industrial and ITE applications. It delivers a stable 27VDC output at 5.6A and supports a wide input range of 85-264VAC or 120-370VDC. Featuring active power factor correction (PFC), high efficiency, and a compact 1U low-profile design, it's ideal for space-constrained systems. Built-in protections include short circuit, overload, and overvoltage.
- Input Type: Single Phase
- Input Voltage: 85 ~ 264VAC
- Input Current: 0.8A / 230VAC
- Output Voltage: 27V
- Output Current: 5.6A
- Rated Output Power: 151.2W
- Output Type: Single
- Output Voltage Adjustment: 25.7 ~ 29.7V
- Output Current Adjustment Range: N/A
- Auxiliary Power: N/A
- Current Sharing: N/A
- Alarm Signals: N/A
- Remote Functions: Remote On / Off
- Dimming / Control Options: N/A
- Control Options: N/A
- Prescribed Electrical Item: No
- SELV: Yes
- Efficiency: 89.50%
- Operating Temperature Range: -30 ~ +70 Degree C (Refer to "Derating Curve" in Data Sheet)
- Warranty: 3 Years
- Approvals: CE, CB, RCM
- IP Rating / Environmental Protection: Less than IP65
- Dimensions: 199x99x30mm (LxWxH)
- Recommended for New Designs: Yes
Rated Output: 27VDC at 5.6A (151.2W total)
Voltage Adjustment: Output voltage adjustable via built-in potentiometer
Remote ON/OFF Control: Optional external switching capability
Input Voltage Range: 85-264VAC or 120-370VDC
Power Factor Correction: Active PFC function
Efficiency: Up to 89%
Form Factor: Compact 1U low-profile design
Cooling: Fanless, convection-cooled for silent operation
Protections: Short circuit, overload, overvoltage, overtemperature
Surge Tolerance: Withstands 300VAC input surge for 5 seconds
No-load Power Consumption: less than 0.5W for energy efficiency
