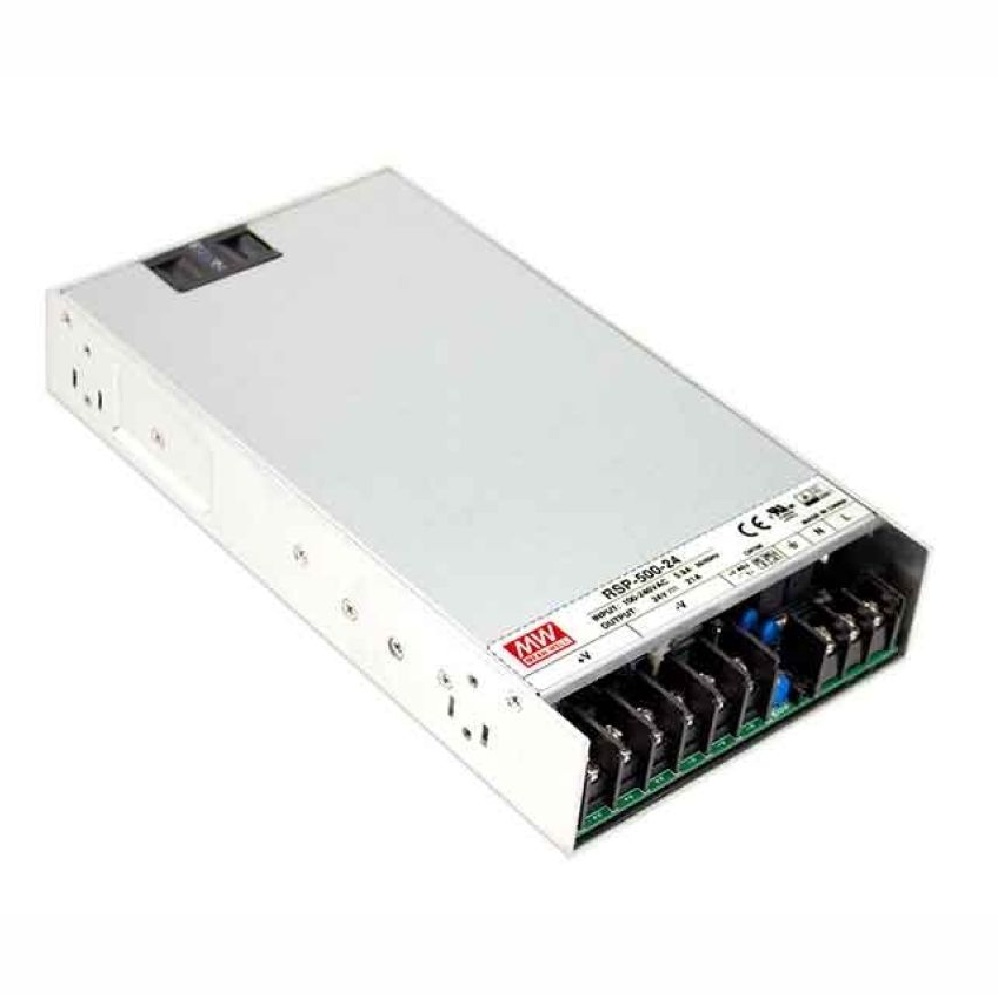

Meanwell 48vDC, 10.5A Single Rail Output Power Supply

CSD-RSP-500-48
AVAILABLE TO ORDER
Meanwell 48vDC, 10.5A Single Rail Output Power Supply
Warehouse Status
Loganholme - QLD
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER

The CSD-RSP-500-48 is a 500W enclosed AC/DC power supply designed for industrial and automation applications. It delivers a stable 48VDC output at 10.5A and supports a wide input range of 85-264VAC. Featuring active power factor correction (PFC), high efficiency, and built-in fan cooling with speed control, it ensures reliable operation up to 70 Degree C. Additional features include remote ON/OFF control, voltage drop compensation, and comprehensive protection against overload, overvoltage, and overtemperature.

  • Input Type: Single Phase
  • Input Voltage: 85 ~ 264VAC
  • Input Current: 2.65 A / 230VAC
  • Output Voltage: 48V
  • Output Current: 10.5A
  • Rated Output Power: 504W
  • Output Type: Single
  • Output Voltage Adjustment: 41 ~ 56V
  • Output Current Adjustment Range: N/A
  • Auxiliary Power: N/A
  • Current Sharing: N/A
  • Alarm Signals: N/A
  • Remote Functions: Remote On / Off
  • Dimming / Control Options: N/A
  • Control Options: N/A
  • Prescribed Electrical Item: No
  • SELV: Yes
  • Efficiency: 90.50%
  • Operating Temperature Range: -30 ~ +70 Degree C (Refer to "Derating Curve" in Data Sheet)
  • Warranty: 3 Years
  • Approvals: CE, CB, RCM
  • IP Rating / Environmental Protection: Less than IP65
  • Dimensions: 230x127x40.5mm (LxWxH)
  • Recommended for New Designs: Yes

  • Rated Output: 48VDC at 10.5A (504W total)
  • Voltage Adjustment: Output voltage adjustable via built-in potentiometer
  • Remote ON/OFF Control: Enables external switching
  • LED Indicator: Displays power status
  • Input Voltage Range: 85-264VAC or 120-370VDC
  • Power Factor Correction: Active PFC function
  • Efficiency: Up to 89%
  • No-load Power Consumption: less than 0.5W
  • Form Factor: Compact 1U low-profile (40.5mm height)
  • Cooling: Built-in fan with speed control
  • Dimensions: 230 x 127 x 40.5 mm
  • Protections: Short circuit, overload, overvoltage, overtemperature
  • Surge Tolerance: Withstands 300VAC input surge for 5 seconds
  • Reliability: 100% full load burn-in test
