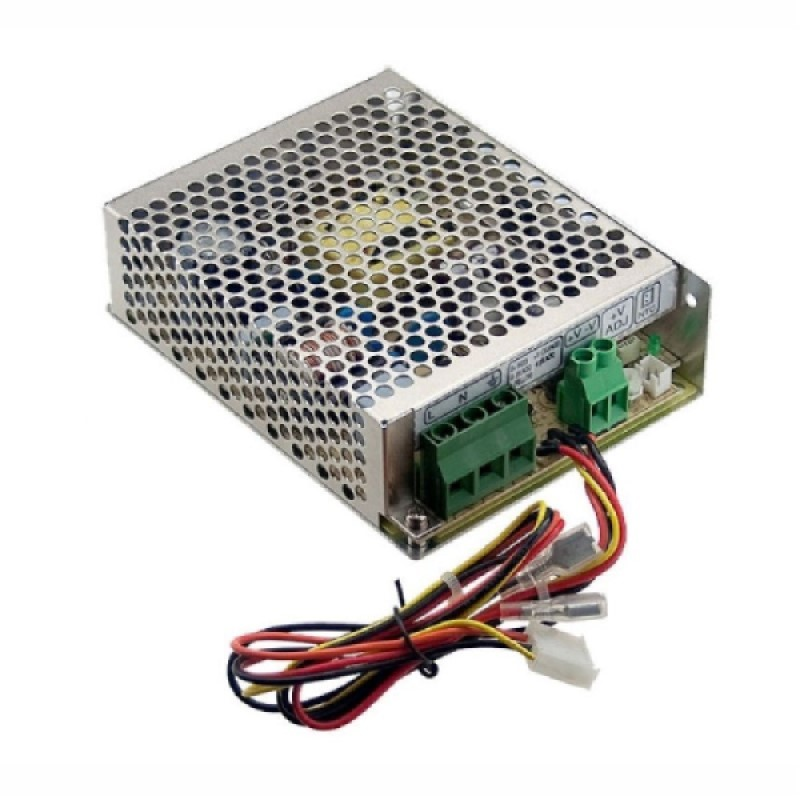

Meanwell 13.8vDC 3.6A (49.7W) Single Output Switching Power Supply

CSD-SCP-50-12
AVAILABLE TO ORDER
Meanwell 13.8vDC 3.6A (49.7W) Single Output Switching Power Supply
Warehouse Status
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER

The CSD-SCP-50-12 is a 50W enclosed AC/DC power supply with integrated battery charging functionality, designed for 12V systems. It delivers a regulated 13.8VDC output at up to 3.6A and supports a wide input range of 85-264VAC or 120-370VDC. Ideal for float charging applications, it features low no-load power consumption (<0.75W), temperature-compensated charging (via optional thermistor), and simple wire terminations for easy battery connection.

  • Input Type: Single Phase
  • Input Voltage: 85 ~ 264VAC
  • Input Current: 0.65A / 230VAC
  • Output Voltage: 13.8V
  • Output Current: 3.6A
  • Rated Output Power: 49.7W
  • Output Type: Single
  • Output Voltage Adjustment: +15, -5%
  • Auxiliary Power: N/A
  • Alarm Signals: AC OK, AC Fail
  • Remote Functions: N/A
  • Dimming / Control Options: N/A
  • Temperature Compensation: Yes
  • Prescribed Electrical Item: No
  • SELV: Yes
  • Efficiency: 81.00%
  • Operating Temperature Range: -20 ~ +60 Degree C (Refer to "Output Load Derating Curve" in Data Sheet)
  • Warranty: 2 Years
  • Approvals: CE, CB, RCM
  • IP Rating / Environmental Protection: Less than IP65
  • Dimensions: 129x98x38mm (LxWxH)
  • Recommended for New Designs: Yes

  • Rated Output: 13.8VDC at 3.6A (49.7W total)
  • Designed for 12V Systems: Ideal for float charging applications
  • Dual Output Terminals: Supports both load and battery connections
  • Input Voltage Range: 85-264VAC or 120-370VDC
  • Efficiency: Approximately 81%
  • No-load Power Consumption: Less than 0.75W for energy savings
  • Float Charge Function: Maintains battery charge while powering the load
  • Temperature Compensation: Optional 100k thermistor input adjusts charging voltage based on ambient temperature
  • Protections: Short circuit, overload, overvoltage
  • Output Voltage Detection: Monitors battery or output voltage for safe operation
  • Compact Enclosure: 129 x 98 x 38 mm
