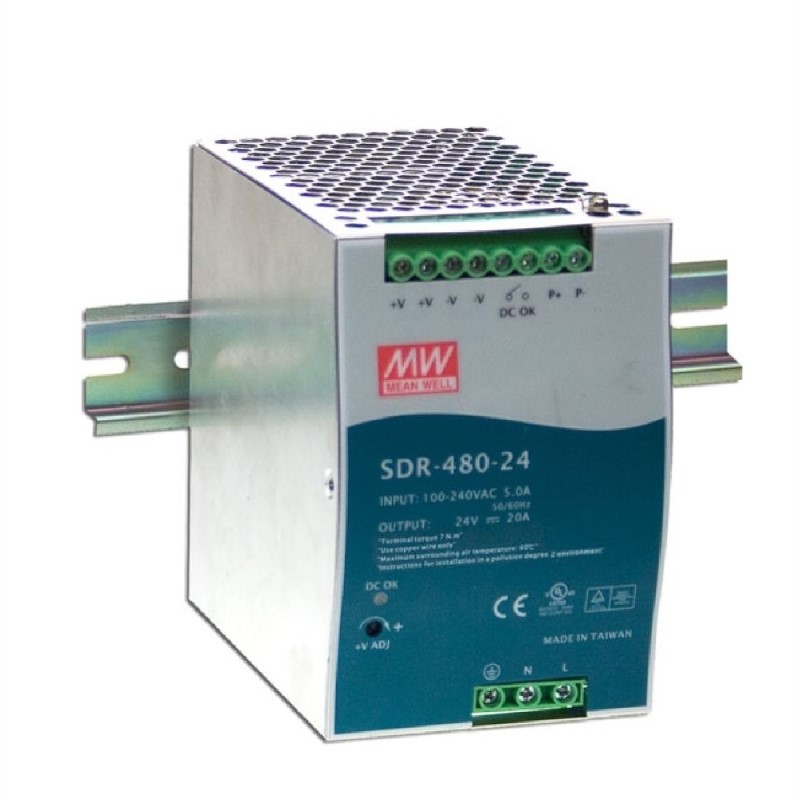

Meanwell 24vDC 20A (480W) Single Output Industrial DIN Rail Power Supply

CSD-SDR-480-24
AVAILABLE TO ORDER
Meanwell 24vDC 20A (480W) Single Output Industrial DIN Rail Power Supply
Warehouse Status
Loganholme - QLD
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

The CSD-SDR-480-24 is a high-performance 480W DIN rail-mounted AC/DC power supply designed for industrial automation and control systems. It delivers a stable 24VDC output at 20A and supports a wide input range of 90-264VAC. With up to 94% efficiency, active power factor correction (PFC), and a peak power capacity of 150%, it ensures reliable operation even under demanding loads. Additional features include DC OK relay contact for remote monitoring, fanless cooling, and full compliance with UL508 and EN61000-6 EMC standards.

  • Input Type: Single Phase
  • Input Voltage: 90 ~ 264VAC
  • Input Current: 2.5A / 230VAC
  • Output Voltage: 24V
  • Output Current: 20A
  • Rated Output Power: 480W
  • Output Type: Single
  • Output Voltage Adjustment: 24 ~ 28V
  • Output Current Adjustment Range: N/A
  • Current Sharing: N/A
  • Alarm Signals: DC OK
  • Remote Functions: N/A
  • Dimming / Control Options: N/A
  • Control Options: N/A
  • Prescribed Electrical Item: No
  • SELV: Yes
  • Efficiency: 94.00%
  • Operating Temperature Range: -25 ~ +70 Degree C (Refer to "Derating Curve" in Data Sheet)
  • Warranty: 3 Years
  • Approvals: CE, CB, RCM
  • IP Rating / Environmental Protection: Less than IP65
  • Dimensions: 85.5x125.2x128.5mm (WxHxD)
  • Recommended for New Designs: Yes

  • Rated Output: 24VDC at 20A (480W total)
  • Voltage Adjustment: Output voltage adjustable via front potentiometer
  • Peak Power Capability: Delivers up to 150% of rated power for short durations
  • Input Voltage Range: 90-264VAC or 124-370VDC
  • Power Factor Correction: Built-in active PFC
  • Efficiency: Up to 94%
  • Mounting: DIN rail TS-35/7.5 or 15
  • Form Factor: Compact and rugged metal casing
  • Cooling: Fanless, convection-cooled design
  • Protections: Short circuit, overload, overvoltage, overtemperature
