Dormakaba DB25L Electronic Deadbolt Lock with Mag-Latch, Monitored, PTO

DK-DB25LPTO
AVAILABLE TO ORDER
Dormakaba DB25L Electronic Deadbolt Lock with Mag-Latch, Monitored, PTO
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER

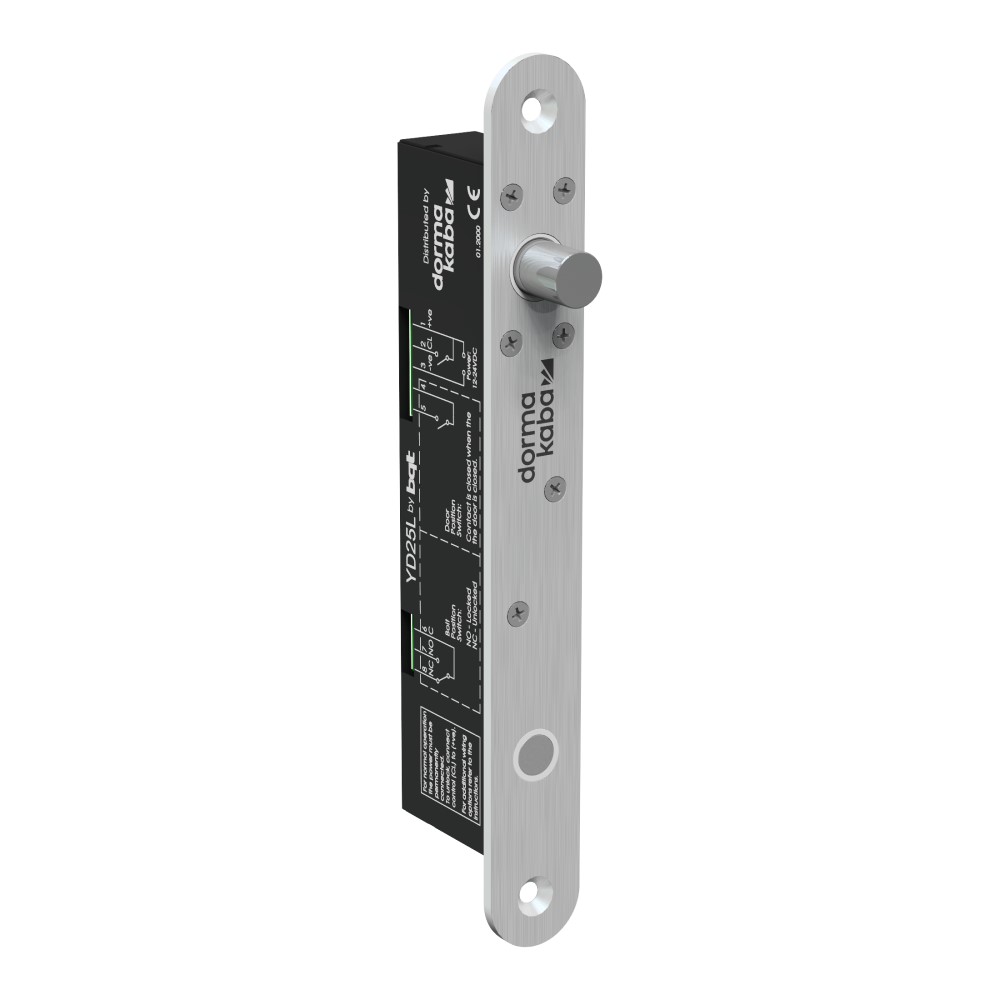

Dormakaba's DK-DB25LPTO electronic deadbolt lock is a high security streamlined lock that is suitable for use on any single or double acting door. The DK-DB25LPTO includes a positioning magnet-latch to effectively align doors before locking. With a solid 12.7mm stainless steel bolt pin and a holding force of 1000kg, this electronic deadbolt makes for a reliable and robust locking solution.

  • Dimensions: 210L x 25W x 42D (mm)
  • Bolt diameter: 12.7mm
  • Holding force: 1000kgs
  • Power input: 12 - 24V DC
  • Power consumption: 1.25A (peak), 160mA (idle)
  • Endurance: 1,000,000 cycles

  • Power To Open / Fail Secure
  • Strong magnetic latch for door alignment
  • Automatic locking
  • Anti-tamper
  • Automatic re-lock attempts
  • Thermal overheating protection
  • Reverse polarity protection
  • Dual monitoring (door and bolt positions)
  • Horizontal or vertical mounting options
  • Single or double acting doors suitability
  • Glass door mounting options (accessories sold separately)
