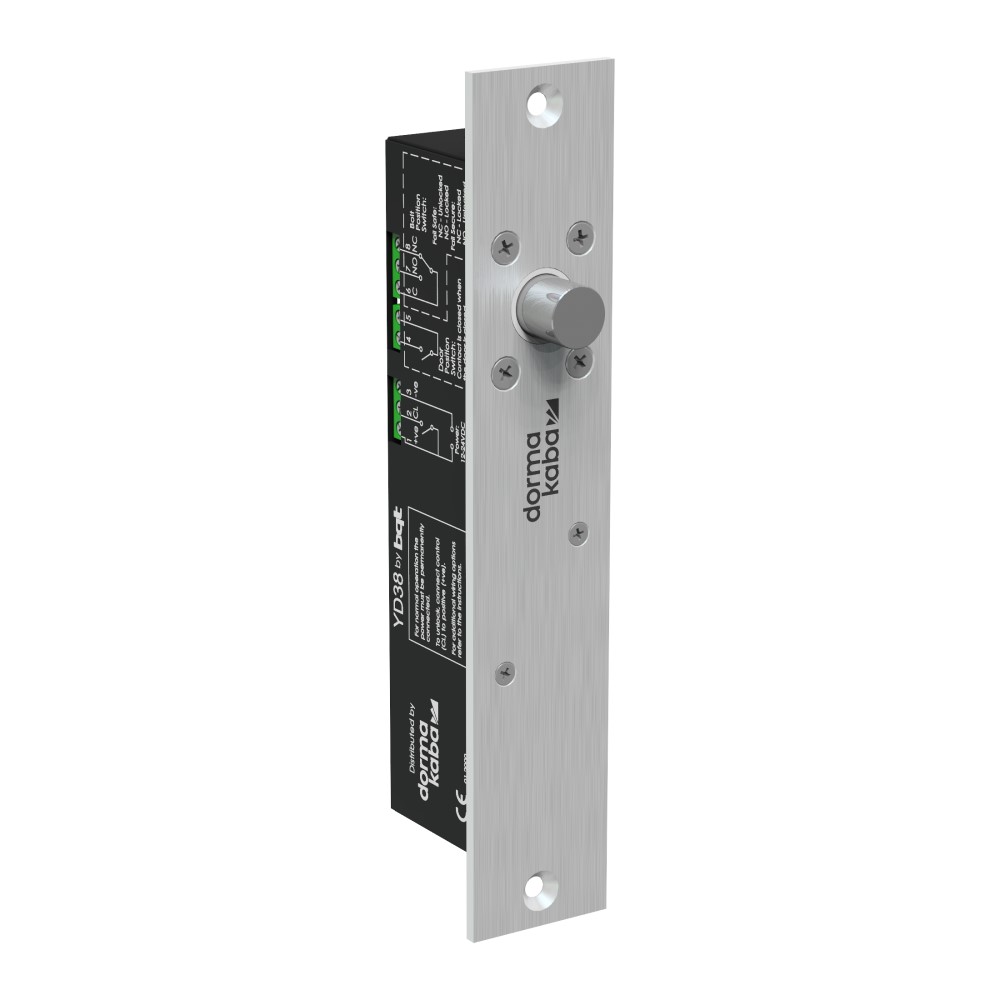

Dormakaba DB38 Electronic Deadbolt Lock, Monitored, PTO

DK-DB38PTO
AVAILABLE TO ORDER
Dormakaba DB38 Electronic Deadbolt Lock, Monitored, PTO
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Waterloo - NSW
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER

Dormakaba's DK-DB38PTO electronic deadbolt lock is a high security streamlined lock that is suitable for use on any single or double acting door. With a solid 14.2mm stainless steel bolt pin and a holding force of 2000kg, it makes for a reliable and robust locking solution.

  • Dimensions: 203L x 37.5W x 44D (mm)
  • Bolt diameter: 14.2mm
  • Holding force: 2000kgs
  • Power input: 12 - 24V DC
  • Power consumption: 1.5A (peak), 230mA (idle)
  • Endurance: 1,000,000 cycles

  • Power To Open / Fail Secure
  • Automatic locking
  • Anti-tamper
  • Automatic re-lock attempts
  • Thermal overheating protection
  • Reverse polarity protection
  • Dual monitoring (door and bolt positions)
  • Horizontal or vertical mounting options
  • Single or double acting doors suitability
  • Glass door mounting options (accessories sold separately)

Datasheets
