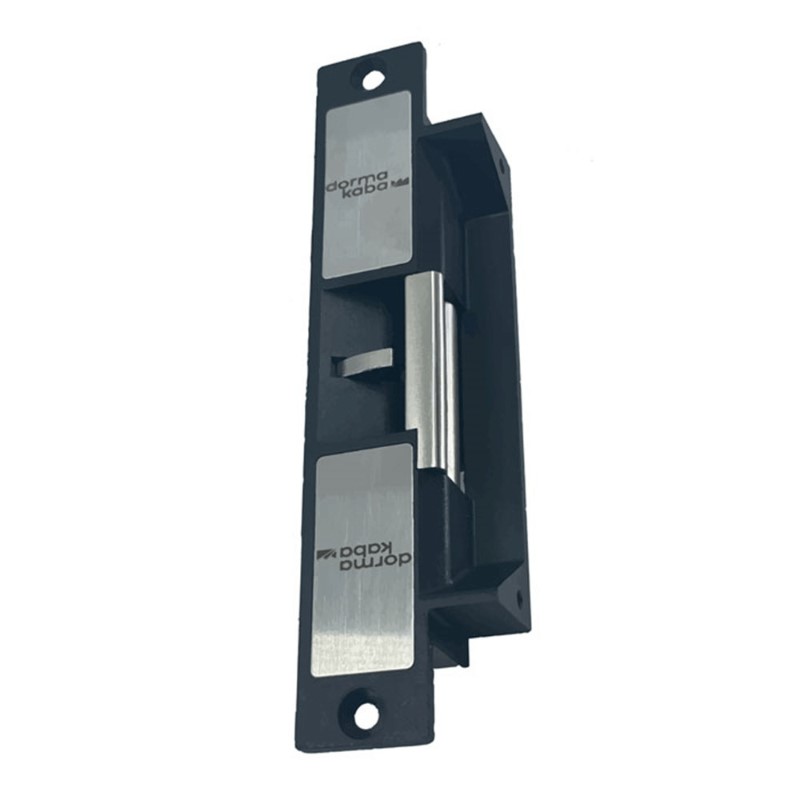

Dormakaba KES900Z Pre-Loaded Electric Strike, 680kg, Monitored, 12/24VDC

DK-KES900Z
AVAILABLE TO ORDER
Dormakaba KES900Z Pre-Loaded Electric Strike, 680kg, Monitored, 12/24VDC
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

The DK-KES900Z Electric strike provides a pre-load function capable of opening electrically with up to 35kgs of pressure being applied, commonly caused by air conditioning, doors that have dropped or warped or the addition of door seals. Due to the Zinc Alloy construction, it is an economic solution, perfectly suited for NON Fre Rated applications such as aluminium fabricated solutions.

  • Lock Dimensions: 174.5 x 44W x 27D (mm)
  • Holding Strength: 680kgs
  • Preload: 35kgs
  • Operating voltage: 12/24VDC
  • Voltage tolerance: +/-15%
  • Current draw: 600mA/12VDC, 300mA/24VDC
  • Operating temperature: -10 C - 49 C
  • Humidity: 0 - 85 percent non-condensing
  • Operating mode: fail safe/fail secure
  • Cycle tested: 1 million cycles
  • Material: zinc alloy housing, stainless steel keeper

  • Field reversible fail safe/fail secure
  • Operating voltage 12VDC/24VDC
  • Monitored latch and lock status
  • Suits latch throw up to 18mm
  • Preload - up to 35kgs (80lbs)
  • Pre-drilled for optional extension lips
  • Includes mounting tabs for metal frame
  • Zinc Alloy construction (Non fire rated)
  • Static Holding force of 680kg (1500lbs)

Datasheets
