Dynamix Cable, CAT6, 305m, Pull Box with Reel, Purple

DYN-CAT6V-305
AVAILABLE TO ORDER
Dynamix Cable, CAT6, 305m, Pull Box with Reel, Purple
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Waterloo - NSW
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mount Waverley - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

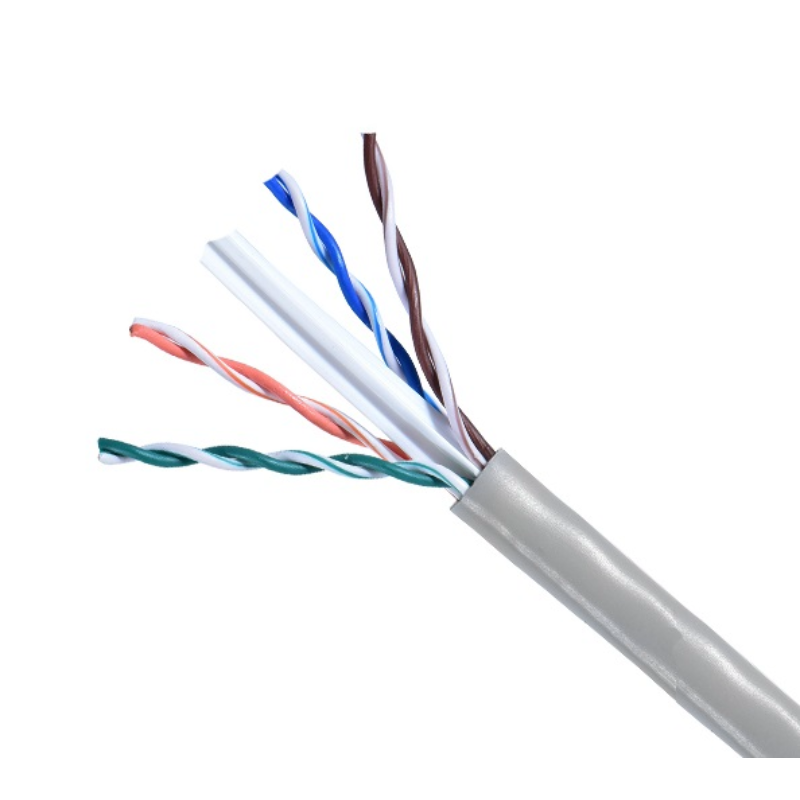

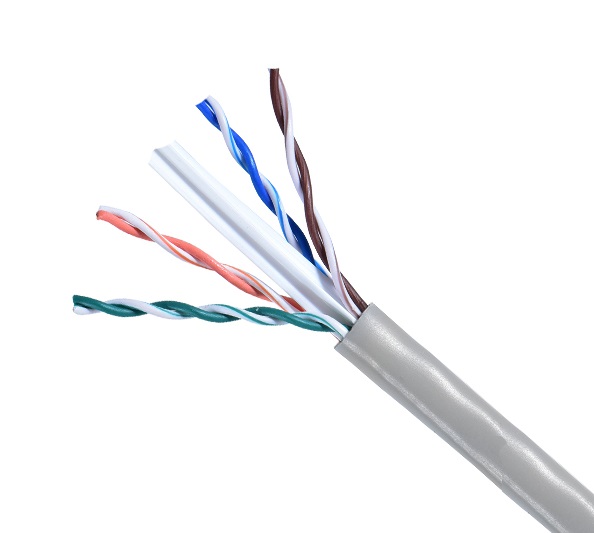

The DYN-CAT6V-305 is a high-quality Cat6 U/UTP network cable designed for indoor structured cabling. This cable is suitable for commercial and residential installations where safety, performance, and colour-coded organization are important.

  • Cable Type: UTP
  • Jacket Material: LSZH
  • Conductor Material: Bare Copper Cable
  • Insulation Material: HDPE
  • Cable Length: 305m
  • Cable Weight: 13.1kg/305m
  • Cable Diameter: 0.55
  • Cable Gauge: 23AWG
  • Jacket Thickness: 0.55 plus or minus 0.05mm
  • DC Resistance Unbalanced (Max.): in pair less than or equal 2.0%, pair to pair less than or equal 4.0%
  • DC Resistance (Max.): less than or equal 9.38 Omega/100m
  • Dielectric Strength (Max.): DC 1000V 1min No Breakdown
  • Mutual Capacitance at Frequency: less than or equal 5.8nF/100m
  • NVP: 69%
  • Operating Frequency: 250MHz
  • Flame Test Method: IEC60332-1-2
  • Installation Temperature: -20 ~ +60 degrees Celsius
  • Operating Temperature: -40 ~ +75 degrees Celsius
  • Packaging: Reel in Box

  • 305m Cat6 purple UTP solid cable roll 250MHz
  • 100% bare copper cable
  • 23AWGx4P
  • LSZH jacket
  • AS/CA S008:2010 approved
  • 4K UHD ready
