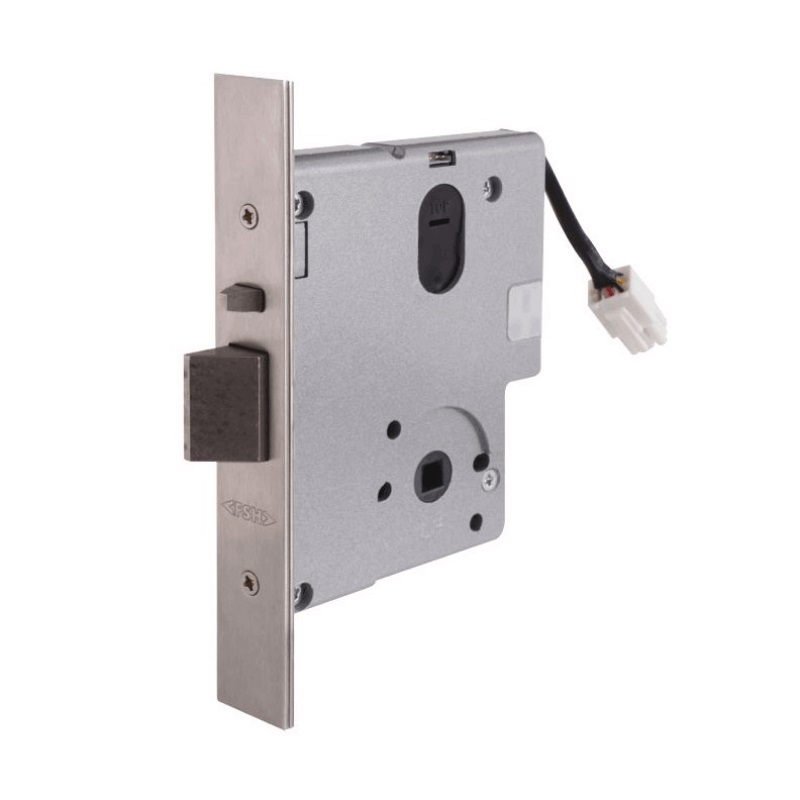

FSH FEL990M Electric Mortice Lock, 60mm Backset, Monitored with Door Loop

FSH-FEL990M-PTD
AVAILABLE TO ORDER
FSH FEL990M Electric Mortice Lock, 60mm Backset, Monitored with Door Loop
Warehouse Status
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

The FSH-FEL990 series is a multi-function electric mortice lock that is designed to provide single-sided locking, power to lock/power to open and left/right hand operation.

  • Door position monitoring by reed switch
  • Lock status by combination of:
  • Locking bar status
  • Dead latch bolt status
  • Latch bolt status
  • Power transfer option
  • Dual key override monitoring
  • Request to exit via hub or handle
  • LED indication
  • Multi-voltage - 12-24VDC/350mA momentary
  • Reverse polarity protected
  • 3m cable with industry standard 12 pin plug
  • 60mm backset
  • Fail safe/fail secure field selectable
  • Satin chrome finish
