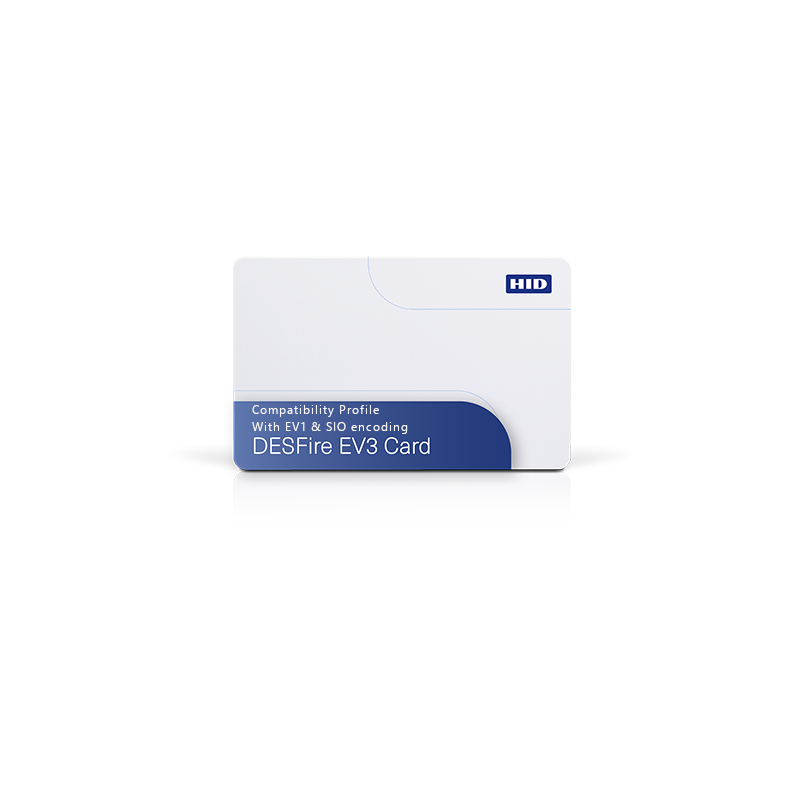

HID Mifare DESFire EV1 + EV3 SIO Encoding, ISO Card, 8k, Static CSN

HID-801HPROG
AVAILABLE TO ORDER
HID Mifare DESFire EV1 + EV3 SIO Encoding, ISO Card, 8k, Static CSN
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER
Canning Vale - WA
AVAILABLE TO ORDER

DESFire EV3 has been added to the MIFARE DESFire family of smart card chipsets from NXP. This addition introduces more features that HID have taken full advantage of.

The HID-801HPROG compatibility profile credential maintains backwards compatibility with iCLASS SE R10/9xxNxx and multiCLASS SE RP10/9xxPxx readers and will be custom programmed by HID.

HID DESFire EV3 cards leverage security features including AES128 encryption, secure channel-based file transfer and proximity check to protect card data from attacks.

  • Operating frequency: 13.56MHz
  • Communication protocol compliance: ISO14443A-4
  • SIO application features: 2TDEA crypto / MAC communication
  • Communication speed: up to 848kbps
  • Memory size/type: 8K EEPROM
  • CSN/UID: randomised 4-byte (32-bit)
  • Operating temperature: -35 degrees to 50 degrees Celsius
  • Weight: 5.5g

  • Feature-rich security
  • Secure Identity Object (SIO) data model for added key diversification, authentication signatures and encryption
  • Flexibility in three profiles to ensure the best fit for your access control system
  • Backwards compatibility with EV1 and EV2 based solutions

Datasheets
