HID Mifare DESFire EV1 + EV3 SIO Encoding + Prox, ISO Card, 8k, Static CSN, MOQ 100

HID-811HPROG
AVAILABLE TO ORDER
HID Mifare DESFire EV1 + EV3 SIO Encoding + Prox, ISO Card, 8k, Static CSN, MOQ 100
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

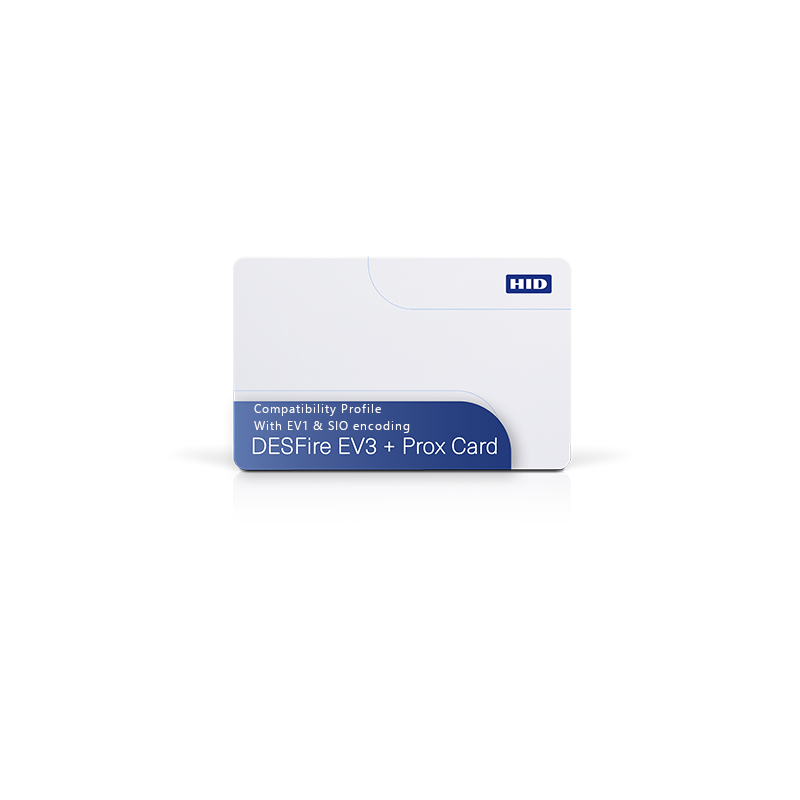

HID Global's DESFire EV3 + Prox card is designed to enable security system owners with a smooth migration path from legacy low-frequency 125 kHz-based systems to a modern and secure credential technology.

The HID-811HPROG compatibility profile credential maintains backwards compatibility with iCLASS SE R10/9xxNxx and multiCLASS SE RP10/9xxPxx readers and will be custom programmed by HID.

HID DESFire EV3 cards leverage security features including AES128 encryption, secure channel-based file transfer and proximity check to protect card data from attacks.

This credential would typically be used on sites transitioning from ProxPoint readers to iClass SE R10/9xxNxx readers and is custom programmed by HID.

  • Operating frequency: 13.56MHz
  • Communication protocol compliance: ISO14443A-4
  • SIO application features: 2TDEA crypto / MAC communication
  • Communication speed: up to 848kbps
  • Memory size/type: 8K EEPROM
  • CSN/UID: randomised 4-byte (32-bit)
  • Operating temperature: -35 degrees to 50 degrees Celsius
  • Weight: 5.5g

  • Feature-rich security
  • Secure Identity Object (SIO) data model for added key diversification, authentication signatures and encryption
  • Flexibility in three profiles to ensure the best fit for your access control system
  • Backwards compatibility with EV1 and EV2 based solutions
  • 125KHz Low Frequency HID Prox support

Datasheets
