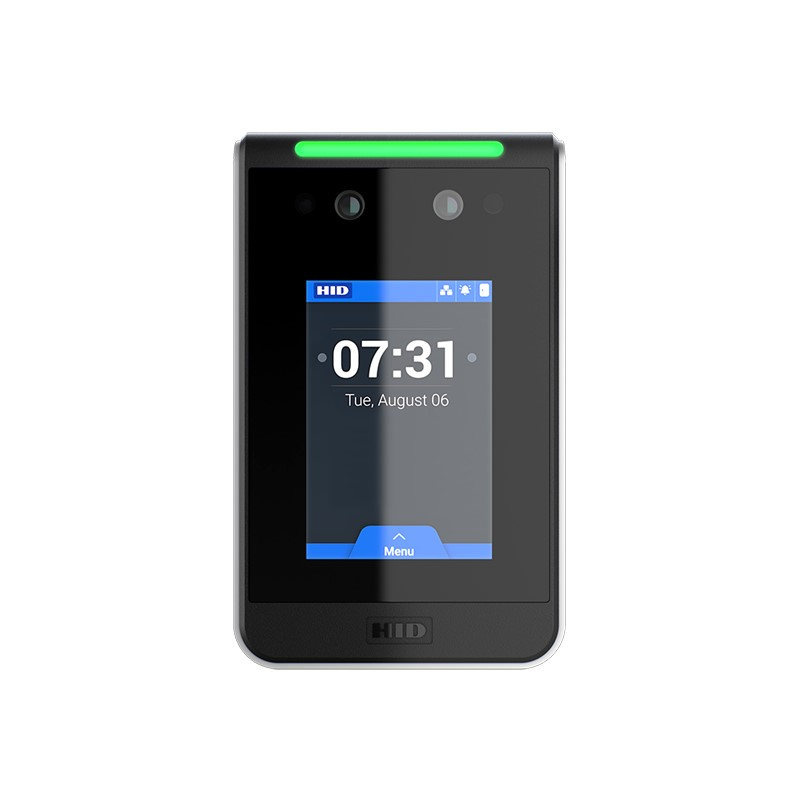

Facial Identification

• 2x full HD camera (visible and near-infrared).
• Paravision algorithm for face identification
• Presentation Attack Detection
• Throughput: 30 persons per min 1:N mode.
• Matching speed: Within .2 seconds
• Authentication distance: up to 9ft 10ft (3 m)
• Mounting height: 4ft 7in (1.4 m)
• Minimum light level: 0 lux
• Memory capacity: 200,000 registered users (card, PIN), 10,000 facial templates (up to 100,000)
• Event logs: 200,000 records
• Alternative / + methods with Facial
• PIN /User ID/ Password On-screen keypad
• QR code: Static (ISO/IEC 18004:2015) & Dynamic (TOTP, RFC 6238)

Credential Support

• Facial template on card: Seos SIO
• HF: Seos, iCLASS, iCLASS SE, Mifare DESFIRE EV1/2/3*,
• MIFARE & ISO 14443A/B CSN
• LF: HID PROX, Indala, EM
• MA: NFC and Bluetooth support for multitier mobile access.
• Wallet: Apple and Google Wallet **

Communication

• 1x Ethernet 10/100Mbps
• 1x USB 2.0 Host - Service use only
• 1x RS-485 (supports OSDP v2 or EAM)

Interfaces (via External Access Module)

• 1x NO/NC relay
• 1x Wiegand input
• 1x Wiegand output
• 1x REX input
• 1x door sensor input
• User Interface
• LCD touchscreen 3.5" TFT colour LCD, 320x480
• Audio Built-in buzzer
• LED indicator Multi-color LED indicator combined and face illumination function

General Characteristics

• Dimensions: 3.4in x 5.59in x 1.01in (86x142x26mm) terminal, 2.05in x 2.05in x 0.86in (52x52x22mm) EAM
• Weight: 345g (terminal), 35g (EAM)
• CPU: 1.5 GHz Quadcore processor
• Temperature range: -20 degrees C to +50 degrees C, 0% ~ 80%, non-condensing
• Power: 12V DC/2A External or POE
• PoE: 802.3af PoE (802.3at/PoE+ and 802.3bt/PoE++ compatible)
• IP65 rating
• Tamper detection
• Warranty 12 months
