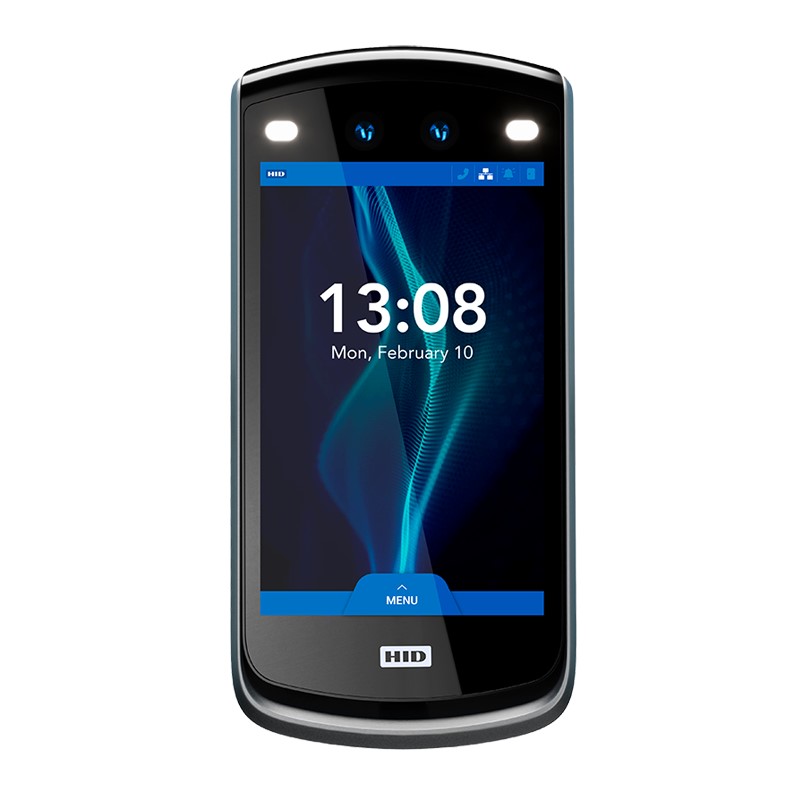

HID AMICO 7.0" Facial Recognition Device, 50k Users

HID-AMICO-VL70LF
AVAILABLE TO ORDER
HID AMICO 7.0" Facial Recognition Device, 50k Users
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER

The HID Amico HID-AMICO-VL70LF is a reliable, feature-rich reader that enhances security, that provides a seamless user experience and improves operational efficiency - making it ideal for mid-sized organisations looking to modernise their access control.

Facial Identification

  • 2x full HD camera (visible and near-infrared).
  • Paravision algorithm for face identification
  • Presentation Attack Detection
  • Throughput: 30 persons per min 1:N mode.
  • Matching speed: Within .2 seconds
  • Authentication distance: up to 9ft 10in (3 m)
  • Mounting height: 4ft 11in (1.5 m)
  • Minimum light level: 0 lux
  • Memory capacity: 200,000 registered users (card, PIN), 50,000 facial templates (up to 100,000)
  • Event logs: 200,000 records
  • Alternative / + methods with Facial
  • PIN /User ID/ Password On-screen keypad
  • QR code: Static (ISO/IEC 18004:2015) & Dynamic (TOTP, RFC 6238)

Credentials Support

  • Facial template on card: Seos SIO
  • HF: Seos, iCLASS, iCLASS SE, Mifare DESFIRE EV1/2/3*,
  • MIFARE & ISO 14443A/B CSN
  • LF: HID PROX, Indala, EM
  • MA: NFC and Bluetooth support for multitier mobile access.
  • Wallet: Apple and Google Wallet **

Communication

  • 1x Ethernet 10/100Mbps
  • 1x USB 2.0 Host -Service use only.
  • 1x RS-485 (supports OSDP v2 or EAM)
  • Interfaces
  • 1x NO/NC relay
  • 3x input/output
  • 1x line out audio
  • via External Access Module
  • 1x NO/NC relay
  • 1x Wiegand input
  • 1x Wiegand output
  • 1x REX input
  • 1x door sensor input

User Interface

  • LCD touchscreen 7" TFT colour LCD, 1280 x 800
  • Audio built-in mic and speaker
  • LED indicator no LED indicator bar, face illumination function

General Characteristics

  • Dimensions: 4.7in x 9.72in x 1.36in (119.4 x 247 x 34.6mm) terminal, 2.05in x 2.05in x 0.86in (52x52x22mm) EAM
  • Weight: 950g (terminal), 35g (EAM)
  • CPU: 1.5 GHz Quadcore processor
  • Temperature range: -20 degrees C to +50 degrees C, 0% ~ 80%, non-condensing
  • Power: 12V DC/2A External or POE
  • PoE: 802.3af PoE (802.3at/PoE+ and 802.3bt/PoE++ compatible)
  • IP65 rating
  • Tamper detection
  • Warranty 12 months

  • Five multi-factor authentication methods (face, card, QR code, pin and HID mobile solutions)
  • Supports wallet credentials
  • Powered by Paravision's AI algorithm, ranked in the global Top 10 by NIST
  • Built in intercom functionality on 7"
  • Compact design with high resolution colour capacitative touchscreen
  • API for OEM software integration
  • OSDP and Wiegand support
  • IP65 rating
