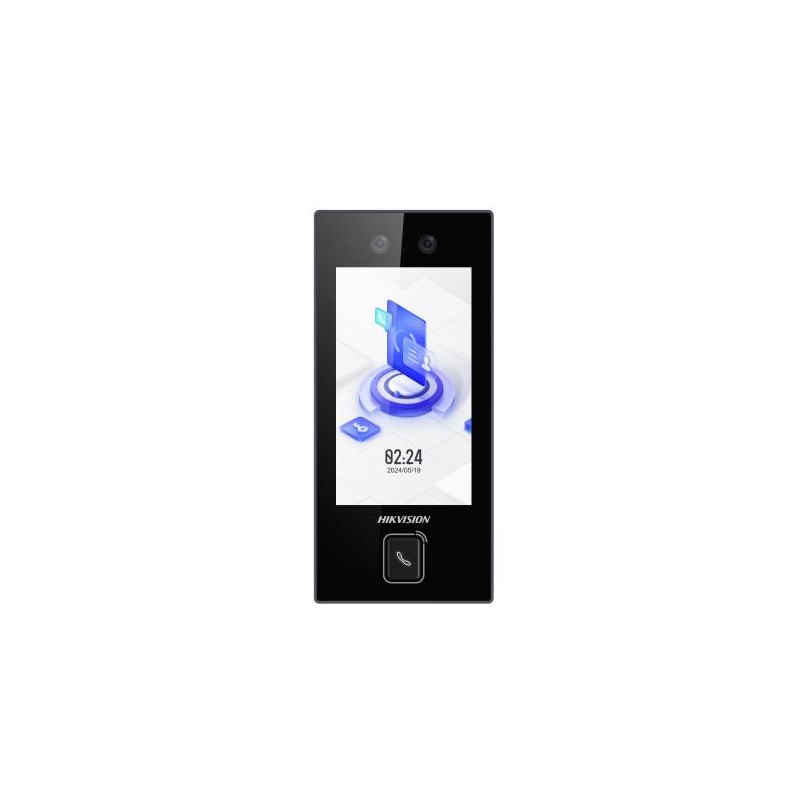

Hikvision 4.5 Inch Touchscreen Access Terminal, 2MP Wide Angle, 12VDC or PoE

HIK-K1T344MBWXE1
AVAILABLE TO ORDER
Hikvision 4.5 Inch Touchscreen Access Terminal, 2MP Wide Angle, 12VDC or PoE
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER

The Hikvision HIK-K1T344MBWXE1 face recognition terminal adopts deep learning algorithm, which helps to recognise the face faster with higher accuracy. It also supports multiple authentication modes. It can be applied in multiple scenarios, such as buildings, enterprises, financial industries, and other important areas.

  • Screen size: 4.5 inch
  • Resolution 480 x 854
  • Type LCD
  • Operation method: Touchable
  • Bluetooth supported
  • Wired network: 10/100 Mbps self-adaptive
  • Wi-Fi supported
  • User capacity: 3,000
  • Card capacity: 3,000
  • Face capacity: 3,000
  • Event capacity: 150,000
  • Power supply: 12 VDC, 1 A, standard PoE
  • Working temperature: -30C to 60C
  • Working humidity: 10 to 90 (No condensing)
  • Dimensions: 165.2 mm x 75.7 mm x 25 mm
  • Installation: Wall mounting
  • Protective level: IP65

  • 4.5 inch LCD touch screen
  • 2 MP wide-angle lens
  • Built-in M1 card reading module
  • Maximum 3,000 faces capacity, maximum 3,000 cards
  • Supports face, card, and PIN authentication
  • Two-way audio with client software, indoor station, and main station
  • Physical button and touch button are supported
  • Supports mobile web and PC web for configuration
  • Supports powered by 12 VDC or PoE and supports powering for device and door lock
