Hikvision Ax Pro Wireless Reed Switch and Shock Detector

HIK-PDMCK-WB
AVAILABLE TO ORDER
Hikvision Ax Pro Wireless Reed Switch and Shock Detector
Warehouse Status
Seven Hills - NSW
IN STOCK
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
IN STOCK
Mount Waverley - VIC
AVAILABLE TO ORDER
Balcatta - WA
IN STOCK
Canning Vale - WA
IN STOCK

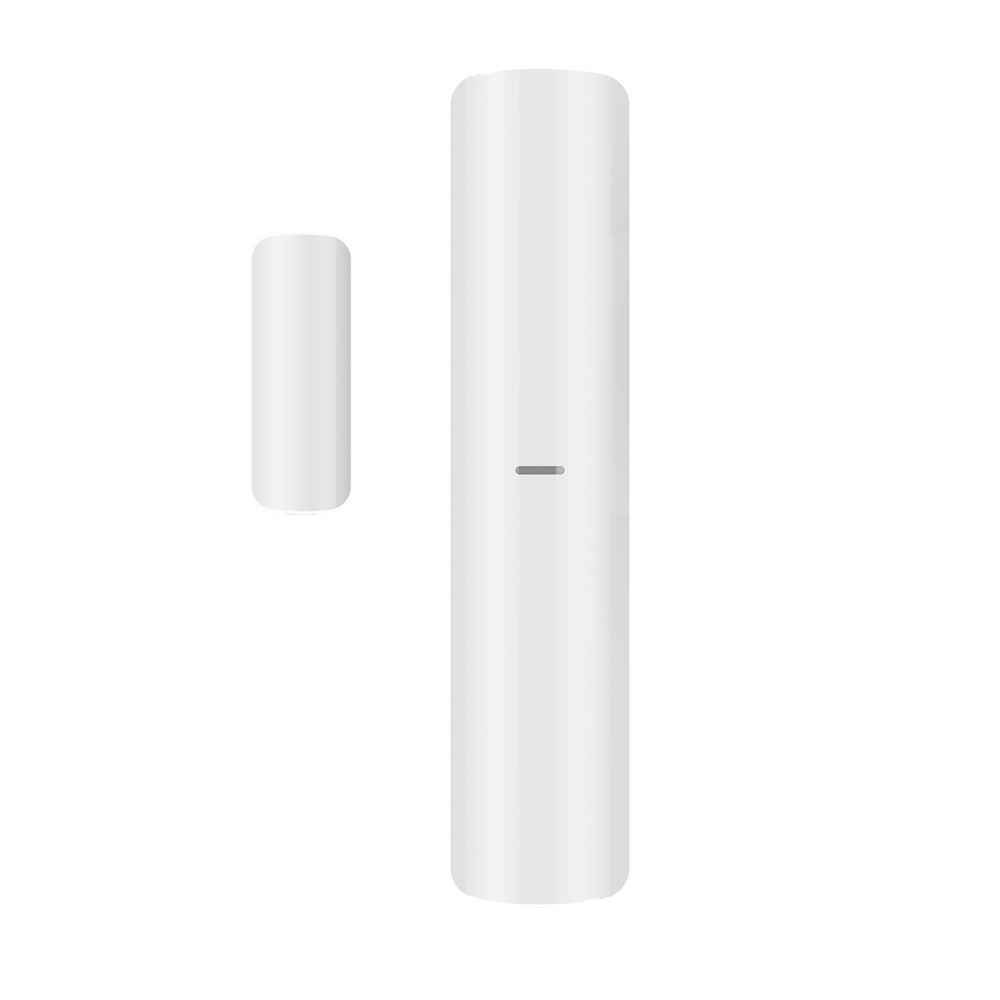

The Hikvision HIK-PDMCK-EG2 multi-input reed switch with combined shock sensor has two-way wireless communication featuring tamper protection, low battery, and RF supervision. It can analyse shocks and tilting motions and has a slim and unobtrusive design with 2 external inputs allowing the user to extend its applications by wiring it to different wired sensors and is fully remote configurable through the Hik-Connect app.

N.B. The AX PRO system is not compatible with the Axiom system.

  • Detection method: opening contact, shock sensor
  • Shock detection: high, normal, low
  • Tilt detection: up to 25 degrees
  • Transmission range: 1km (open area)
  • Frequency: 433Mhz
  • Encryption: AES-128
  • Battery type: CR123A x 1
  • Battery life: 3 years
  • Sensor: 22.5mm x 103mm x 23.2mm
  • Magnet: 13mm x 34.4mm x 11.4mm
  • Weight: 60g

  • Magnetic contact combined with shock and tilt detection
  • 2 external inputs
  • Fully remote configurable through the Hik-Connect app
  • Easy installation design
  • Easily replaceable battery with PCB protection
  • Frequency hopping

Datasheets
