Fibre Modem - Single Mode PCB & Kit

IR-995087
AVAILABLE TO ORDER
Fibre Modem - Single Mode PCB & Kit
Warehouse Status
Seven Hills - NSW
IN STOCK
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
IN STOCK
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
IN STOCK
Mulgrave - VIC
IN STOCK
Balcatta - WA
IN STOCK
Canning Vale - WA
IN STOCK

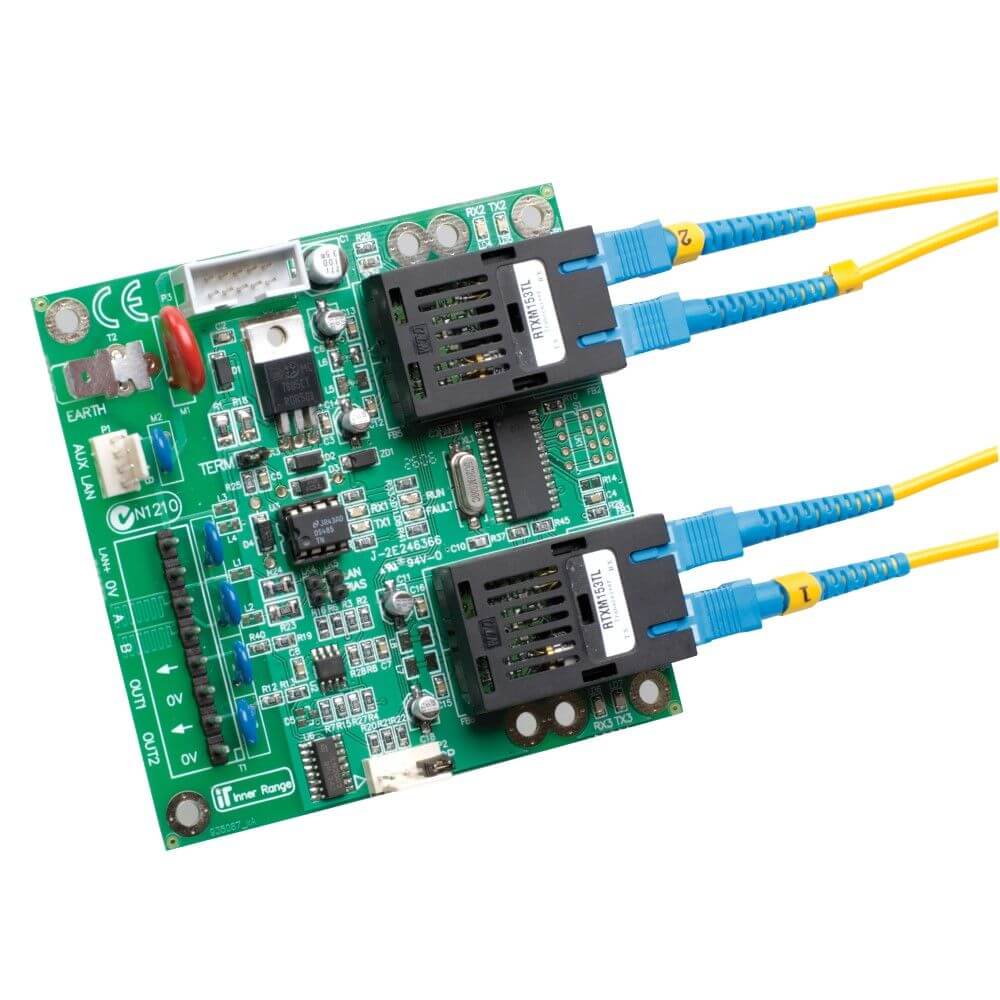

The Inner Range Fibre Modem provides two separate, optically isolated ports to the Concept system LAN. A set of Fibre Modems are ideal for applications where modules in a Concept system are in different buildings and/or are separated by large distances. The modems have two fibre ports which enable sets of Fibre Modems to be arranged in branch or loop configurations. Each fibre port utilises a pair of fibres per link to provide full-duplex communication. Up to 5 Fibre Modems can be connected in series. Both Single Mode and Multimode versions of the Fibre Modem are available.

For more information visit InnerRange.com

  • PCB: 96mm(L) x 96mm(W)
  • 11-14V DC (from LAN or separate battery backed external power supply) @ 20mA minimum operational current (max 120mA)

  • Single Mode Fibre Modems extend Concept LAN up to 13km
  • Electrical isolation from the remote LAN
  • Fibre links immune to earth loops and induced noise
  • Immune to propagation of electrical pulses due to lightning
  • Supports loop and branch ("Y") configurations
  • Redundant LAN path when Fibre Modems used in 'loop' configuration
  • Loop fault and branch fault auxiliary outputs
