LOX Drop Bolt, 300kg, Monitored DSS, PTO, Mortice Mount, 12V D
LOX-DB1260PTO
AVAILABLE TO ORDER
LOX Drop Bolt, 300kg, Monitored DSS, PTO, Mortice Mount, 12V D
| Warehouse | Status |
|---|---|
| Seven Hills - NSW |
AVAILABLE TO ORDER
|
| Waterloo - NSW |
AVAILABLE TO ORDER
|
| Fyshwick - ACT |
AVAILABLE TO ORDER
|
| Loganholme - QLD |
AVAILABLE TO ORDER
|
| Dudley Park - SA |
AVAILABLE TO ORDER
|
| Tulla Central Warehouse- VIC |
AVAILABLE TO ORDER
|
| Mulgrave - VIC |
AVAILABLE TO ORDER
|
| Balcatta - WA |
AVAILABLE TO ORDER
|
| Canning Vale - WA |
AVAILABLE TO ORDER
|

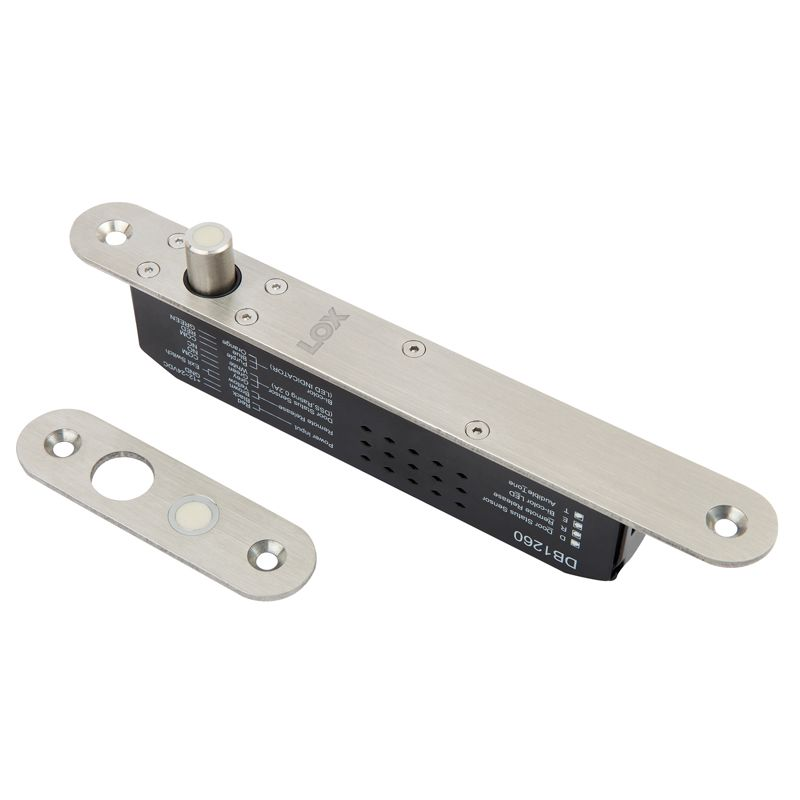

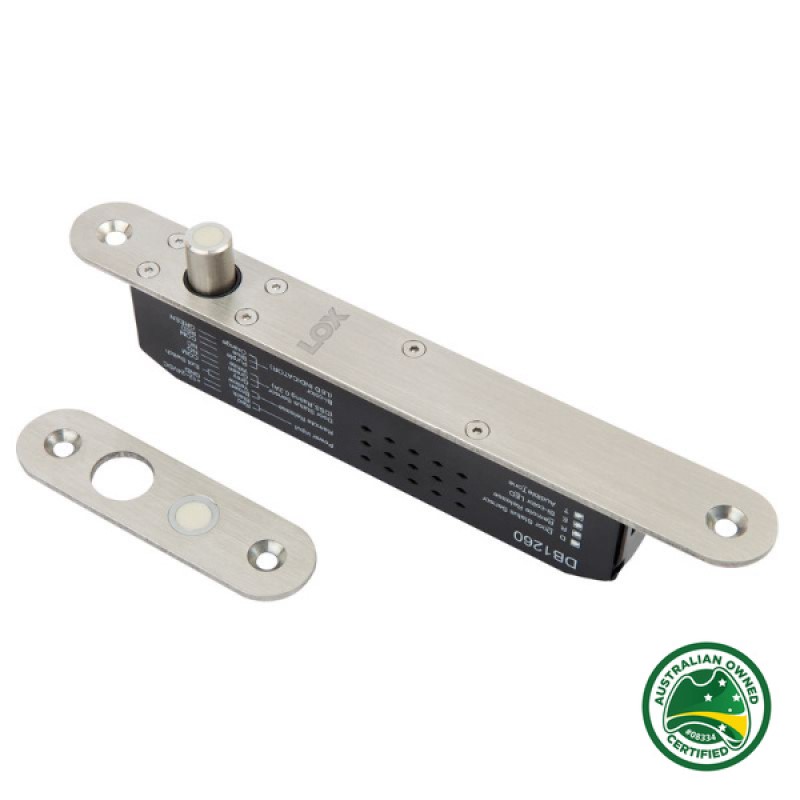

The LOX-DB1260PTO is a power to open (fail secure)electric drop bolt is designed to be used on double action (swing through) doors or as an additional locking device in conjunction with an electric strike in single door applications. This drop bolt has a 25mm wide face plate and is therefore applicable on narrow style frame installations.
- Holding strength: 300kg
- Voltage/current: dual voltage 12/24VDC 12VDC
- Operational temperature range: -20 to 60 degrees Celsius
- Internal control circuits protect drop bolt pin from damage
- Power to open
- Auto lock function
- Built-in varistor (MOV) for surge protection
- Time delay setting at 0/3/6/10 secs
- 1 year warranty
