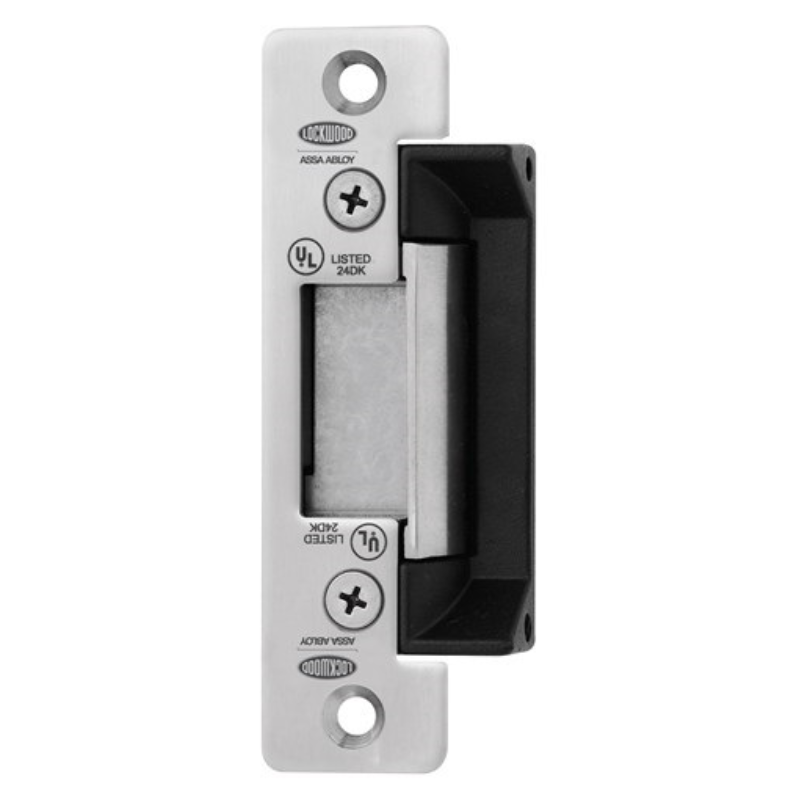

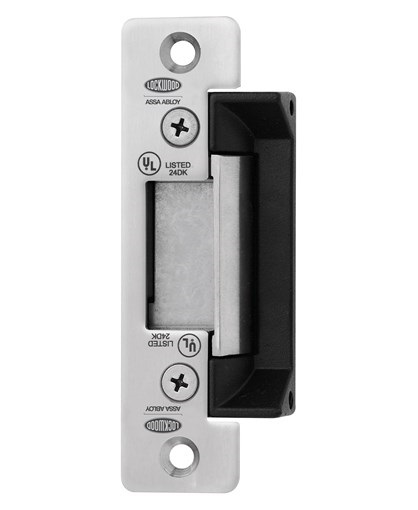

Lockwood ES110-1M Weather Resistant Strike, Recessed Mount, 680kg, PTL/PLO, 12V DC

The ES110 is a cost efficient robust aluminium strike with a solid construction, built with a one-piece cast aluminium body and stainless steel striker. Having a deeper than normal strike-keeper area, the ES110 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions. Extension lips are available to accommodate the installation of electric strikes on door frames with different thicknesses.

• 680Kg static strength rating
• Fail safe / Fail secure changeable on site
• Optional mounting kit
• IP56 weather resistant
• Suitable for 18mm latch with 3mm door gap
• 12V DC, 243mA @12V DC

Datasheets

• PD-100111-060 Datasheet.pdf
