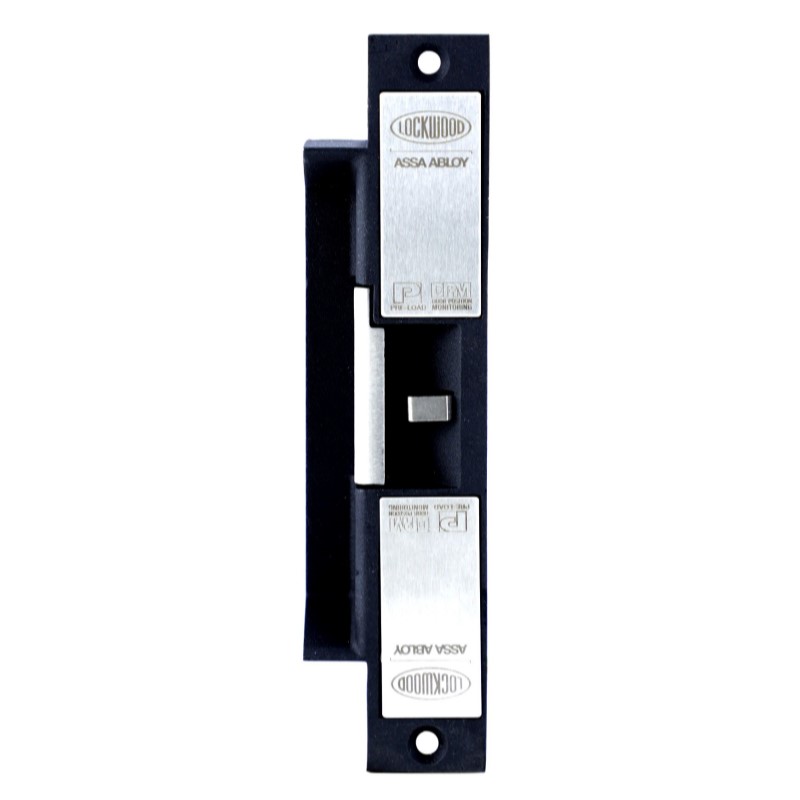

The Lockwood ES9100 PD-119100-000 electric strike provides all the key features and specifications of the ES9000 but with the added inclusion of Door Position Monitoring (DPS) via an integrated reed switch. The ES9100 body is also predrilled for the inclusion of 25mm, 50mm or 75mm extension lips, if required.

The Lockwood Padde Series ES9100 has been designed to suit the harshest commercial environments and has the unique feature of the ability to operate with up to 25kg of pre-load pressure on the keeper. Pre-load is a common condition that is caused by pulling on a door before it unlocks, the weight of warped or drooping doors, seals on fire doors or by differential air pressure created when heating and cooling systems are in use. Standard features include multi voltage 10 - 30VDC and field changeable settings from fail safe to fail secure. Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.

• Operates under pre-load up to 25kg
• Door Position Monitoring (DPS) output
• Lock dtatus and latch position monitoring output
• Easy field selectable fail safe/fail secure
• Multi voltage 10-30VDC
• 1300kg holding force
• 2.5 million cycles endurance rating
• Latch keeper is significantly quieter in operation
• Weather resistant (IP54)
• Pre-drilled for extension lips
• Mounting tabs included
• Non-handed
• 5-year Tricare Warranty (Padde Series)
• Built in protection diode
