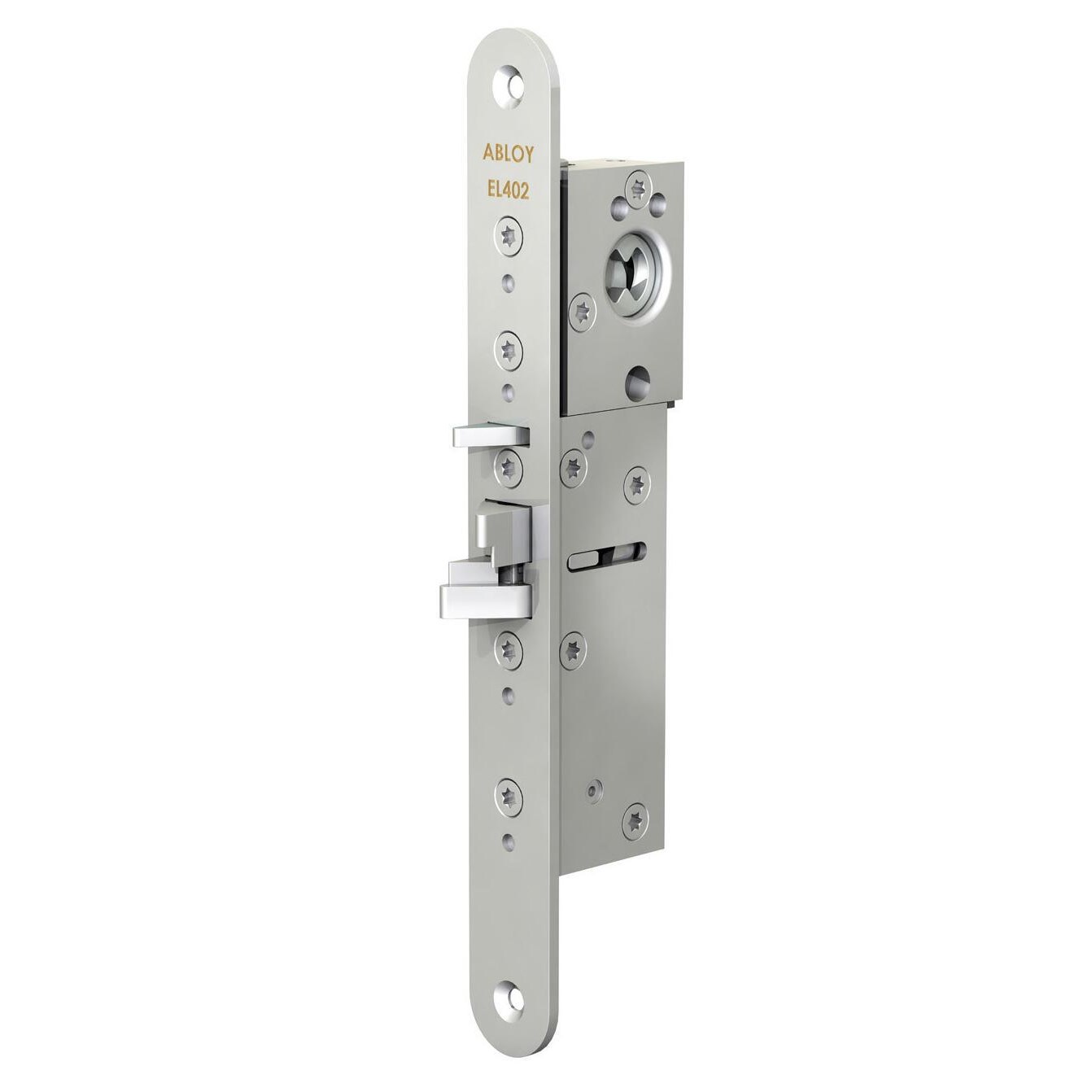

Lockwood EL402 Electric Mortice Solenoid Lock, Narrow, Monitored, PTL, 12-24Vdc

PD-EL402-001
AVAILABLE TO ORDER
Lockwood EL402 Electric Mortice Solenoid Lock, Narrow, Monitored, PTL, 12-24Vdc
Warehouse Status
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mount Waverley - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER
Canning Vale - WA
AVAILABLE TO ORDER

The Lockwood PD-EL402-001 electric mortice solenoid lock is a fail safe lock that can be controlled by a variety of electrical impulse generating equipment such as card readers, keypads and timers. It can also be connected to automatic swing door operators and are an excellent solution for access control systems. Because of its symmetrical trigger bolt, the PD-EL402-001 can be used in double swing doors. The lock can always be opened mechanically by key or by thumb turn and the bolt deadlocks automatically when the door closes.

  • Voltage: 12-24 VDC
  • Current: 550mA (max) 240mA holding at 12VDC
  • 270mA (max) 110mA holding at24Vdc
  • Monitoring microswitch: 0.4A 30V AC (deadlock status)
  • Operational temperature range: -20 degrees to +60 degrees
  • Case/cover: high purity zinc alloy
  • Forend: 25mm
  • Backset: 25, 28, 30, 33, 35mm (adjustable)
  • Latchbolts: double action latch 14.5mm
  • Door clearance; 3-5 mm
  • Cylinder ABLOY classic or ABLOY Disklock Pro
  • Cabling recommended: 18AWG (0.82mm2) cable runs up to 30m
  • Furniture: ABLOY architectural hardware
  • Standard finishes: chrome plated forend, lock case yellow chrome plated

  • Fail safe - PTL
  • Non-handed symmetrical trigger bolt
  • Visual lock status indicator
  • Immediate release of deadlocking
  • Push or pull operation
  • Wide operating voltage
  • Adjustable backset Between 25 - 35 to suit most narrow style applications
