Paradox IP150+ Internet Module for Insite Gold, IP Reporting, Remote BabyWare Programming

PDX-IP150+
AVAILABLE TO ORDER
Paradox IP150+ Internet Module for Insite Gold, IP Reporting, Remote BabyWare Programming
Warehouse Status
Seven Hills - NSW
IN STOCK
Waterloo - NSW
IN STOCK
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
IN STOCK
Dudley Park - SA
IN STOCK
Tulla Central Warehouse- VIC
IN STOCK
Mulgrave - VIC
IN STOCK
Balcatta - WA
IN STOCK
Canning Vale - WA
IN STOCK

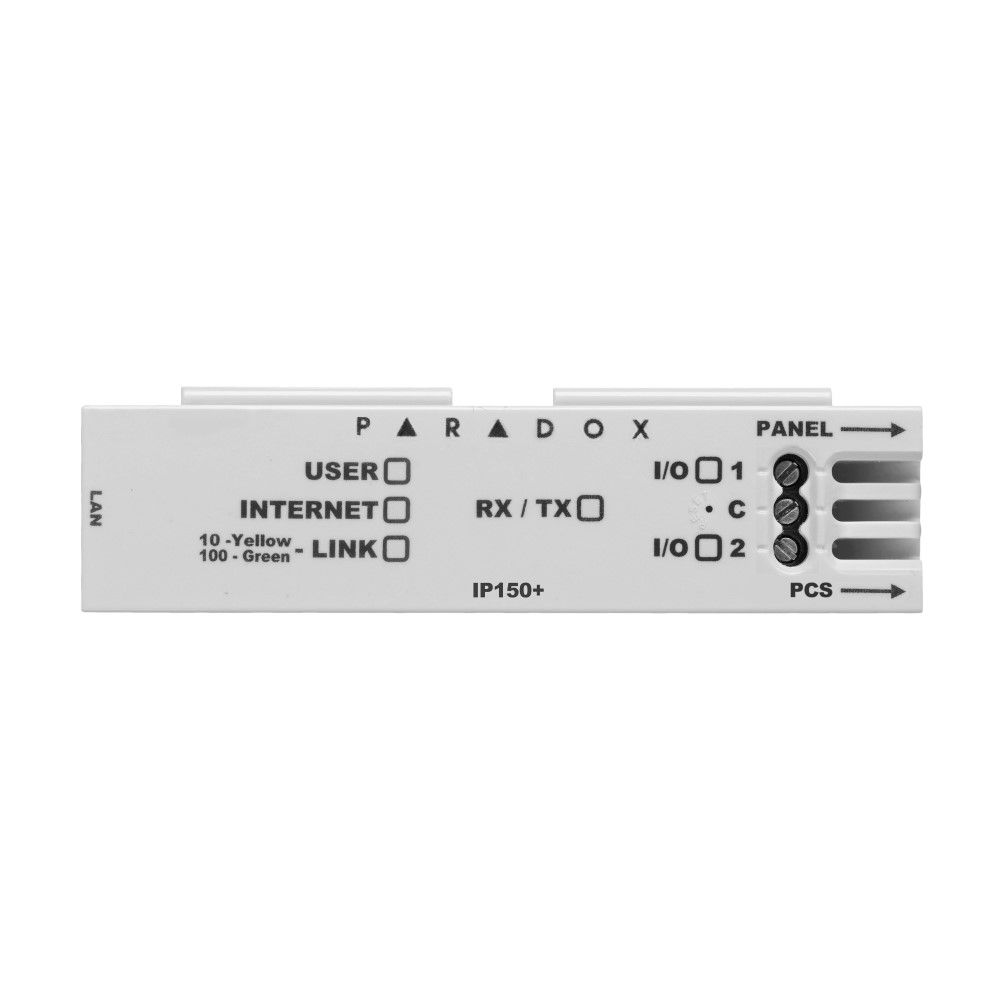

The Paradox IP150+ is a direct replacement to the IP150 internet module. This module is a SWAN server compatible internet communication device that connects at the panel and enables the user to control and monitor a security system remotely over the internet via the Insite Gold App. The operation is identical to the IP150 with improved performance plus the addition of a safe upgrade feature and a diagnostic tool. The safe upgrade feature adds protection against a failure during an upgrade, which enables the IP150+ to revert to the previous firmware version. The diagnostic tool allows Paradox to troubleshoot any connection issues encountered in the field.

  • Panel Compatability: Digiplex EVO - V2.02 and higher, Spectra SP - V3.42 and higher, MG5050 - V4.0 and higher
  • Enccryption: MD5 and RC4
  • Current Consumption: 100mA
  • Input Voltage: 13.8VDC, supplied by the panel serial port
  • Dimensions: 10.9cm x 2.7cm 2.2cm

  • Compatible with BabyWare - V5.4.3 or higher
  • Improved and stable communication
  • Polling with Swan at 15-minute intervals
  • Swan disable feature for communication in closed networks
  • Safe upgrade feature
  • Internal diagnostic logs
  • SSL support for sending secure email messages
  • EN50136 compliant
  • Compatible with Paradox Spectra, Magellan and EVO control panels
  • Supports HTTPS
  • Easy installation with built-in clip for mounting
  • Report control panel events via IP to the Paradox IPR512 GPRS/IP monitoring receiver
  • View live status of all zones and partitions via Insite Gold app
  • Very low bandwidth consumption

Datasheets
