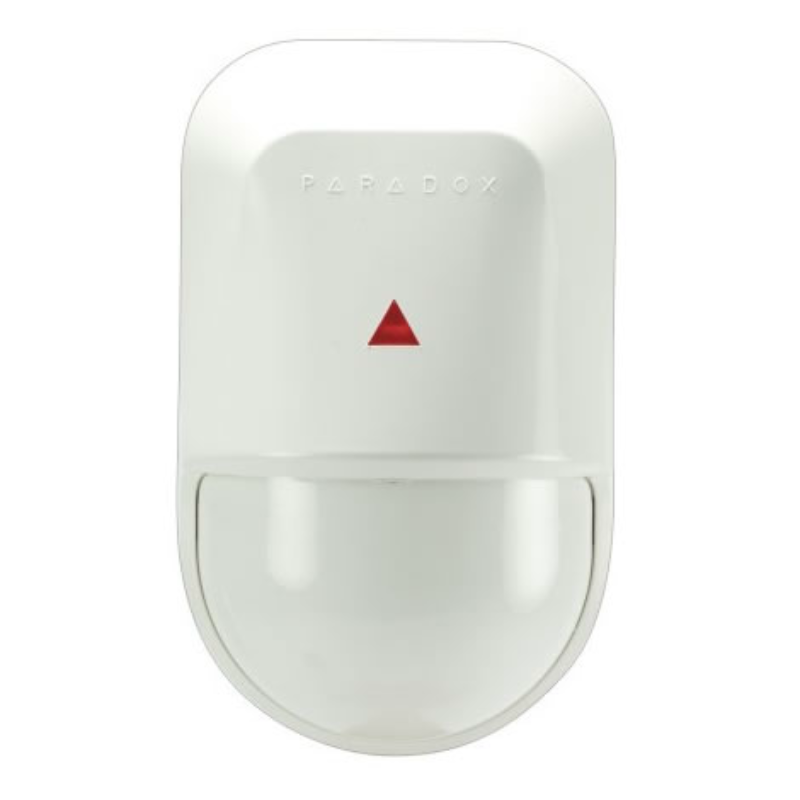

Paradox's NV5 is the next generation of the ENVY Digital Detection series. NV5 has evolved from its predecessor NV500 - new firmware and improved hardware enables faster and more reliable detection, false alarm immunity and more, packaged in the sleek design you are familiar with.

• Infrared motion detector managed by Full Authority Digital Electronics Control (FADEC)
• Paradox's Hybrid Cylindrical-Spherical 1" lens with 3rd generation 3D Lodiff Fresnel segments- 10 x 10m, 90deg viewing angle, and 0.5m to max range (no dead zone beam pattern)
• Paradox's equalised detection pattern - ensures equal sensitivity throughout the protected area
• Paradox Super Creep down-looking beam optic option for straight down detection
• Pet Resistance up to 16kg
• Dual/Single Edge Processing selection
• Paradox patented Auto Pulse Signal Processing (APSP) with settings for normal or high interference environments
• Digitally equalised temperature compensation; unit performance specifically tailored to obtain same catch capability at all specified operating temperatures
• Digital Sensitivity trimmer adjustment with five range levels and LED feedback, allows for perfect unit adjustment for all room sizes
• Optional wall/ceiling mount bracket
• Miniature yet easy to install with no PCB removal or adjustment
• CE and EN50131 Grade 2 approved
• Interchangeable lenses; 90deg standard lens

Datasheets

• PDX-NV5 Datasheet.pdf
