The PowerShield ATS is designed to ensure continuous power availability by connecting to two independent power sources - a primary and a secondary. In the event of a primary source failure, the ATS automatically transfers the load to the secondary supply, maintaining uninterrupted operation of connected equipment.

More than just a transfer switch, this versatile unit also functions as a Maintenance Bypass Switch (MBS) and a Power Distribution Unit (PDU). With user-selectable input control via the front panel, it enables live UPS maintenance or replacement without disrupting power to the load - ideal for servers and other critical devices with only a single power input.

The PowerShield ATS is a reliable, space-efficient solution for maintaining uptime in mission-critical environments, where power continuity and serviceability are non-negotiable.

• Dual Power Inputs: Connects to two independent power sources (primary and secondary)
• Automatic Transfer: Seamlessly switches to the secondary source if the primary fails
• Power Rating: Supports up to 3kVA load capacity
• Maintenance Bypass Switch (MBS): Enables live UPS maintenance or replacement without interrupting power
• Power Distribution Unit (PDU): Distributes power to multiple devices

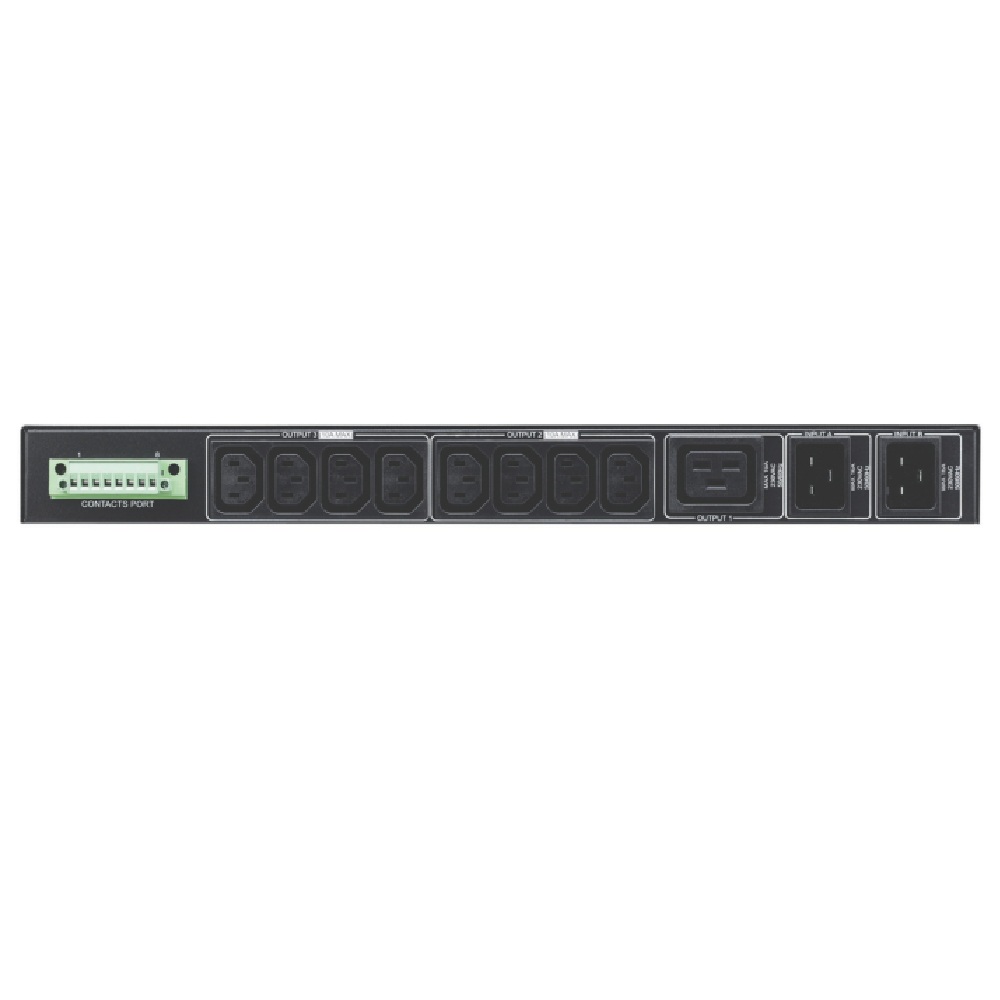

• Inputs: Dual 15A C20 power inlets
• Outputs: 1 x C19 and 8 x C13 outlets

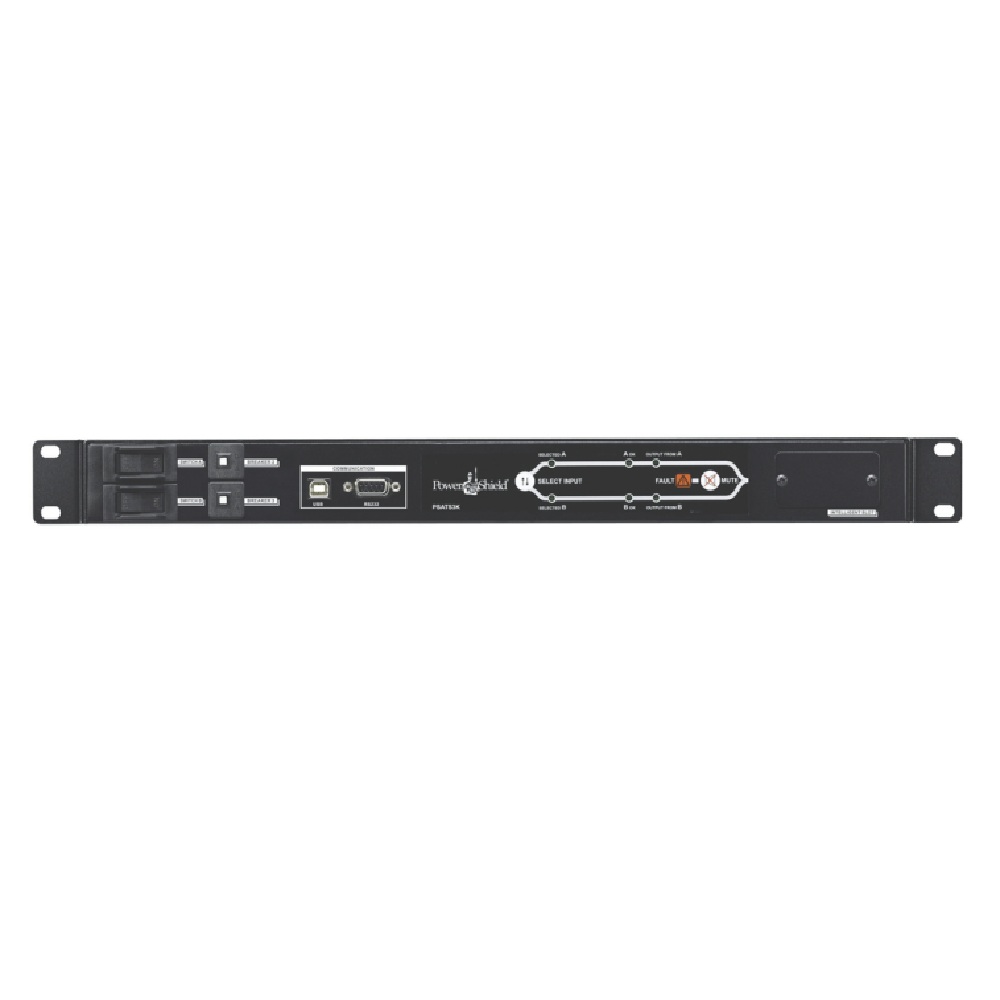

• User Control: Front panel input selection for manual override
• Rack Mountable: Designed for 19" rack installations
• Space-Efficient: Compact design suitable for data centres and server rooms
• Uninterrupted Operation: Ideal for critical equipment with single power input
• Built-In Redundancy: Ensures continuous power availability

Datasheets

• PSH-PSATS3K Datasheet.pdf

User Manuals

• PSH-PSATS3K User Manual.pdf
