Rosslare Intelligent Power Supply to suit AYC Readers / Keypads, 2x Relay Outputs

ROS-PSC25TB
AVAILABLE TO ORDER
Rosslare Intelligent Power Supply to suit AYC Readers / Keypads, 2x Relay Outputs
Warehouse Status
Seven Hills - NSW
IN STOCK
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
IN STOCK
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
IN STOCK
Mulgrave - VIC
IN STOCK
Balcatta - WA
IN STOCK
Canning Vale - WA
IN STOCK

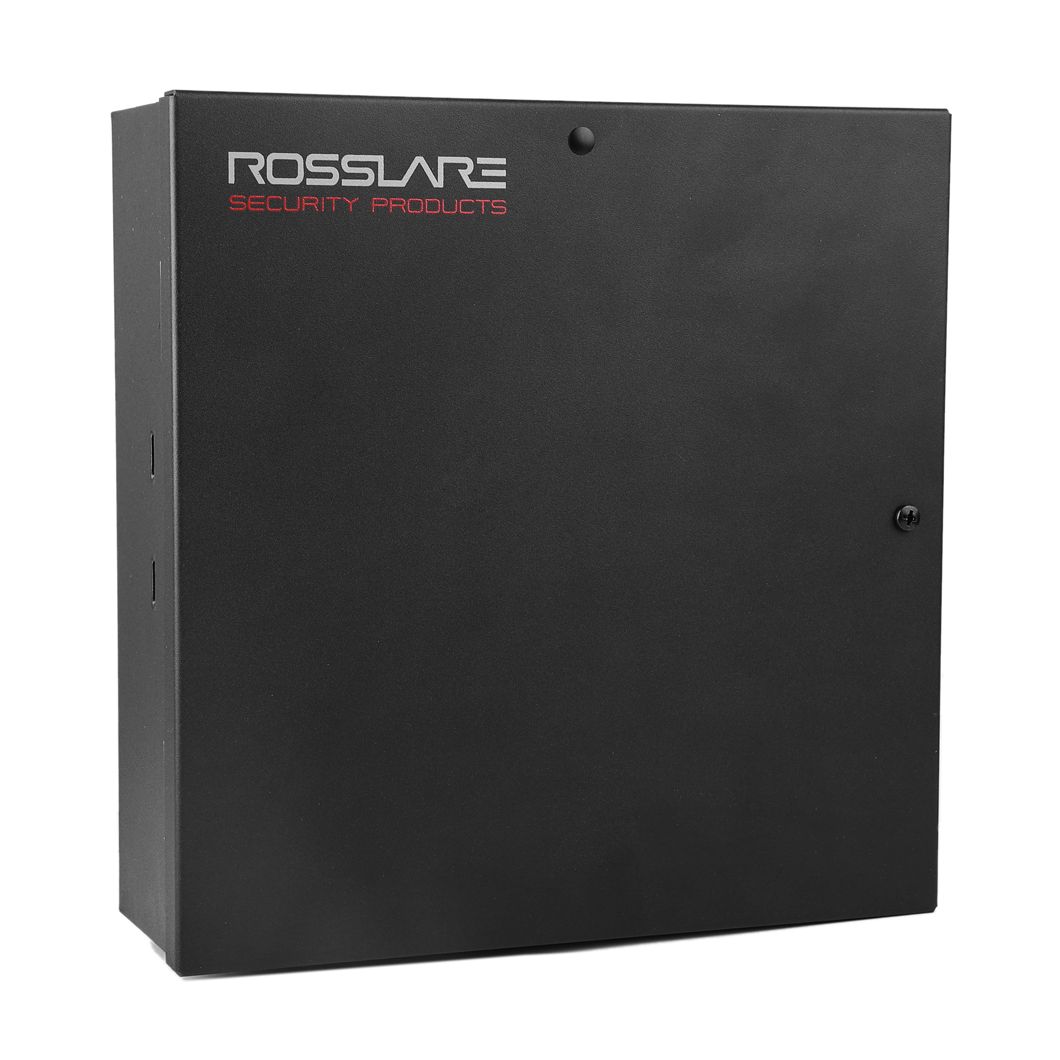

The Rosslare ROS-PS-C25TB inteligent power supply is the ultimate package for an all in one, secure standlone solution. With the ability to connect any of Rosslare's AYC reader or keypad range, add a battery backup, wire a REX input and drive two relays, it provices suitable options for isolated environments.

The ROS-PS-C25TB includes two independant power circuits with PTC (self-resetting fuses) that provide power to the intelligent board as well as power to the external output that can drive a strike, providing stability in voltage regulation.

  • Input: 110-240V AC, 50/60Hz, 1.5A with C14 plug
  • Output: 14.5V DC, 2A (shared across 2x outputs)
  • Battery Charge Current: 1.5A
  • Relay: 2x, 5A Form C
  • Dimensions: 228mm x 224mm x 84mm
  • Weight: 2.21kg

  • Compatible with Rosslare AYC readers and keypads
  • 2x relay outputs (1x for a door, 1x for an auxiliary)
  • Includes ME-0515M power supply and MD-25TB secure I/O module
  • Enclosure to fit standard 12V 7Ah lead acid batteries
  • Preventative deep discharge circuitry
  • C14 inlet plug
  • C13 AC cable
  • Enclosure lock
