SEE Surface Mount Wedge Housing, IP66, Vandal, Coin Lock, 12mm Glass Assembly
SEE-DOT-SMW5
AVAILABLE TO ORDER
SEE Surface Mount Wedge Housing, IP66, Vandal, Coin Lock, 12mm Glass Assembly
| Warehouse | Status |
|---|---|
| Seven Hills - NSW |
AVAILABLE TO ORDER
|
| Loganholme - QLD |
AVAILABLE TO ORDER
|
| Tulla Central Warehouse- VIC |
AVAILABLE TO ORDER
|

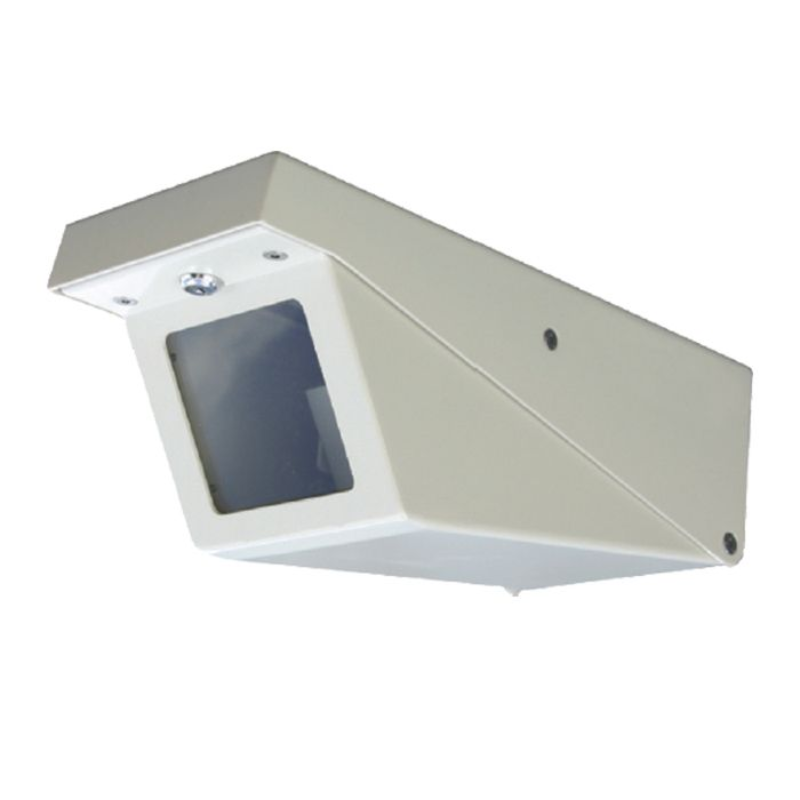

The DOT-SMW5 IP66 Outdoor wedge housing is designed for high security applications where corrosion resistance and mechanical strength are required.
Manufactured from powder coated zinc plated steel and fitten with a 12mm glass assembly, the DOT-SMW5 offers a single keylock and dual captive security screw access and the option of surface run conduit to enter the enclosure directly without conversion to flexible conduit.
- Construction: 2.5mm zinc plated powder coated mild steel.
- Finish: Mossvale sands (light beige) polyester powder coat.
- Lens: 6.0mm polycarbonate.
- Access: 4 x 6.0mm stainless steel security screws plus one Selectrix coin keylock as standard.
- Cable Entry: 2 x 20mm entries.
- Max. Camera Size: 265mm.
- Weight: 6.4kg.
