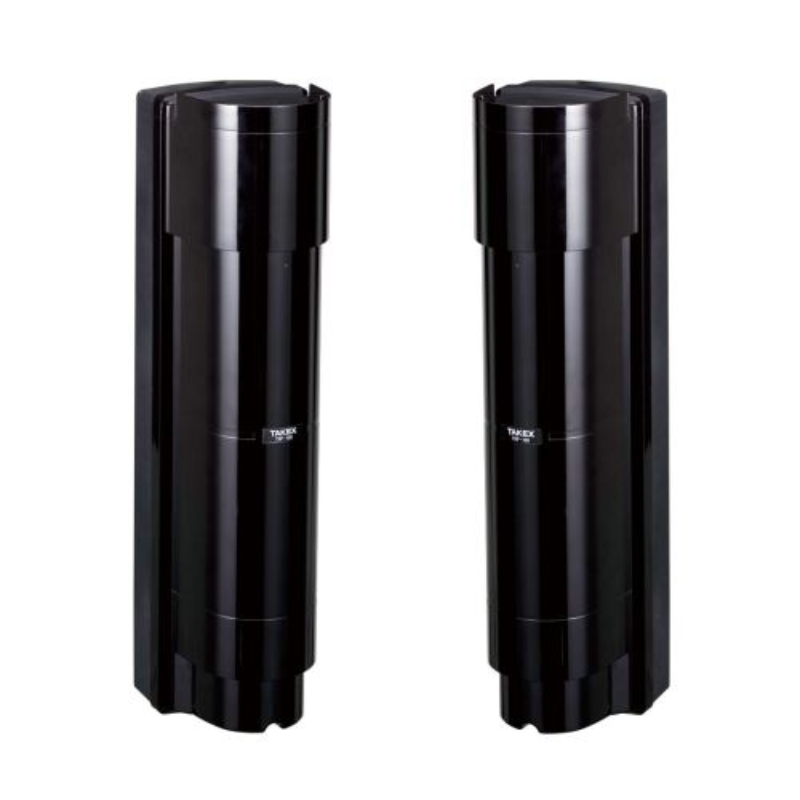

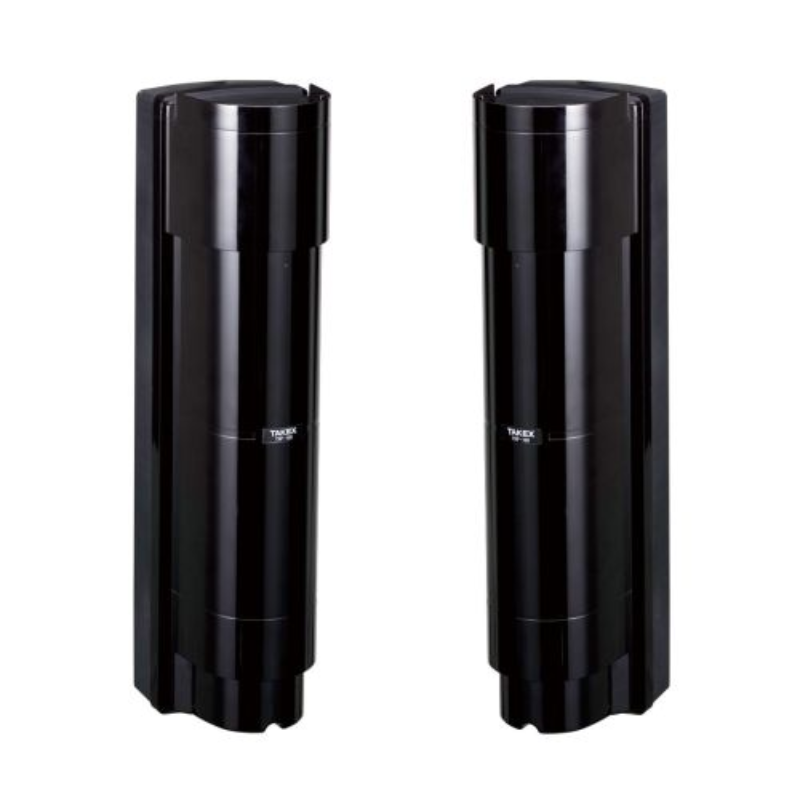

The Takex TXF-125E is a battery operated, quad photoelectric beam sensor designed for compatibility with leading wireless systems; reducing the time and cost of permanent installations and allowing the use of Active Infrared Beams on rapid deployment or temporary installations. With 4 selectable frequencies, multiple beam sets can be used in both linear and stacked configurations without risk of crosstalk, further assisted by a transmitter power function that allows the user to set 25/50/75/100m zones.

Two 3.6V (17Ah) batteries (supplied separately) can power each unit for approximately 5 years of service, and &;plusmn;90&;deg; horizontal/&;plusmn;20&;deg; vertical adjustable optics cater for the most dynamic of terrains

• 4 synchronised high power beams
• 4 selectable operation ranges 25/50/75/100m
• 4 selectable beam channels to prevent crosstalk
• Up to 5-year battery life using 2 x LS 33600 batteries per unit (supplied separately)
• Increased beam separation minimises nuisance alarms
• Vivid internal colour aids beam alignment procedure
• &;plusmn;90&;deg; horizontal &;plusmn;20&;deg; vertical adjustable sensor heads
• Environmental monitoring circuit
• IP65 housing

Datasheets

• TAK-TXF125E Datasheet.pdf
