Tactical 8 Way PDM, 1A Fuses, Fault Relay Output, Fire Trip input, 12VDC

TP-PDM8-12VDC
AVAILABLE TO ORDER
Tactical 8 Way PDM, 1A Fuses, Fault Relay Output, Fire Trip input, 12VDC
Warehouse Status
Seven Hills - NSW
IN STOCK
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
IN STOCK
Mulgrave - VIC
IN STOCK
Balcatta - WA
IN STOCK
Canning Vale - WA
IN STOCK

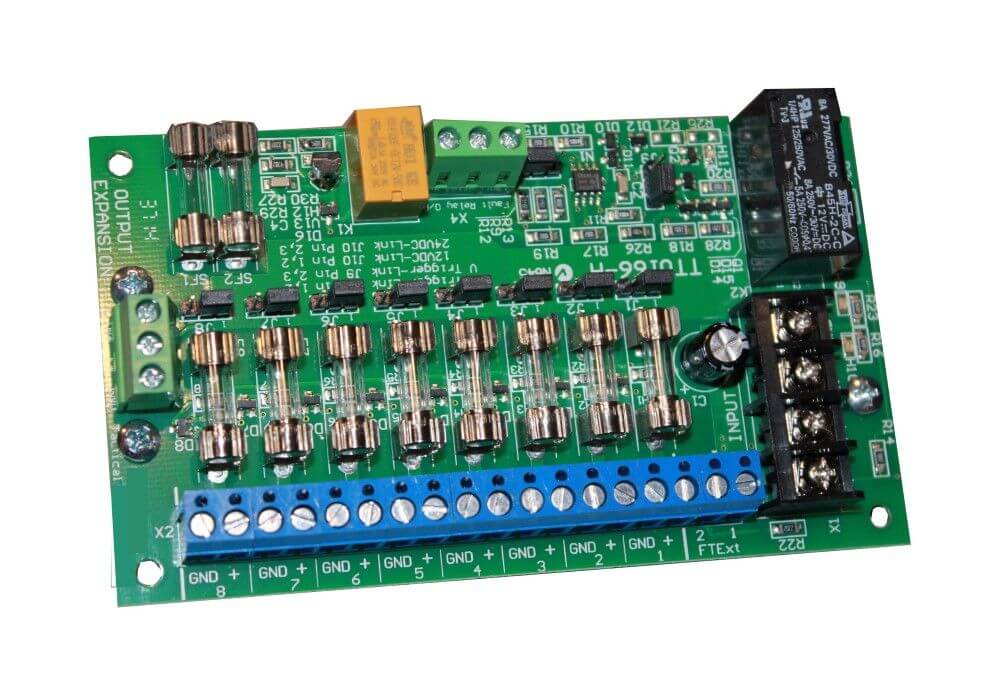

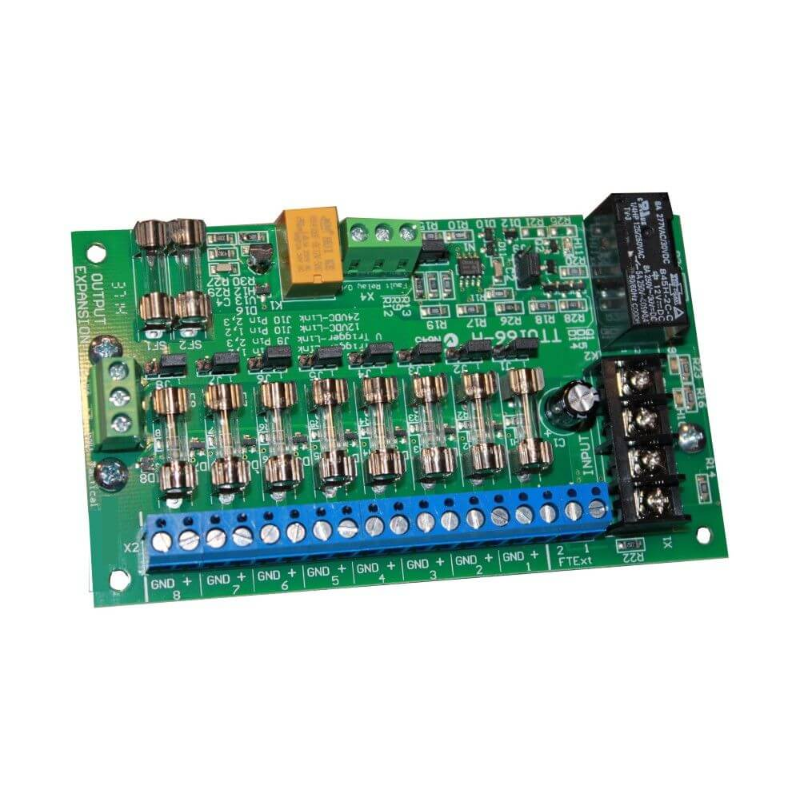

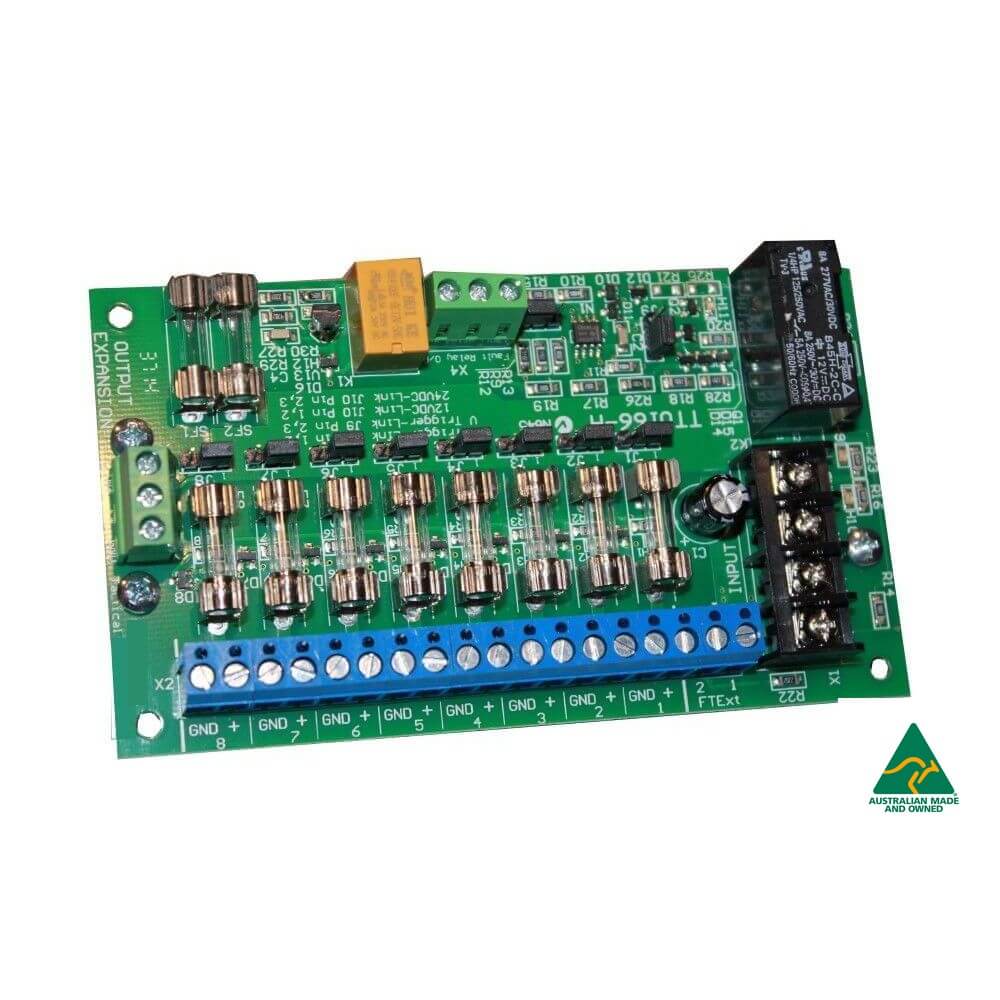

The Tactical TP-PMD8-12VDC features an integrated monitored fire trip input via 22K EOL resistor or non monitored via voltage trip. Each of the eight outputs can also be configured to remove power in the event of a fire trip or remain active via jumper switches. Additionally, the unit contains a common fault relay output to signal failure of any individual circuit. This output may be used to drive DVR alarm inputs, security alarm inputs / building management systems or a local sounder / strobe to inform personnel of equipment failure.

  • Input Voltage: 12VDC
  • Outputs: 8 x M205 1A fuse protected
  • Total Current: 10A maximum
  • Relay Rating: 1A SPDT
  • Mounting: DIN rail or adhesive feet
  • Dimensions: 130 L x 75 D x 45 H mm
  • Weight: 145 gm

  • Monitored fire trip
  • 8 individual 1A fuses
  • 2 spare fuses
  • Common fault relay SPDT
