Tactical Relay Board, 12VDC DPDT Dual Input, Buffered, 8x1A Contacts Strip

TP-RLB8-DP
AVAILABLE TO ORDER
Tactical Relay Board, 12VDC DPDT Dual Input, Buffered, 8x1A Contacts Strip
Warehouse Status
Seven Hills - NSW
IN STOCK
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
IN STOCK
Mulgrave - VIC
IN STOCK
Balcatta - WA
AVAILABLE TO ORDER

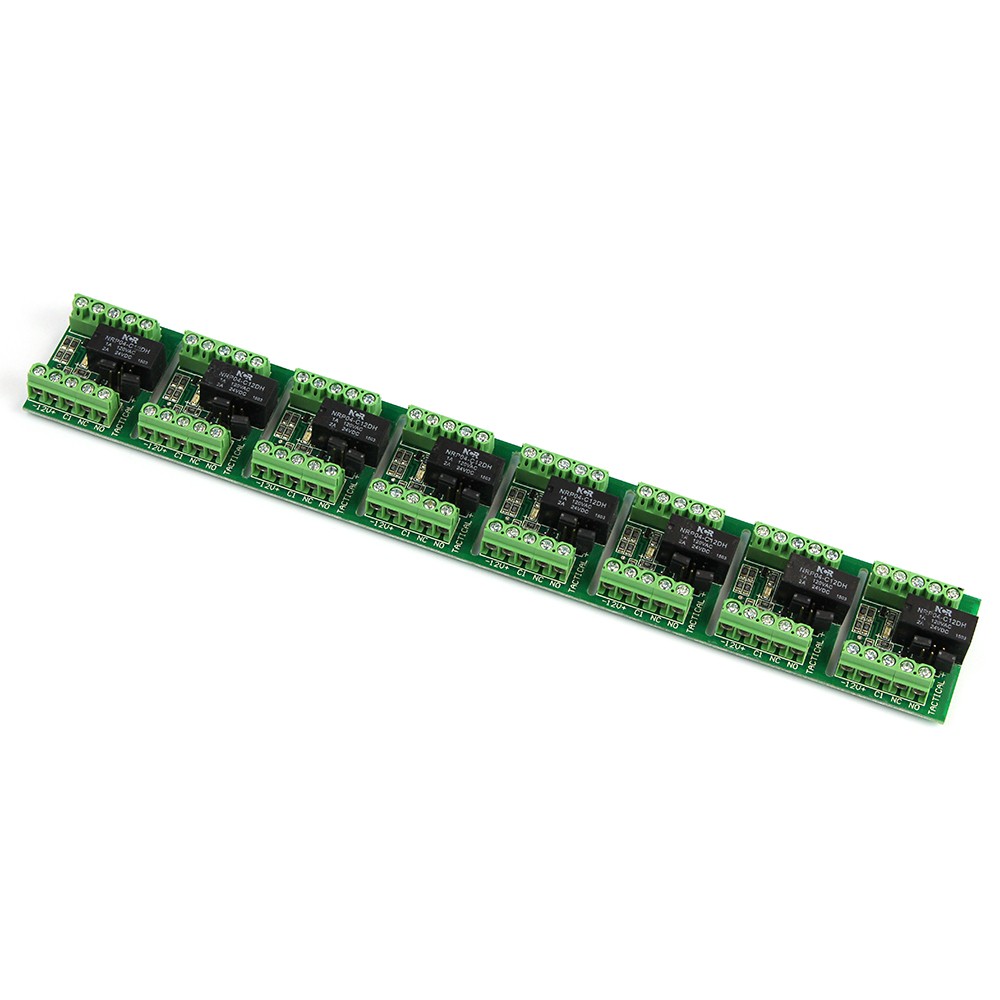

The 12Vdc powered TP-RLB8 relay board features a strip of eight (8) individual dual buffered, Double Pole / Double Throw (DPDT) Relays which share a common power rail. Each relay features a transistor buffered input which may be triggered by any positive DC voltage over 5Vdc or by 0Vdc. (Inputs are provided for + or - trigger). An onboard LED illuminates when the relay is triggered. Each relay segment is provided with a common pole link for each relay pole (DPDT=2 Poles) By setting this link, either +ve or -ve may be jumpered to the common of either relay pole.

  • Input voltage 12 - 15Vdc
  • DPDT relay contacts rated at 1A / 30Vdc
  • Trigger threshold : + 5V to 12Vdc or 0V
  • Current draw 47 mA when relay is active
  • Dimensions: 275(L) x 42(W) x 20(H) mm

  • Dual buffered input (+ trigger 5V-12Vdc or - trigger 0V)
  • Relay contacts may be voltage free or jumpered to + or - ve
  • May be separated into multiples or single units
  • Power needs only needs to be applied to the first relay in the strip

Datasheets
