Tactical Power Steel Enclosure Kit to suit 2.5A, 5A, 6A & 10A Modules, 340W x 430H x 185D

TP-TPBOX-15D-KIT
AVAILABLE TO ORDER
Tactical Power Steel Enclosure Kit to suit 2.5A, 5A, 6A & 10A Modules, 340W x 430H x 185D

The Tactical TPBOX-15D-KIT is a durable steel enclosure designed by Tactical Power Products to house various power modules and batteries. Made from 1.5mm Australian steel with a powder-coated APO grey finish, it supports up to two Power Distribution Modules (PDMs) and accommodates 2 x 12V 7Ah or 2 x 17Ah SLA batteries (or one 12V 17Ah battery). The kit includes threaded standoffs, micro tamper switches, mounting hardware, battery leads, and lid screws, making it ideal for secure and organized power setups in industrial and commercial environments.

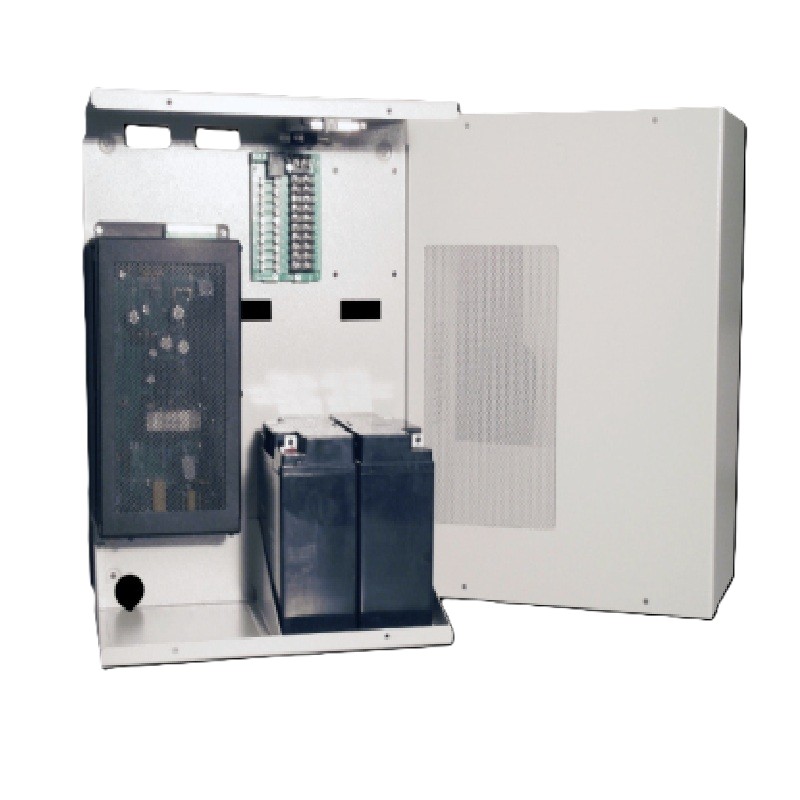

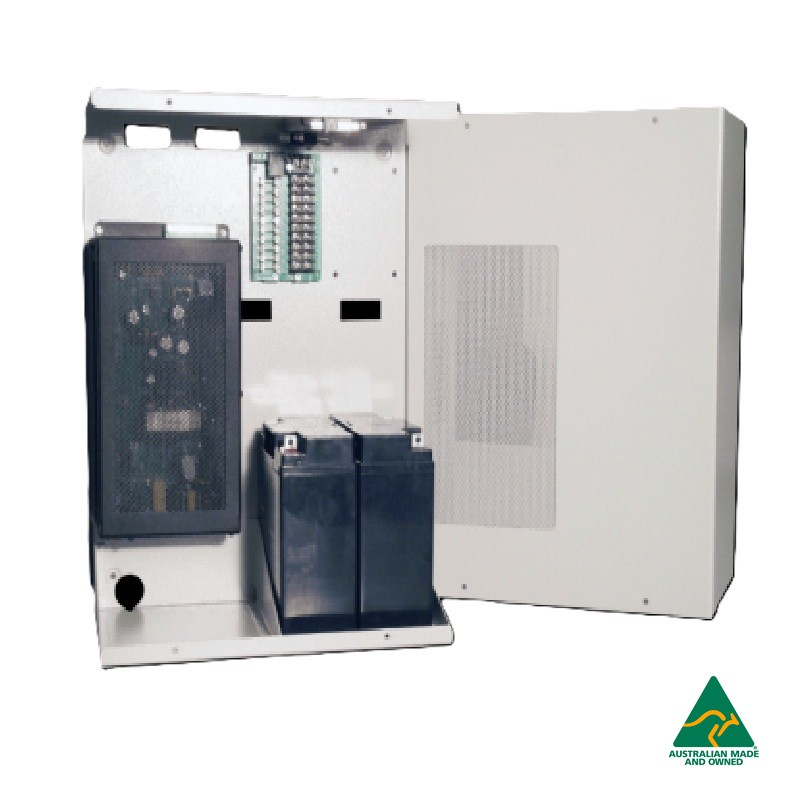

Note: TPBOX-15D-KIT shown in the image with power module, batteries and PDM for display purposes only. Modules and batteries purchased separately.

  • Material: Zinc seal steel
  • Finish: grey powder coated texture
  • Tamper Switches: front and rear micro switches
  • Module hardware: 4 x M4 x 6mm screw, 4 x M5 external tooth washers
  • Battery Leads: black and white 12A rated leads fitted with ring connector
  • Lid Screws: 4 x M4 x 16mm pan phillips screws
  • Dimensions: 340 W x 430 H x 185 D (mm)
  • Weight: less than 5kgs

  • Made from 1.5mm Australian steel
  • Finished with powder-coated APO grey texture for durability and corrosion resistance
  • Dimensions: 340W x 430H x 185D mm
  • Designed to house: 2 x 12V 7Ah or 2 x 17Ah SLA batteries or 1 x 12V 17Ah battery
  • Supports Tactical 2.5A, 5A, 6A, and 10A power modules
  • Includes threaded standoffs for mounting up to 2 Power Distribution Modules (PDMs)
  • Power module mounting hardware
  • Battery leads
  • Lid screws
  • Tamper switches enhance physical security
  • Flexible layout supports various power configurations
