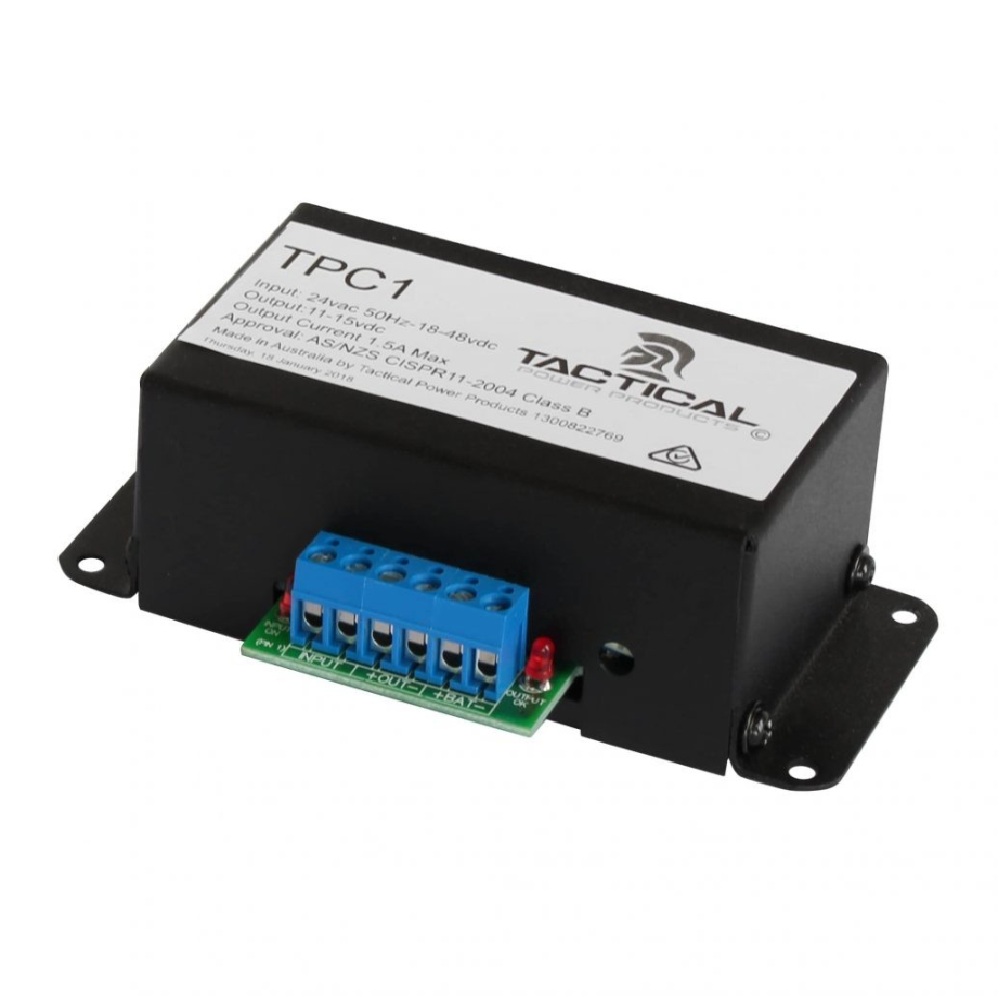

Tactical Power Converter, AC-DC or DC-DC, 24VAC or 24-48VDC to 11-15VDC at 1.5A
TP-TPC1
AVAILABLE TO ORDER
Tactical Power Converter, AC-DC or DC-DC, 24VAC or 24-48VDC to 11-15VDC at 1.5A
The Tactical TP-TPC1 is a DC - DC/AC - DC converter which has been designed to convert either 24Vac or 18-48Vdc to a reliable, regulated output voltage between 11-15Vdc (12V nominal) rated at 1.5A. It was created with CCTV, access control and electronic locking applications in mind.
Featuring output over current, short circuit and over temperature protection, the TP-TPC1 will automatically reset when the fault condition is rectified. Output voltage may be adjusted to 13.8Vdc, allowing a 12V SLA (Sealed Lead Acid) battery to be charged via the in-built battery charger output terminals.
Note: Input voltage must not exceed 48Vdc - permanent damage may result.
- Input Voltage: 18Vdc - 48Vdc or 24Vac nominal
- Output Voltage: Factory set to 12.2Vdc (11 - 15Vdc adjustable)
- Output Current: 1.5A Max.
- Output protection current limiting with auto recovery, thermal shutdown
- Operating Temperature: 0 Degree C to 45 Degree C
- Soft Start: 1 - 2 seconds (typical)
- EMC Standards: CISPR11:2004 - Class B
- Dimensions: 115 W x 65 D x 40 H mm
- Adjustable output voltage
- Onboard battery charger
- Over current protection
- Short circuit protection
- Over temperature protection
- Compact size & light weight
