Tactical Power Supply, ECO, 13.5VDC, 3.5A, 13.5V Charger, AC Fail & Low Battery Outputs

TP-TPS13-3.5DC
AVAILABLE TO ORDER
Tactical Power Supply, ECO, 13.5VDC, 3.5A, 13.5V Charger, AC Fail & Low Battery Outputs
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
IN STOCK
Canning Vale - WA
IN STOCK

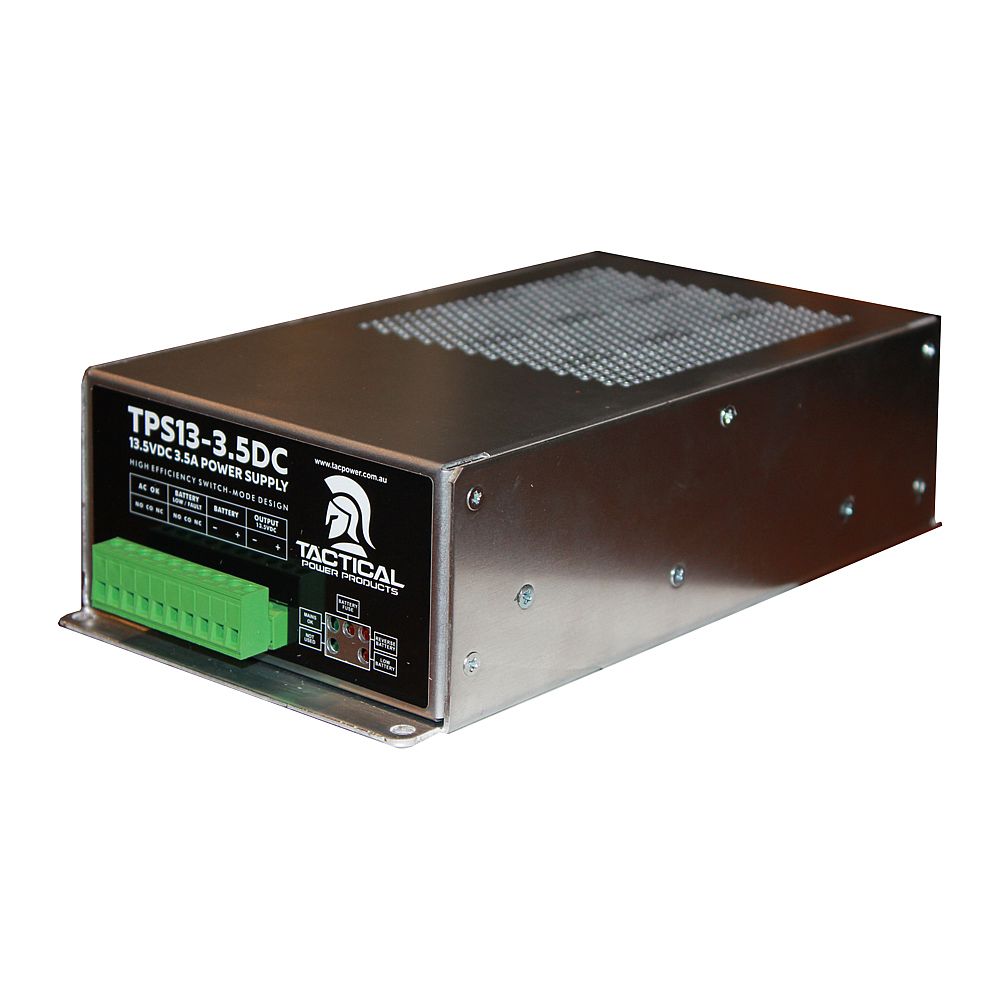

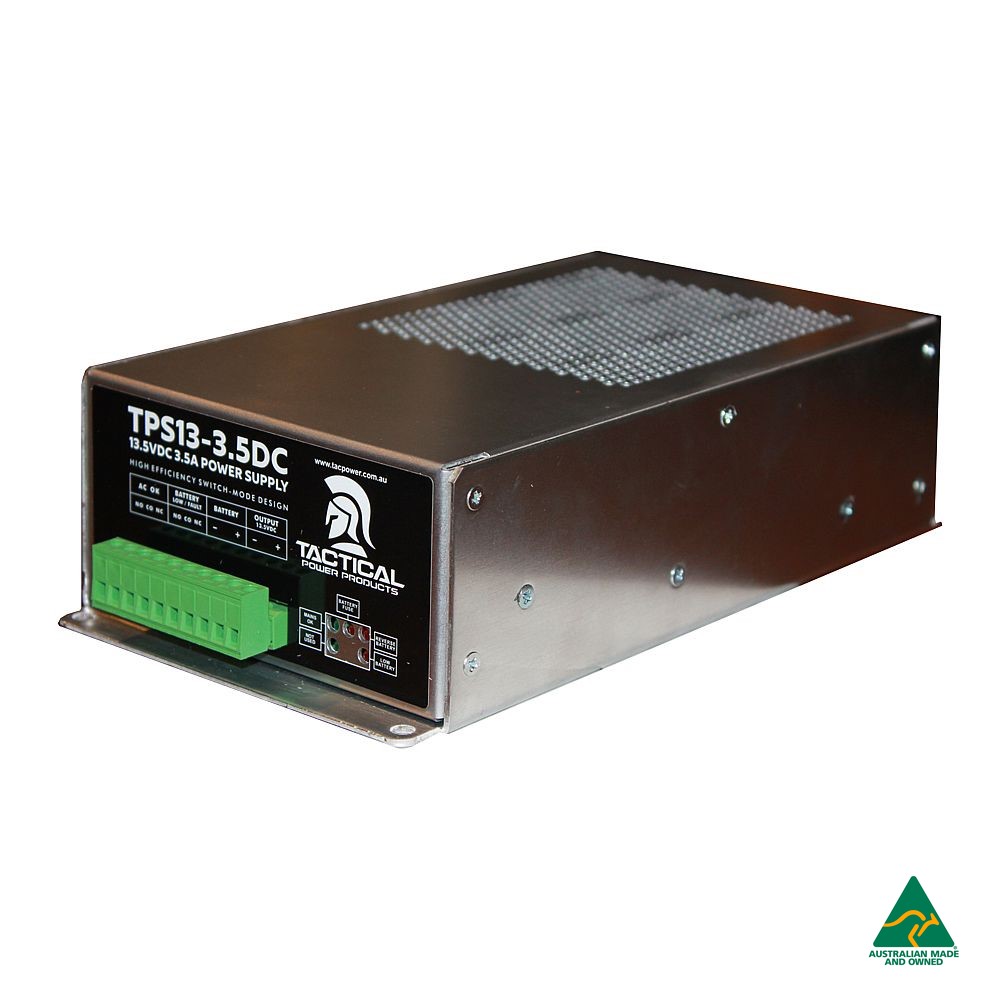

The Tactical TP-TPS13-3.5DC is a dual channel, switch mode power supply that can deliver 13.5Vdc at a continuous load current of 3.5 amps, as well as a battery charge current of 300mA at 13.5Vdc. This gives it a total output of 3.8 amps. The output is short circuit and overload protected with auto reset.

  • Input voltage: 240Vac at 50Hz
  • Input current: 1A at full load
  • Output voltage: 13.5Vdc
  • Output current: 3.5A continuous
  • Battery charge: 13.5Vdc at 300mA
  • AC input indication: SPDT relay and green LED
  • Low battery indication: SPDT Relay and red LED
  • Operating temperature: 0 - 40 degrees Celsius without derating
  • Weight: 668g
  • Dimensions: 225mm x 120mm x 60mm
  • Colour: mill finish aluminium
  • Safety standards: AS/NZS 60950.1:2015
  • EMC Standards: AS/NZS CISPR 32:2015 Class B

  • 3.5A continuous load output
  • 300mA battery charge output
  • Short circuit protection
  • Form C relays for AC fail and low battery
  • LED indicators for AC and battery condition
  • Mill finished aluminium case
  • 3 years warranty

Datasheets
