Ubiquiti AirFiber X 5GHz Dish Antenna, 23dBi, Slant 45
UB-AF-5G23-S45
AVAILABLE TO ORDER
Ubiquiti AirFiber X 5GHz Dish Antenna, 23dBi, Slant 45
| Warehouse | Status |
|---|---|
| Seven Hills - NSW |
AVAILABLE TO ORDER
|
| Fyshwick - ACT |
AVAILABLE TO ORDER
|
| Loganholme - QLD |
AVAILABLE TO ORDER
|
| Tulla Central Warehouse- VIC |
AVAILABLE TO ORDER
|

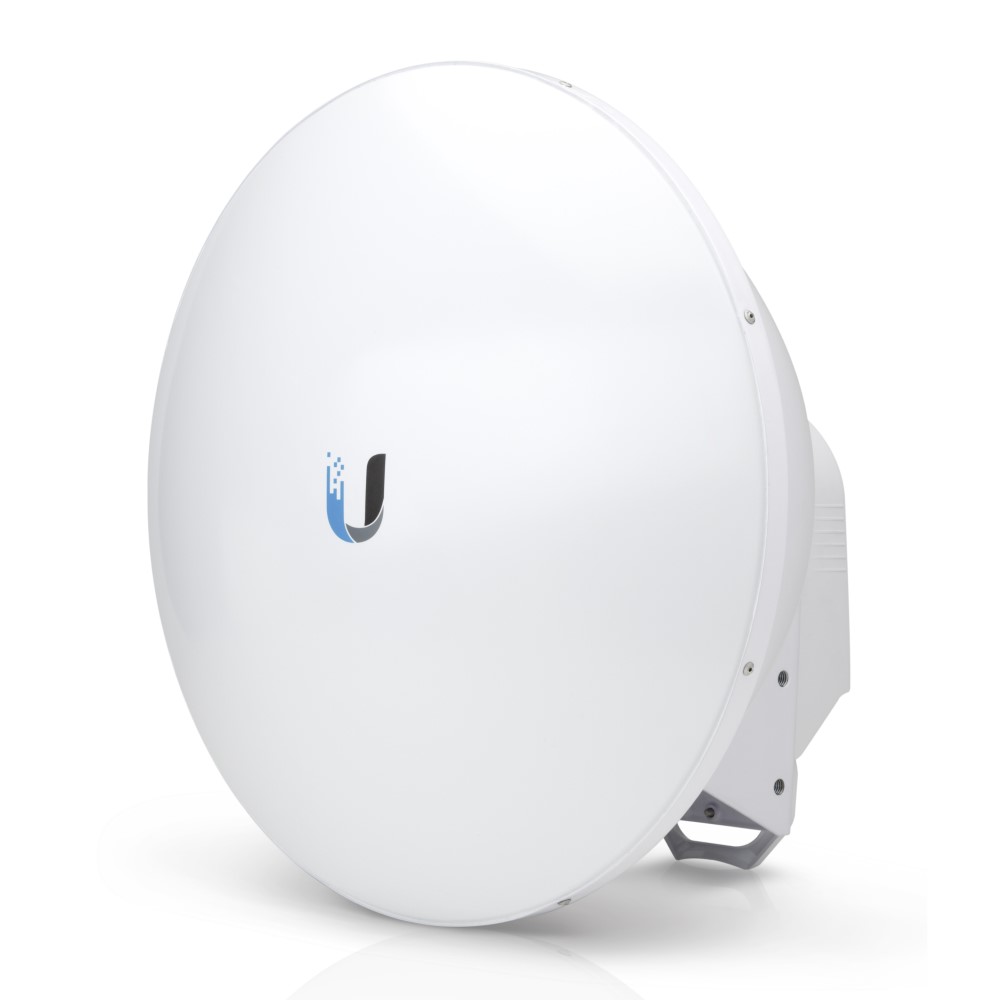

The UB-AF-5G23-S45 is a 5 GHz, 23 dBi directional antenna from Ubiquiti, designed for long-range Point-to-Point (PtP) wireless links using airFibre X radios.
- Frequency Range: 5.1 - 5.9 GHz
- Gain: 23 dBi for extended range and strong signal
- Polarization: Plus/Minus 45 Degree slant dual linear for improved noise isolation
- Dimensions: 378 x 378 x 290 mm
- Weight: 3.4 kg with mount
- Mounting: Universal pole mount
- Wind Survivability: Up to 200 km/h (125 mph)
- Wind Loading: 190 N @ 200 km/h
- Front-to-Back Ratio: 33 dB for enhanced signal clarity
