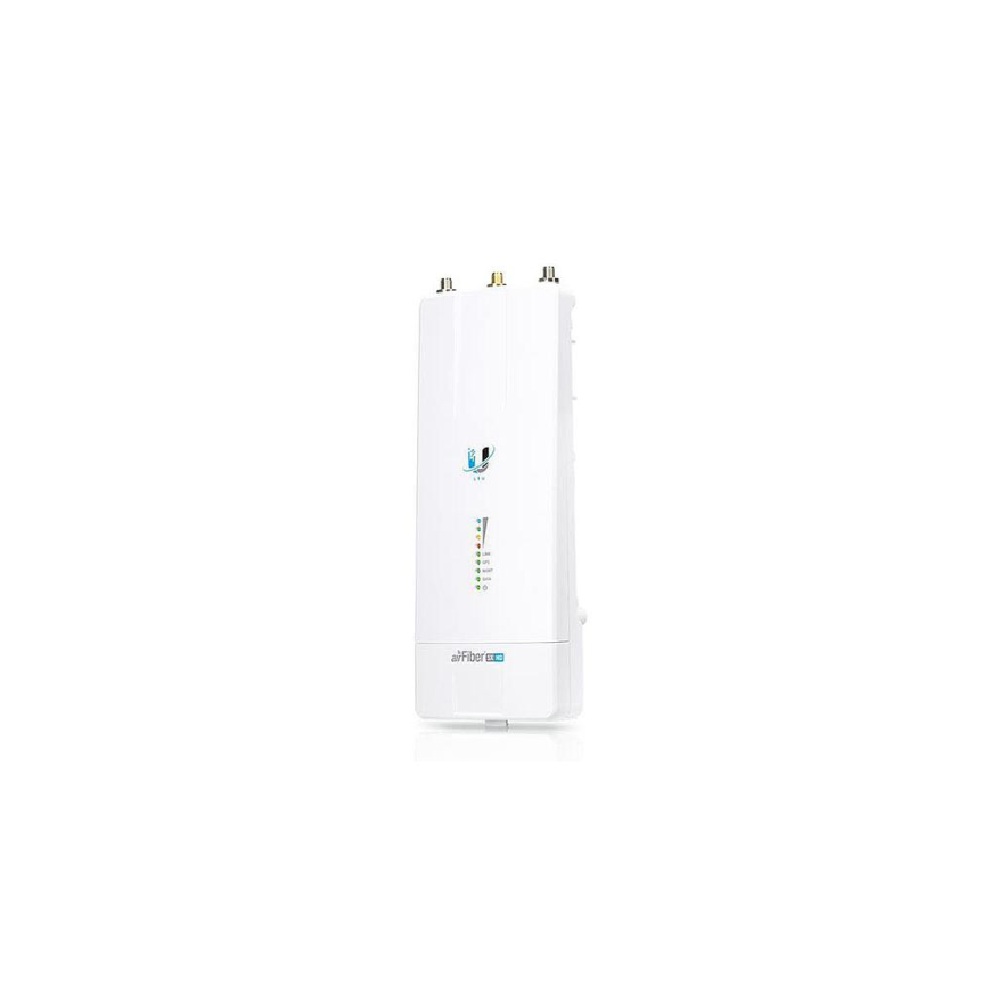

Ubiquiti AirFiber X, 5XHD, Carries Backhaul, 1Gbps, 5.1-5.8GHz
UB-AF-5XHD
AVAILABLE TO ORDER
Ubiquiti AirFiber X, 5XHD, Carries Backhaul, 1Gbps, 5.1-5.8GHz
| Warehouse | Status |
|---|---|
| Seven Hills - NSW |
AVAILABLE TO ORDER
|
| Waterloo - NSW |
AVAILABLE TO ORDER
|
| Fyshwick - ACT |
AVAILABLE TO ORDER
|
| Loganholme - QLD |
AVAILABLE TO ORDER
|
| Tulla Central Warehouse- VIC |
AVAILABLE TO ORDER
|
The Ubiquiti UB-AF-5XHD is a high-performance 5 GHz point-to-point radio designed for long-range wireless backhaul links, delivering over 1 Gbps throughput with advanced noise resilience.
- Frequency Band: 5 GHz
- Max Throughput: 1+ Gbps using LTU technology
- Range: 100+ km under optimal conditions
- RF Performance: Up to 29 dBm TX power, 100 MHz channel bandwidth
- Encryption: AES-256 for secure data transmission
- Networking Interfaces: (2) Gigabit Ethernet RJ45 ports
- Power Options: Passive PoE (24V, 1A adapter included); supports 18-54V DC
- GPS Sync: Integrated GPS for precise timing and interference mitigation
- Weatherproofing: IP67-rated with upgrade kit, suitable for harsh environments
- Mounting: Compatible with airFibre x and Rocket mounts
