*CLR* Ubiquiti Edge Switch, 5-port, Passive PoE PRO (24VDC)

UB-ES-5XP
*CLR* Ubiquiti Edge Switch, 5-port, Passive PoE PRO (24VDC)

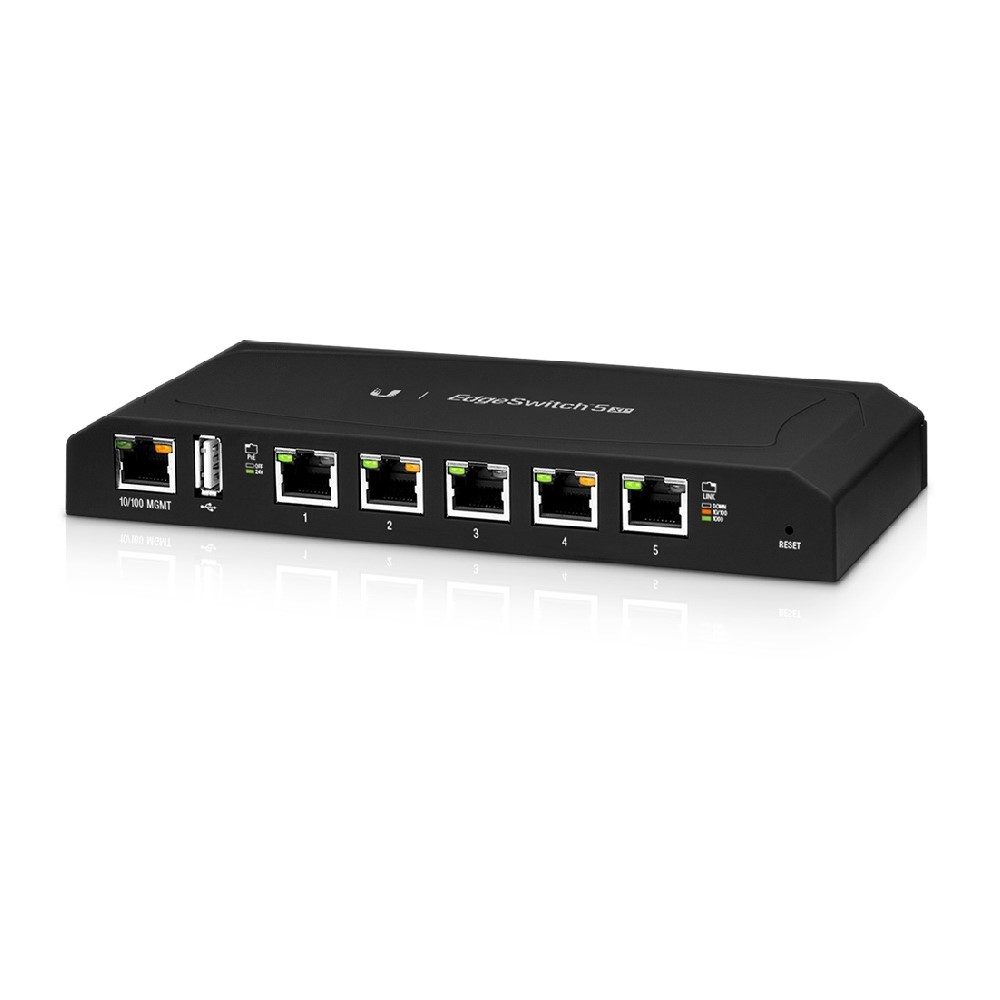

The Ubiquiti UB-ES-5XP EdgeSwitch 5XP is a 5-port Gigabit managed switch that provides 24V passive PoE on all data ports. It's part of Ubiquiti's EdgeMAX/UISP ecosystem and is widely used for powering airMAX radios, cameras, and small wireless deployments.

  • Max. power consumption: 60W
  • PoE out voltage range: 22-24VDC
  • Max. PoE wattage per data port: 11.5W
  • MIPS 24K, 400 MHz processor
  • 64MB system memory
  • 8MB code storage
  • Operating temperature: -25 to 55 degrees celsius
  • Dimensions: 197 x 87.5 x 27.3mm
  • Weight: 250g

  • All five data ports support 24V passive PoE output
  • Each port can deliver up to 11.5W
  • Web-based management UI
  • Per-port PoE control
  • VLAN and basic Layer-2 features
