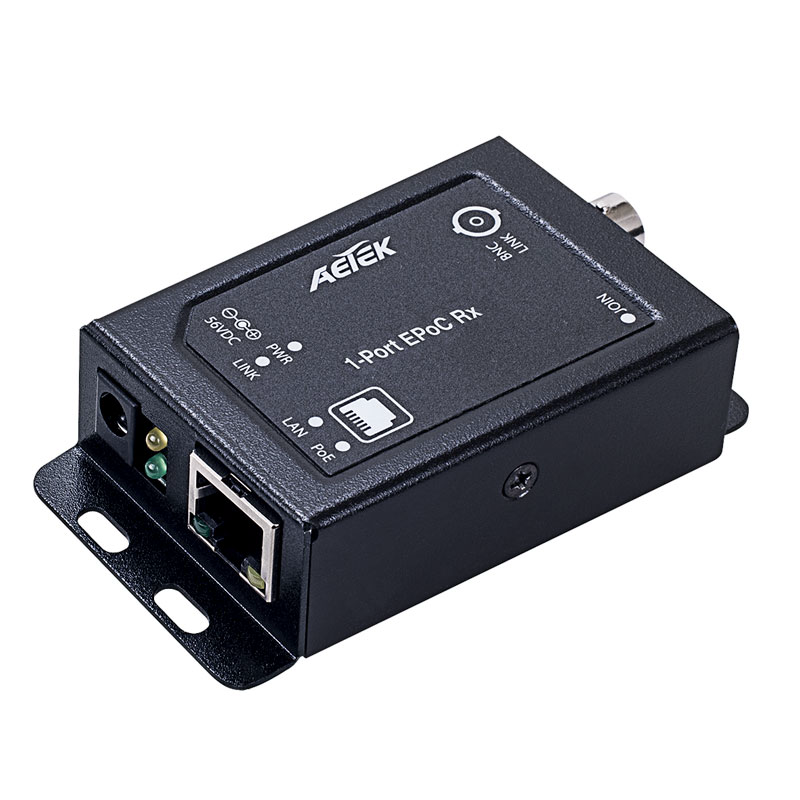

Aetek 1 Port EPoC Receiver, 1 BNC, 1 RJ45, up to 1200m, 65W PSU

The Aetek AET-XE10-110-RX is a long-reach solution providing fast ethernet and PoE over RG6 coaxial cable up to 1200m (3937ft) for any brand of PoE IP camera. This EPoC product line is also often used to upgrade legacy CCTV to IP surveillance without requiring a change to existing RG59/RG6 coaxial cable. Furthermore, this outdoor EPoC solution is a rugged and economical alternative to using optical fibre, as the power over coax to remote PoE IP camera is more convenient than an optical fibre solution which often doesn't carry power.

• One BNC coax port and one ethernet port
• Playing RX mode
• Includes 65W at 56VDC power supply
• Wall-mount installation
• PoE pass through coax to remote PoE IP camera
• Optional 19" 4-bay rack mount chassis (CH-100)

Datasheets

• AET-XExx-1x0-xX Datasheet.pdf

• Dimensions: 85.4 x 47.1 x 23mm
• Weight: 0.2kg
• Operating temperature: -20 - 60 degrees celsius
• Operating humidity: 5 - 95 per cent (non-condensing)
